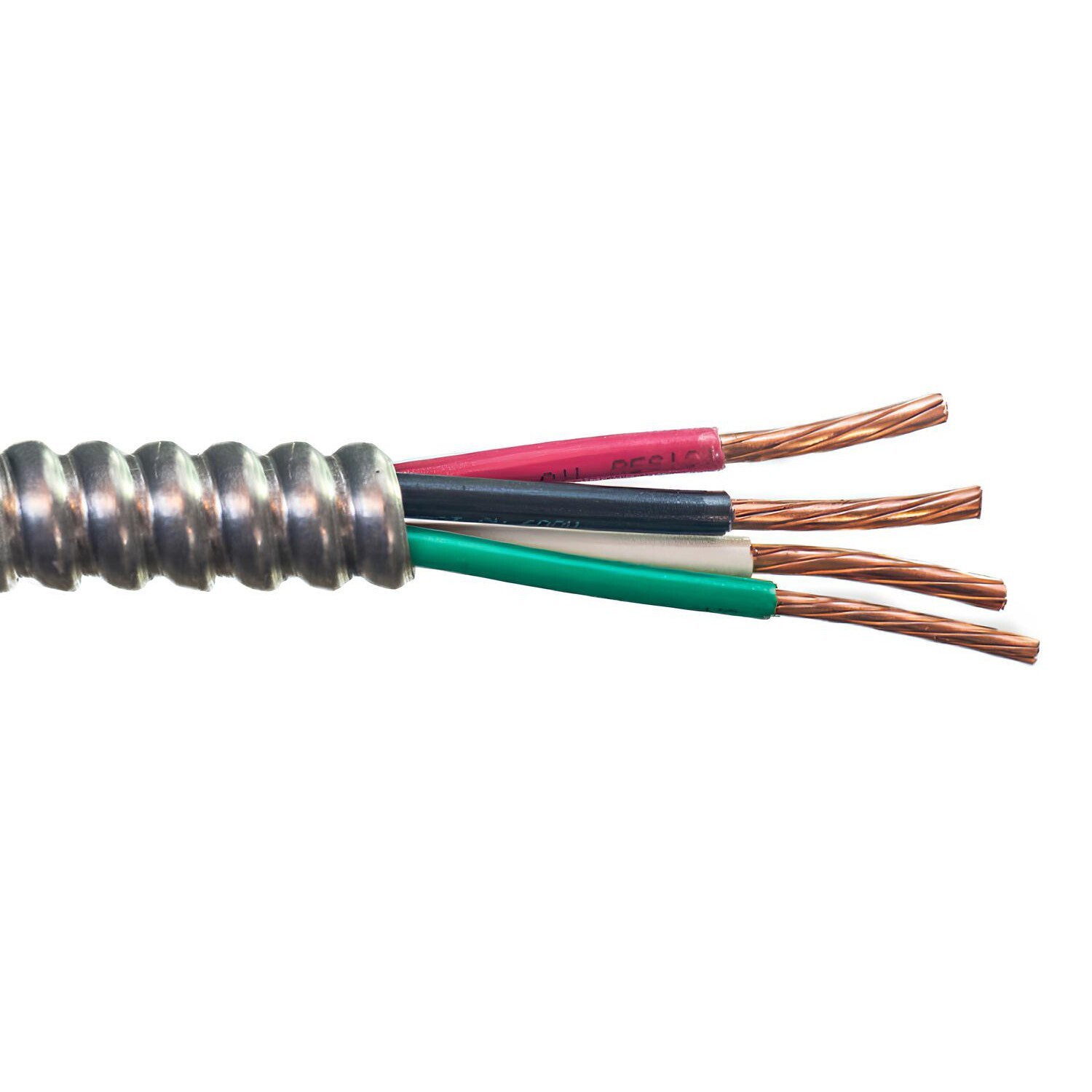

100\' 8/3 Copper Metal Clad Cable Type MC Aluminum Armor 600V Click Thumbnails to EnlargeAPPLICATION
• 8/3 Copper MC Cable is suitable for use in branch, feeder and distribution circuits in commercial, industrial, institutional and multi residential applications. MC Cable is approved for power, lighting, control and signal circuits. MC Cable can be used in cable tray and other approved raceways and can be exposed or concealed. MC Cable can be used in places of assembly of 100 people or more, such as studios and theaters. Voltage ratings should not exceed 600V in any application.
CONDUCTOR
• Stranded Soft Drawn Bare Copper Conductor
INSULATION
• Polyvinyl Chloride (PVC)/Nylon rated THHN/THWN and an insulated green ground conductor are cabled together with a Mylar tape.
ARMOR
• Overall Aluminum Interlocked Armor applied over theassembly.
STANDARDS
• UL Standards 83, 1569, 1581 & 2556
• IEEE 1202 vertical tray flame test, 70,000 BTU/hr
• ASTM B3, B258
• NEC Articles 300.22, 330, 518.4, 520.5, 530, 545.4 & 645
• Class I Div. 2, Class II Div. 2 and Class III Div. 1 Div. 2 forhazardous locations
• Federal Specification A-A59544
• Temperature rating is 90°C dry
PRODUCT SPECIFICATIONSSize AWG 8Number of Conductors 3Ground Wire Size10OverallDiameter (inches)0.752Weight (Lbs/1000ft) 310
HAVE A LARGE ORDER OVER $5000? ASK US IF WE CAN DO BETTER ON THE PRICE.
CUT TO LENGTH
Looking for Custom Length? Please feel free to contact us, We can do all cut to lengths.
OTHER VALUE ADDED SERVICES
• Expedited Shipping
• Cut to Length Paralleling
• Color Striping & Dyeing
• Reel Lagging
• Special Labeling & Packages
Shipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note \'s delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
About Nassau National Cable
(disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only)
We have been in business for over 60 years and are family owned and operated. We have been on the inc 5000 in 2014, 2015, and 2016 as one of the fastest growing privately owned companies. We look forward to serving you.
