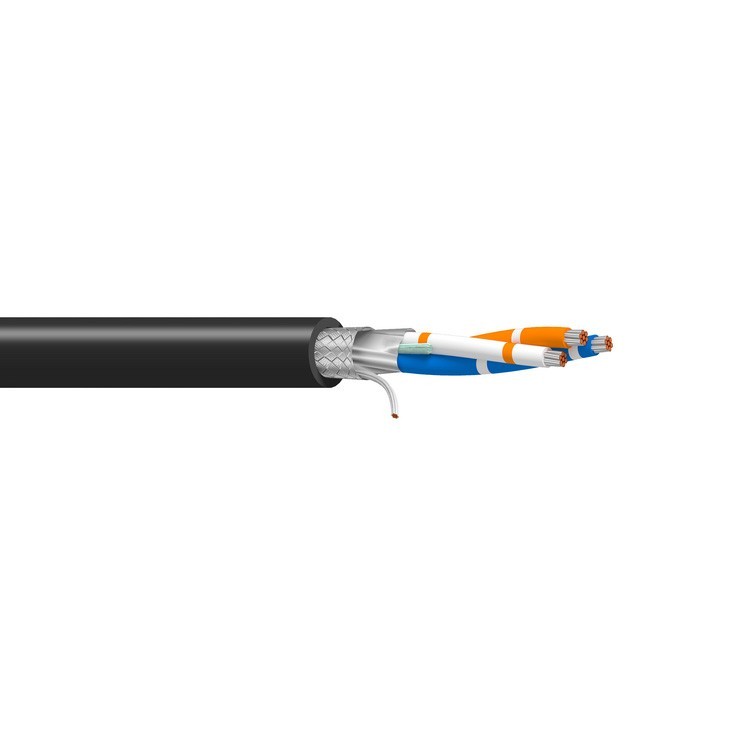

100' Belden 3106A 22 AWG 1 Pair + 22 AWG 1C Shielded RS-485 Computer Cable 300V Click Thumbnails to EnlargeDESCRIPTION
• Belden 3106A 22 AWG 1 Pair Tinned Copper Datalene insulation with Foil Shield, 22 AWG1 Conductor, PVC Insulated, Overall 65% Tinned Copper Braid, PVC jacket, CM, PLTC Cable
APPLICATION
• Harsh Environment,IIoT
• Factory or Process Automation
• Video, Audio, Data Communication
CONDUCTOR
• Tinned Copper
INSULATION
• Polyethylene (PE)
OUTER SHIELD
• Material: Bi-Laminate (Alum+Poly)
OUTER JACKET
• Polyvinyl Chloride (PVC)
STANDARDS
• Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance
• Flammability / Reaction to Fire: UL 1685 UL Loading, IEC 60332-1-2
• CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
• NEC / UL Compliance: Article 725, Article 800, CM, PLTC
• CEC / C(UL) Compliance: CM
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
PRODUCT SPECIFICATIONSSize AWG 22Number of Pairs 1Number of Strands 7Drainwire Size22 AWGSize AWG22Number of Conductor1Jacket Thickness (inch)0.047Overall Diameter (inch)0.310Weight (lbs/1000ft)48
