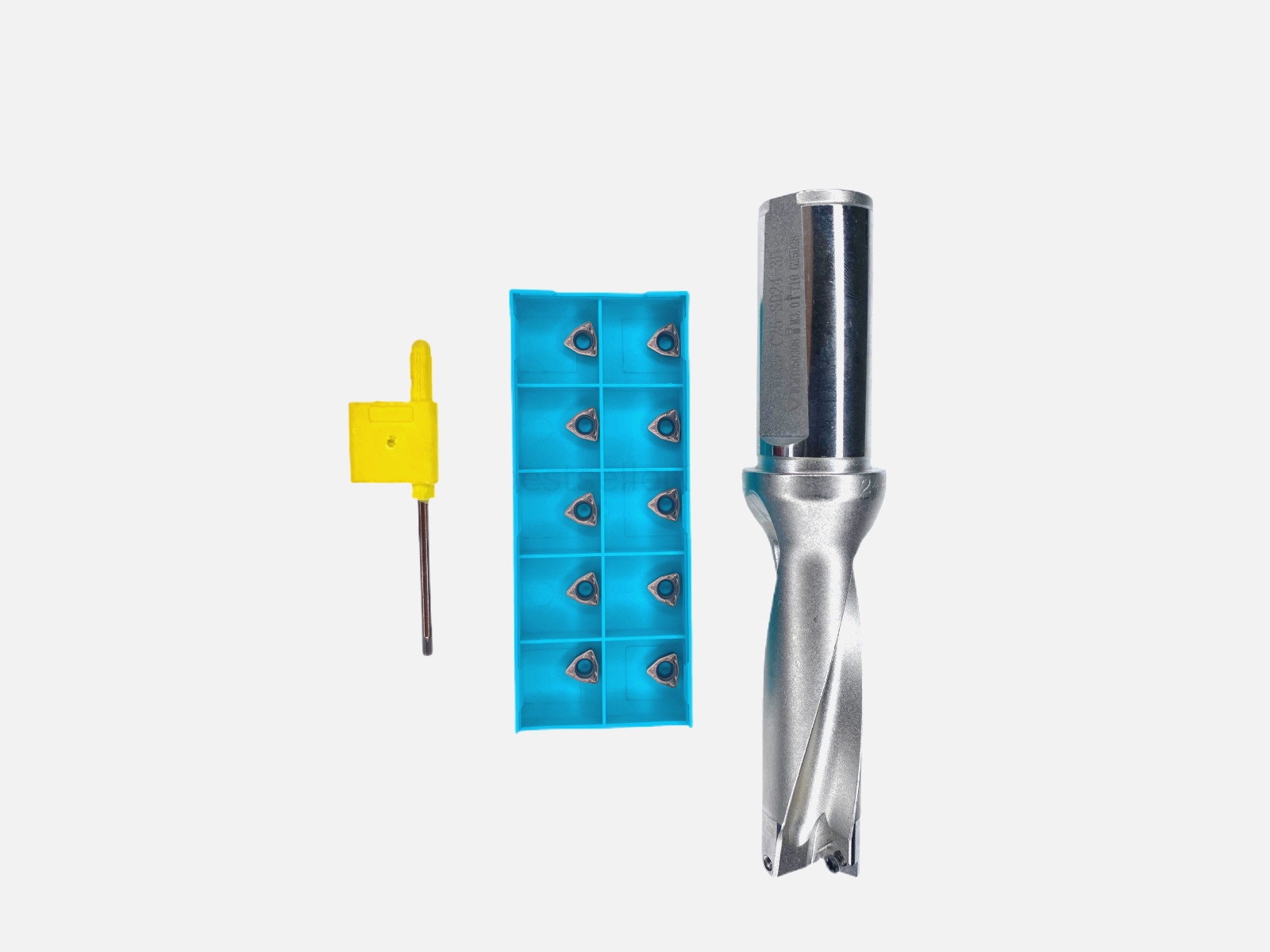

WPD240 C25-3D U drill / indexable drill / 24mm， Φ24-3D / C25-3D Internal cold drill Head Diameter=24mmmachining length；24*3=72mm cutter handle size；25mmapply insert; WCMX04Matching handle:BT40 SLN25-75LBT40 SLN25-100LBT50 SLN25-105L
Excellent quality, precision and rigidity is very thick, durable! (this product is beyond a lot of the international line tool rod quality)
Hit bottom hole formation of SP
WC processing faster
Model (example C32 - SD31-35.5-3 times the size)
C32 represents hilt - SD31 outside diameter 35.5 31 32 33-32.5 31.5 35.5
Three times the size - 3D U drill length (handle), U drill diameter X3
Such as customer need 30 mm U drill processing is 80 mm in depth then select 30-3 d 30 x3 = 90 mm all specifications and so on!
Buyers note: U drill for rough machining tools General type hole diameter plus or minus 0.2 belong to the normal range
Handle size: 14-24.5 range to 25 handle
25-42.5 range to 32 handle
Range of 40 handle. 43-65
U drill with the blade type:
SD14 - SD20: WCMT030208FN ACZ330 screw: M2.5 * 6.5 wrench: T8
SD21 - SD24: WCMT040208FN ACZ330 screw: M2.5 * 6.5 wrench: T8
SD25 - SD30: WCMT050308FN ACZ330 screw: M3 * 7 wrench: T8
SD31 - SD41: WCMT06T308FN ACZ330 screw: M3.5 * 8 wrench: T15
SD42 - SD60: WCMT080412FN ACZ330 screw: M4 * 10 wrench: T15
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
SP series the diamond blade
SP13-15 with -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- SPMG050204 T6
SP15.5 21.5 with -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- SPMG060204 T6
22-24.5 with SP -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- SPMG07T308 T8
SP25 33.5 with -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- SPMG090408 T15
