SpecificationMaterial: Q235 SteelAssembly Required: YesElectric Winch Voltage: 12VWinch Rope Length: 7.5m/24.6ftBattery Model: 1 * AA Battery(Not Included) Electric Winch Capacity: 1587kg/3500lbLifting Arm Bearing Capacity: 100kg/220lb; 250kg/550lb; 500kg/1100lb Cable Length: 1.3m/4.27ftLifting Arm Height Adjustment Range: 0°-20°-40° Arm Length Adjustment Range: 1.1m/3.61ft; 1.325m/4.35ft; 1.5m/4.92ftBase Rotation Angle: 360 °Net Weight: 34.7kg/76.5lb Pole Height: 1.05m/3.45ft Base Size: 24*24cm/9.45*9.45inInstallation Hole Diameter: 17mm/0.67inPackage Included1*Truck-Mounted Crane Hoist1*Electric Winch
1100lbs Truck-Mounted Base Crane Hoist Lift Pickup with 12V Electric Winch style=\"text-align: left; margin: 0pt 0pt 0.0001pt; font-family: Calibri; font-size: 10.5pt;\">
Application
It is mounted on a truck to lift generators, engines, compressors, wood, shop equipment, etc. It is suitable for the construction industry, forestry industry, and more.
Specification
Material: Q235 Steel
Color: Orange
Surface Treatment: Polishing and Painting Processes
Assembly Required: Yes
Number of Items: 1
Electric Winch Voltage: 12V
Winch Rope Length: 7.5m/24.6ft
Battery Model: 1 * AA Battery(Not Included)
Electric Winch Capacity: 1587kg/3500lb
Lifting Arm Bearing Capacity: 100kg/220lb; 250kg/550lb; 500kg/1100lb
Cable Length: 1.3m/4.27ft
Lifting Arm Height Adjustment Range: 0°-20°-40°
Lifting Arm Length Adjustment Range: 1.1m/3.61ft; 1.325m/4.35ft; 1.5m/4.92ft
Base Rotation Angle: 360 °
Gross Weight: 43.2kg/95.2lb
Net Weight: 34.7kg/76.5lb
Support Pole Height: 1.05m/3.45ft
Base Size: 24*24cm/9.45*9.45in
Installation Hole Diameter: 17mm/0.67in
Product Size(L&H): 1.14*1.05-2.1m/3.74*3.45-6.89ft
Package Size: 124*32.5*28.5cm/48.82*12.79*11.22in
Package Included
1*Truck-Mounted Crane Hoist
1*Electric Winch
All Accessories Required for Installation
Description
This truck-mounted crane hoist handles up to 1100lbs, making it an exceptional helper for heavy lifting. With adjustable height and arm length, it eases work pressure and boosts efficiency, simplifying tasks like lifting engines, tables, wood, or shop equipment. This is a valuable tool for a wide range of heavy-duty lifting needs.
Key Features
Build to Last:This product uses Q235 steel and polishing and painting processes, making it wear-resistant, corrosion-resistant,rustproof, and has a long service life.

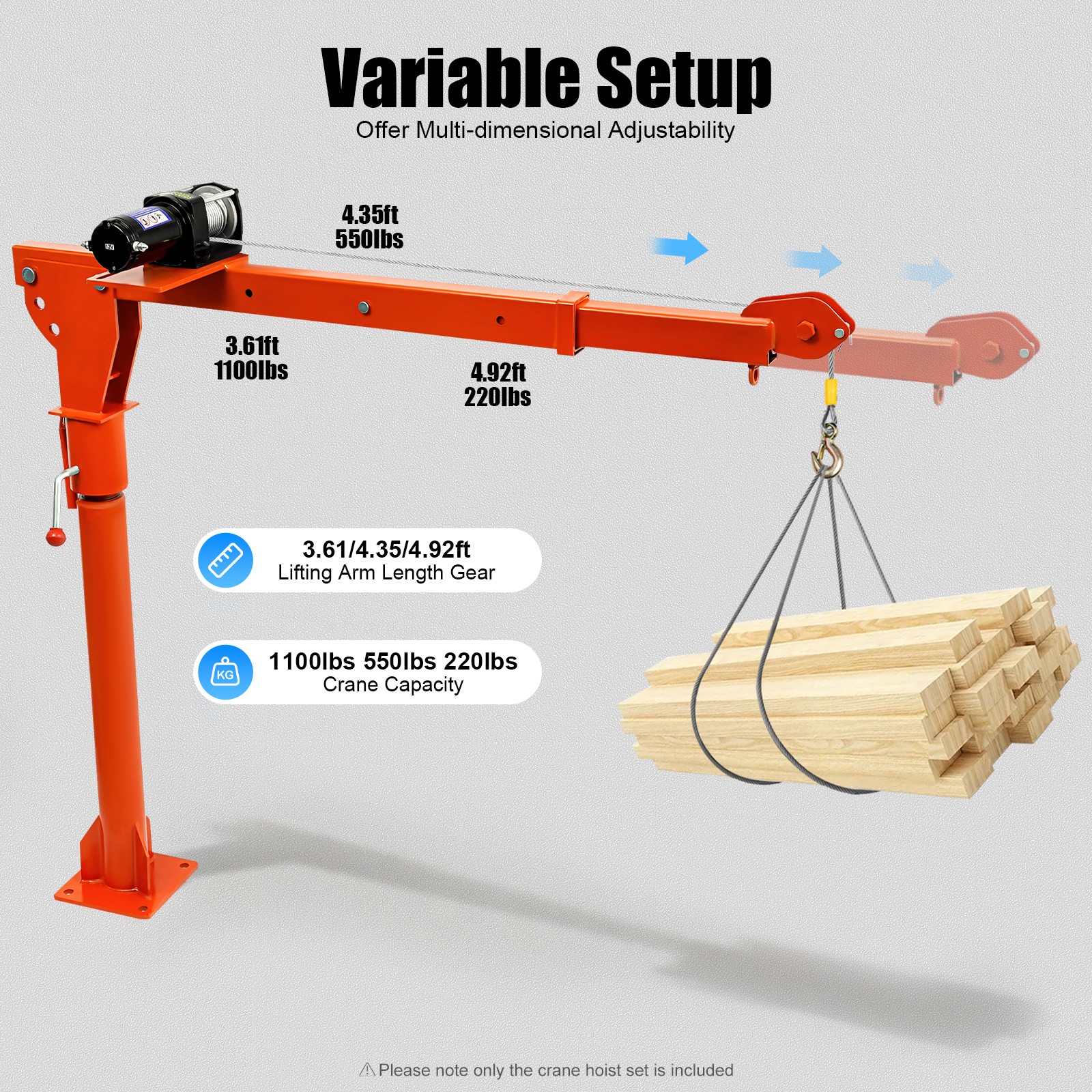

Adjustable Design: You can adjust the lifting arm length at 3.61/4.35/4.92ft and angle at 0°/20°/40° and the crane height from 3.45-6.89ft to meet your different construction environments and usage needs. The 360° rotatable base also brings more convenience during the lifting process.
Solid & Sound:This truck-mounted crane hoist has a stable structure, featuring a large square base (9.45 inches long) with four screw-reinforced installation holes. This design ensures strong stability, so you won’t need to worry about shaking or collapsing during use.
Designed to Load:This truck-mounted crane has a max load capacity of 1100 lbs, and its electric winch supports up to 3500 lbs. You can use it with confidence to lift heavy items like engines, tables, and shop equipment.
EffortlessCleaning: The smooth surface after a painting treatment finish allows you to simply clean this product with a wet cloth.
Simple Assembly and Disassembly: The complete accessories and pre-drilled holes allow you to assemble this product easily and start to use it in a short time. You can also easily dismantle it for space-saving and convenient storage when not in use.
Protective Package: The anti-collisionbubble cotton can effectively avoid the loss caused by normal vibration and collision during transportation and ensure that you can receive intact products to a certain extent.
Details
Durable Hook: Made of alloy steel, it is durable and helps to hang goods without falling off easily.
Heavy-Pull Winch Rope: It comes with a 24.6ft wire rope, which covers your basic lifting needs.
Steering Handle:It plays a turning function, allowing for convenient operation.
Wire Rope Limit Pin:It ensures that the steel wire rope does not exceed its maximum tension range to avoid accidents such as breakage of the steel wire rope due to exceeding its load-bearing capacity during movement.
Notes
- Please read the label carefully before using it. Please stay away from the area around the wire rope and drum.
- Please pull out the rope in the direction of the arrow. Please do not use it for overloaded lifting or moving personnel.
- Please take a 10-minute break after 30 minutes of continuous work. Please turn off the power switch when not in use.
- Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
