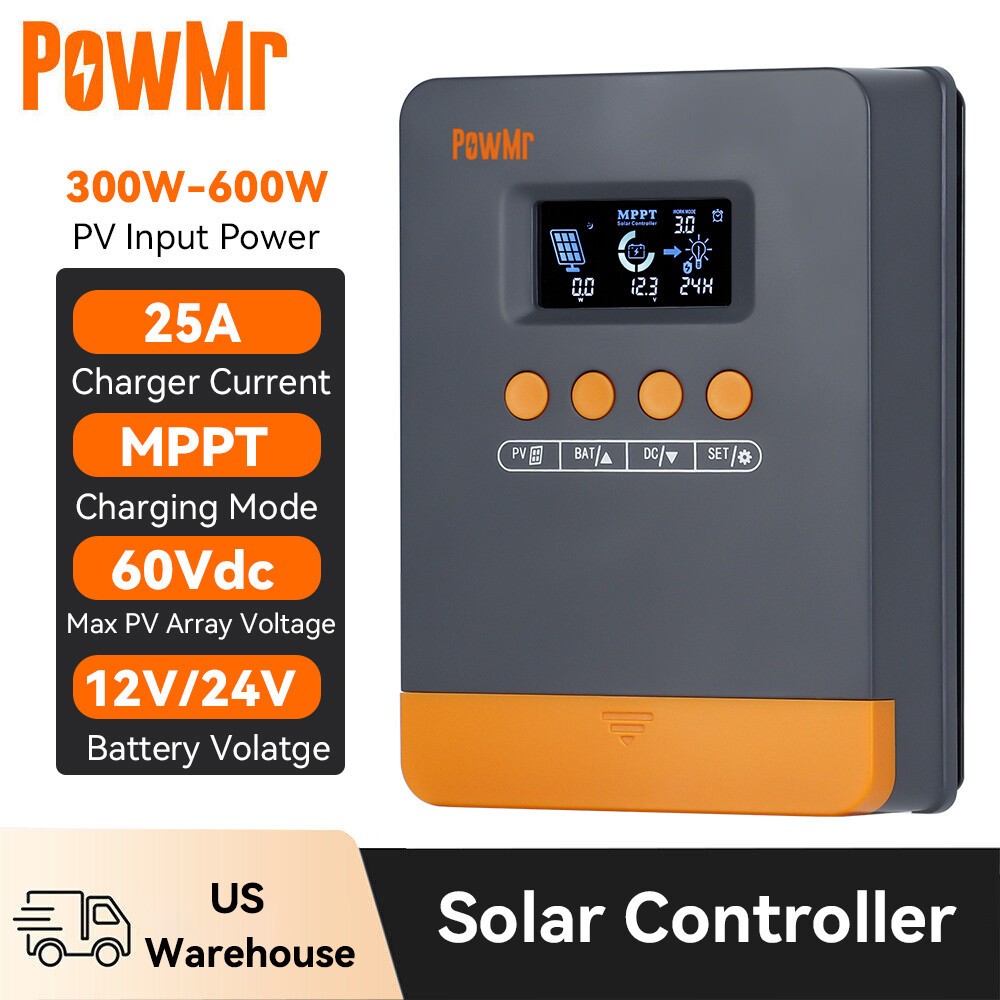

12V/24V/48V 25/45A/60A/100A MPPT Solar Charge Controller Panel Battery Regulator For Sale

Full coverage for 1 years—we replace faulty units 100% free. Buy with total confidence!

Our support team is available around the clock. Get 1-on-1 guidance for installation, troubleshooting, and setup!

Not satisfied? Send it back for free (we cover return shipping). Refunds processed within 3 business days—no hassle, no questions asked.

POWMR 60Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 98.1%.

Advantages:

• 【60A MPPT charging controller】3-stage battery charging algorithm for a rapid, efficient, safe charging(Bulk Charge, Boost Charge, Float Charge, and Equalization), 60amp Rate Charging current.
  【Controller wide range solar voltage/power support】Controller supports High PV Input Power/voltage. The controller can accept Solar voltage up to 190V. When battery is 12V system: Suggest Solar power 720W, suggest range:DC20V~DC80V；1440W 105V when 24V; 2100W 150 when 36V; 2800W 150v when 48V.
  【12V/24V/36V/48V battery support】Negative grounding design controller safer, controller Compatible with a variety of batteries(lead-acid and lithium, User customize); Sealed, Gel, Flooded and LI (LFP) battery charging parameter pre-set, other battery can be customize charging parameter according to your need.
  【Full charging pro tections】Short Circuit/Overcurrent/Reverse Polarity, etc. protections; a Very detailed LCD screen and 4 buttons make this solar controller very simple to use. And detailed troubleshooting list, Fast service support, and Simple and detailed wiring instruction are available.
• 【Supports up to 12 Units in Parallel 】The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel operation guidelines, refer to Section 7
• 【Lithium battery activation 】 Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally, when connected lithium batteries are in a protected state, the controller will activate the lithium batteries with the energy from the solar panels, with current not exceeding the lithium battery protection voltage and current range. Warning: Do not charge lithium batteries when the temperature is below 0°C.

Feature:

- M6-PRO Support One-Click Factory Reset

- Lithium Battery Activation

- Supports parallel connection of 12 units.

- 99.99% MPPT technology
- 0 Layer, easy installation, easy setup
- Built-in DSP controller with high performance
- Automatic switch for 12V/24V/36V/48V battery bank
- 3-stage charging optimizes battery performance
- Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
- Over-temperature protection
- Troubleshooting promotion function.
- Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc
- Easy to be mounted

Package Includes

1 x 60A MPPT Solar Charge Controller

1 x English User Manual

1 x Parallel Communication Cable

• 【0 Layer MPPT charge controller】Easy to know mppt charge controller's working state and process in one glance. Technical Specifications: Max PV Input: 300W, for 12V Battery; Max PV Input: 600W, for 24V Battery; Max. PV Open-Circuit Voltage <60V. 3-stage battery charging algorithm for a rapid, efficient , safe charging
• 【Compatible with Multiple Type Batteries】25a solar charge controller Compatible with various 12V and 24V batteries, including lead-acid (Sealed, Gel, Flooded) and lithium (LiFePO4, Lithium-Ion) types. The negative grounding design enhances safety, with customizable settings for absorption voltage, float voltage, low voltage cutoff, and load timer
• 【Comprehensive Protection】Equipped with protections against short circuits, overcurrent, and reverse polarity. Its die-cast aluminum construction provides excellent heat dissipation and reduced power consumption. A clear LCD screen with four buttons ensures easy operation, supported by detailed wiring instructions and responsive customer service
• 【Enhanced Protection and Lithium Battery Compatibility】The solar controller provides comprehensive protection against various faults, including overcurrent, short circuit, reversed polarity, overvoltage, over-discharge, and over-temperature. It enhances precision in battery temperature monitoring through an external temperature probe configuration. The system is compatible with lithium batteries and adjusts charging cycles accordingly. It also activates lithium batteries with solar panel energy, with precautions to prevent overcharging, avoid charging lithium batterie below 0°C
• 【Advanced MPPT Technology】MPPT Charge Controller features advanced Maximum Power Point Tracking (MPPT) technology with up to 98% tracking efficiency and 97% peak conversion efficiency, maximizing solar panel output and enhancing charging Charging Presets The integrated charging modes include adaptive charging logic, making them suitable for most battery types, such as flooded lead-acid, sealed gel, and lithium batteries. Specific charging parameters for each battery type can be found in section 3.7.⚫ Flexible Application Compatible with 12V/24V system voltages.⚫ 25A/35A/45A Charging Controllers Available in 25A, 35A, and 45A charging current options to meet the needs of various solar energy storage systems.⚫ Multi-Stage Charging Algorithm The multi-stage charging algorithm is designed to optimize each charging cycle, maintaining battery charge through preset charging parameters for specific stages once the battery is fully charged.⚫ Maximum Power Point Tracking Technology MPPT technology tracks the maximum power point voltage (Vmp) of the array, which varies with weather conditions, ensuring maximum power is collected from the array throughout the day.⚫ Efficient Charging Innovative MPPT technology with tracking efficiency up to 99.9% and peak conversion efficiency up to 97%, reducing power consumption, heat generation, and operating temperature.⚫Adaptive Boost Charging During initial charging, adaptive boost charging monitors the battery's response and automatically determines the appropriate boost stage duration for each independent charging cycle. This ensures the battery is fully charged at any discharge level or capacity, avoiding overcharging during the boost stage, thereby extending battery life.⚫ Durable and Safe a. Overcurrent protection for PV input b. PV array short circuit protection c. PV reverse polarity protection d. Battery overvoltage protection e. Battery over-discharge protection f. Over-temperature protection⚫ Accurate Battery Temperature Monitoring When the battery temperature exceeds 80℃, temperature compensation is automatically performed, reducing charging power to protect the battery.⚫ Lithium Battery Activation Compatible with lithium batteries, the charging cycle will adapt when the battery type parameter is set to lithium. If the connected lithium battery is in protection mode, the controller will activate the lithium battery using energy from the solar panels, with current not exceeding the lithium battery protection voltage and protection current range. Warning: Do not charge lithium batteries when their temperature is below 0℃. Battery over-discharge protection

  NOTE: The controller will start PWM function at high voltage disconnection (HVD) voltage point, which limited voltage rising to protect PV Open-Circuit Voltage100VMax.InputPower:
  For 12VSystem
  For 12V System
  For TechnologyMPPTCharging Algorithm3 StagesNominal System Voltage12V24VBattery Voitage Range9-30VRatedCharging Ourrent25A35A45AComversion Efficiencys98%Max.Power Point Range-35℃~+45℃Humidity TYPE 3: 80A MPPT ORANGE(Parallel 12 pcs)

  • 【Update 1 - Supports up to 12 units in parallel】This solar controller supports single unit standalone use as well as parallel use of multiple units. The parallel function makes it easy to expand the number of solar panel configurations and the upper limit of storage battery capacity of a solar system, thereby increasing the scale of energy storage.
  • 【Update2 - Multi-stage charge algorithm】There are 3 integrated charge modes (Bulk charge, Boost charge, Float charge). With the three-stage battery charging mode, the system can effectively optimize the charging cycle, and at the same time, it also has an adaptive boost charging function to avoid charging overtime and effectively extend the battery life.
  • 【Efficient 80A MPPT Solar Charge Controller】The 80A mppt solar charge controller is compatible with 12V/24V/36V/48V system voltages and features innovative MPPT (Maximum Power Point Tracking) technology with tracking efficiencies up to 99% and peak conversion efficiencies up to 97%.
  • 【Wide Range Voltage/Powe Support】80A Solar Controller supports High PV Input Power/Voltage. The charger controller can accept solar voltage up to 160V. When the battery is a 12V system, the recommended maximum PV input power is 960W; For a 24V system, the Max. is 1920W; For a 36V system, the Max. is 2880W; For a 48V system, Max. is 3840W.
  • 【Support various types of batteries】Compatible with many types of 12/24/36/48V batteries, such as Lead-acid batteries, Sealed batteries, Gel batteries, AGM batteries, Flooded batteries, Lithium batteries, and User-defined, easy switching by the control system. When the Battery Type parameter is set to Lithium Battery, there is also a lithium activation function.
  • 【Full battery charging protection】Built-in PV array short-circuit protection, PV input over-current protection, load short-circuit protection, PV polarity reversal protection, battery polarity reversal protection, over-temperature protection, and many other battery protection functions make it safer to use.

  Feature:

  * MPPT 80A solar charge controller.

  * Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 97%.

  * Supports Up to 12 Units in Parallel.

  * Built-in DSP controller with high performance.

  * Automatic switch for 12V/24V/36V/48V battery bank.

  * 3-stage charging optimizes battery performance.

  * Overcharge protection, Input PV polarity reverse protection, Output limited current protection.

  * Over-temperature protection.

  * Troubleshooting promotion function.

  * Built-in cooling fan for forced heat dissipation, improving overall device operational efficiency.

  * Easy to be mounted.

  Specification:

  Models

  POW-M80-PRO

  Solar Input Specification

  Maximum Input Power / Max. Solar Array Open-Circuit Voltage

  For 12V System

  960W / 20V~80V

  For 24V System

  1920W / 37V~105V

  For 36V System

  2880W / 50V~160V

  For 48V System

  3840W / 72V~160V

  Battery Charging Specification

  Charging Technology

  MPPT

  Charging Algorithm

  3 Stages

  Charging Algorithm

  12V/24V/36V/48V

  Battery Voltage Range

  9~60V

  Rated Charging Current

  80A

  Maximum Efficiency

  ≤98%

  MPPT Efficiency

  >99%

  Temperature Compensation

  Self-Consumption

  44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V

  Environment Specification

  Operating Temperature Range

  -35°C~+45°C

  Humidity Range

  ≤95%，Non-condensing

  Altitude

  <3000m

  General Specification

  Protection Level

  IP32

  Dimensions

  260x180x75mm

  Net Weight

  Battery must be connected first. NEVER connect the solar panel array to the controller without a battery.

• Ensure input voltage does not exceed 190 VDC to prevent permanent damage.
• Do NOT let the positive (+) and negative (-) terminals of the battery touch each other.
• Do NOT connect any inverters or battery charger into the load terminal of the charge controller.
• Place the controller on a vertical surface protected from direct sunlight, high temperatures, and water. Make sure there is good ventilation.
• Please check for Clearance, verify that there is sufficient room to run wires, as well as clearance above and below the controller for ventilation. The clearance should be at least 3 inches (75mm).

Feature:

* MPPT 100A solar charge controller.

* Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 97%.

* Supports Up to 12 Units in Parallel.

* Built-in DSP controller with high performance.

* Automatic switch for 12V/24V/36V/48V battery bank.

* 3-stage charging optimizes battery performance.

* Overcharge protection, Input PV polarity reverse protection, Output limited current protection.

* Over-temperature protection.

* Troubleshooting promotion function.

* Built-in cooling fan for forced heat dissipation, improving overall device operational efficiency.

* Easy to be mounted.

Specification:

Models

POW-M100-PRO

Solar Input Specification

Maximum Input Power/ Max. Solar Array Open-Circuit Voltage :

For 12V Battery System

1200W / 20V~80V

For 24V Battery System

2400W / 37V~105V

For 36V Battery System

3600W/ 50V~160V

For 48V Battery System

4800W/ 70V~160V

Battery Charging Specification

Charging Technology

MPPT

Charging Algorithm

3 Stages

Charging Algorithm

12V/24V/36V/48V

Battery Voltage Range

9~60V

Rated Charging Current

100A

Maximum Efficiency

≤98%

MPPT Efficiency

>99%

Temperature Compensation

Self-Consumption

44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V

Environment Specification

Operating Temperature Range

-35°C~+45°C

Humidity Range

≤95%，Non-condensing

Altitude

<3000m

General Specification

Protection Level

IP32

Dimensions

260x180x75mm

Net Weight

Battery must be connected first. NEVER connect the solar panel array to the controller without a battery.

• Ensure input voltage does not exceed 190 VDC to prevent permanent damage.
• Do NOT let the positive (+) and negative (-) terminals of the battery touch each other.
• Do NOT connect any inverters or battery charger into the load terminal of the charge controller.
• Place the controller on a vertical surface protected from direct sunlight, high temperatures, and water. Make sure there is good ventilation.
• Please check for Clearance, verify that there is sufficient room to run wires, as well as clearance above and below the controller for ventilation. The clearance should be at least 3 inches (75mm).
