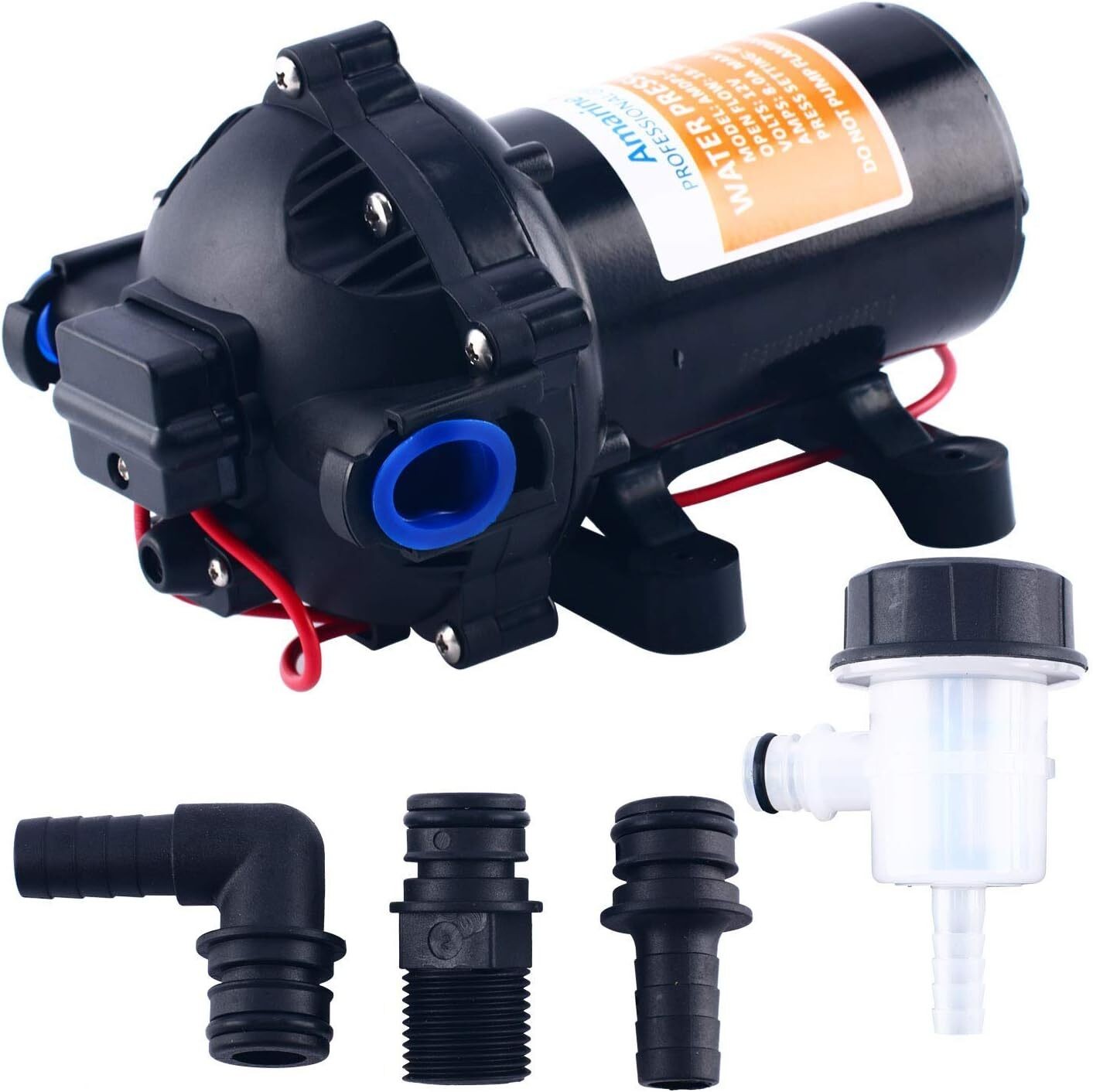

Specifications For
a) Motor Voltage: 12/24V DC
b) Max Flow rate: 18.9lpm (5.0gpm)
c) Max Pressure: 60psi (4.2bar)
d) Inlet strainer for your choice. Inlet/Outlet fitting: 13mm pyramid hose barb, 1/2 NPT thread fitting for your choice.
e) Protection: pressure switch protection: pressure-off protection or circumfluence switch protection. For the powered control you can choose pump without pressure protection.
f) Duty Cycle: Intermittent (under different pressure the continuous working time will also be different)
Why choose us
* Amarine-made DC Diaphragm pump is specially made for RV/MARINE Yachts and any other pressurization system.
* All Amarine-made pumps have been strictly tested and inspected by QC department to make sure proper operation.
* The patented design delivers smooth,consistent flow at all ranges of operation, while drawing low current.
* The balanced motor design incorporates precision ball bearings for long life, motor is equipped with an integral thermal breaker.
* All marine duty pumps have sealed switches and are finished with a Electro Coating to inhibit corrosion.
* Marine duty fresh water pumps are enclosed to prevent incidental moisture from entering and when installed correctly, Marine Duty Fresh Water Pumps provide years of quiet operation.
* Amarine-made pump in combination with a low backpressure water system can exceed all expectations.
