12V DC 16A ZH2012A Mini R134a BLDC Refrigeration Compressor FOC Lab Cooling DIY For Sale

12V DC 16A ZH2012A Mini R134a BLDC Refrigeration Compressor FOC Lab Cooling DIYProduct Description12V DC 16A ZH2012A Mini R134a BLDC Refrigeration Compressor FOC Lab Cooling DIYPackage Included

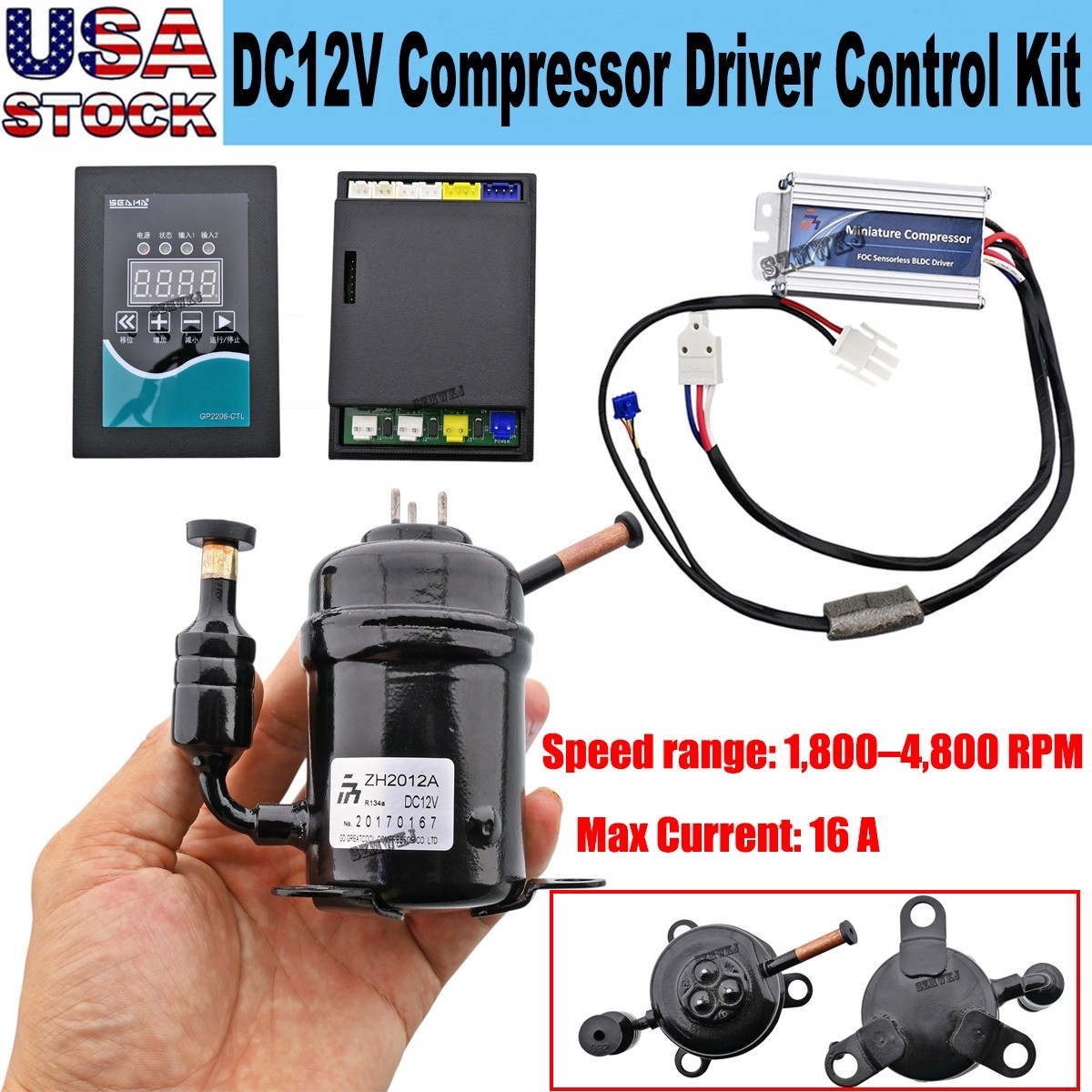

* 1 × GREATCOOL ZH2012A hermetic miniature compressor* 1 × GP1212C variable-speed BLDC compressor driver* 1 × GE2206-CPCtl compressor control board* Wiring and accessories: please refer to the actual package contents shown in the listing photos.Product Description

GREATCOOL 12V Variable-Speed Miniature Refrigeration Compressor Kit

This kit combines a hermetic 12V DC rotary compressor, a dedicated variable-speed compressor driver, and a programmable compressor control board for building compact custom refrigeration and cooling systems.

Key Specifications

Compressor

· Refrigerant: R134a

· Compressor type: Hermetic rotary compressor

· Rated voltage: 12 VDC

· Speed range: 1,800–4,800 RPM

· Displacement: 1.9 cm³/rev

· Maximum current: 16 A

· Motor: Brushless DC (BLDC)

· Lubricant / oil charge: POE 68 / 40 mL

· Cooling method: Forced-air cooling

Compressor Driver

· Model: GP1212C

· Rated input: 12 VDC

· Input voltage range: 8–16 VDC

· Maximum input current: 17 A

· Maximum input power: 180 W

· Speed range: 1,800–4,800 RPM

· Control method: Sinusoidal vector control

· Efficiency: >90%

· Control interface: Isolated TTL-level UART communication

· Protection: Overvoltage, software/hardware overcurrent, overtemperature, stall and phase-loss protection

· Fault recovery: Automatic restart approximately 3 minutes after a fault

Compressor Control Board

· Model: GE2206-CPCtl

· Supply voltage: 8–48 VDC (55 V maximum)

· Display: 4-digit 7-segment display

· Controls: 4 function buttons

· Temperature inputs: TP1 and TP2 NTC sensor inputs

· Outputs: 3 low-side MOSFET outputs for pump/fan loads

· Control functions: PID temperature control and manual compressor speed control

· Communication: Dual serial interfaces

· Driver parameter configuration supported

Performance Information

Compressor performance depends on operating speed and refrigeration system conditions. The published cooling-capacity, input-power and COP values are manufacturer test results under specified test conditions. Actual performance will vary with condenser temperature, evaporator temperature, airflow, expansion device, refrigerant charge and overall system design.

Typical Applications

· Custom miniature refrigeration systems

· Compact DC cooling equipment

· DIY refrigeration and thermal-management projects

· Portable or specialized cooling systems

· Engineering prototypes and experimental refrigeration systems

Important Note– Please Read Before Purchase

· This listing is for the core components of a custom refrigeration system. It is not a complete plug-and-play refrigeration appliance.

· A complete refrigeration system may also require an evaporator, condenser, expansion device or capillary tube, refrigerant tubing, refrigerant charge, power supply, fans, fittings and other components appropriate to the application.

· The compressor and driver are designed to work as a matched set. Do not substitute an incompatible compressor or driver without verifying electrical and communication compatibility.

· The compressor driver uses TTL-level UART communication. It is not an RS-232 interface.

· The compressor driver requires an appropriate DC power supply capable of supplying the required current.

· Follow the wiring, operating limits, protection requirements and installation instructions in the supplied technical documentation.

· Performance specifications are test results under specified conditions and are not guaranteed values for every refrigeration system.
