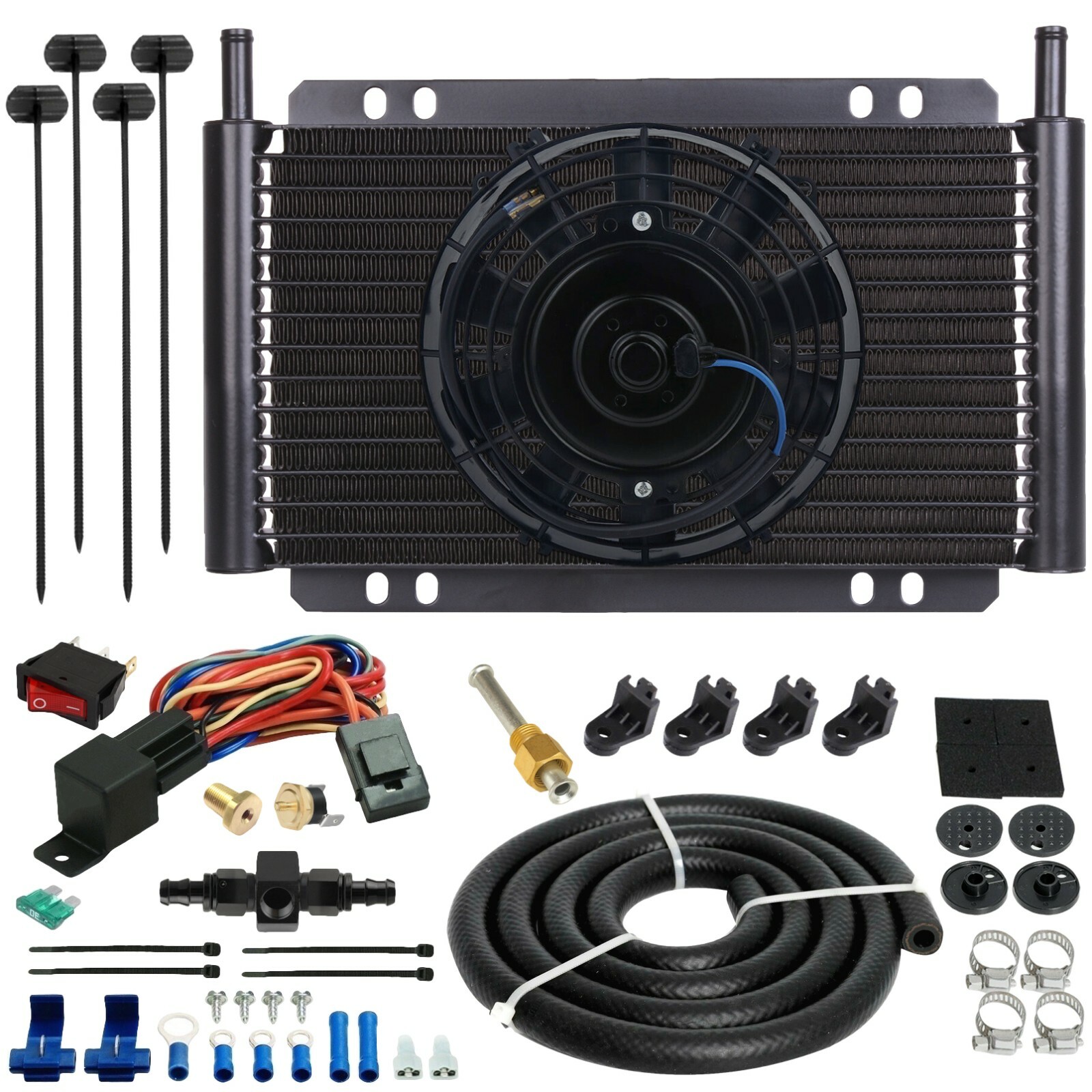

15 ROW ENGINE TRANSMISSION OIL COOLER FAN 6AN IN-LINE 180F THERMOSTAT SWITCH KIT For Sale

• Universal 15 row plate and fin aluminum lightduty transmission cooler kit.
• Extend transmission life by helping prevent heat-related transmission failures.
• Perfect for light to medium duty truck, car or RV use and occasional towing.
• 7/8" wide plates, 3/4" embossed turbulators which maximizes heat transfer.
• Dimensions: 0.75" x 7.5" x 11" with 3/8" hose barb inlets, GVW 18000 lbs.

Electric Fan:

• Universal 12 volt high performance 6" inch small electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as an air puller to be on the inside and pull air through.
• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 7.2" x 7" x 2.4" thickness at center and slim 1.4" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Hose Fitting:

• Universal 6AN in-line electric fan thermostat temperature switch kit.
• 1/8" inch NPT brass thread-in probe and dual pin disconnect switch.
• Preset to power fan at 180'F turn-on and 165'F turn-off temperature.
• Anodized aluminum barbed straight push-on hose fitting adapters.
• Measures temp of any liquid including oil, water and coolant fluid.
