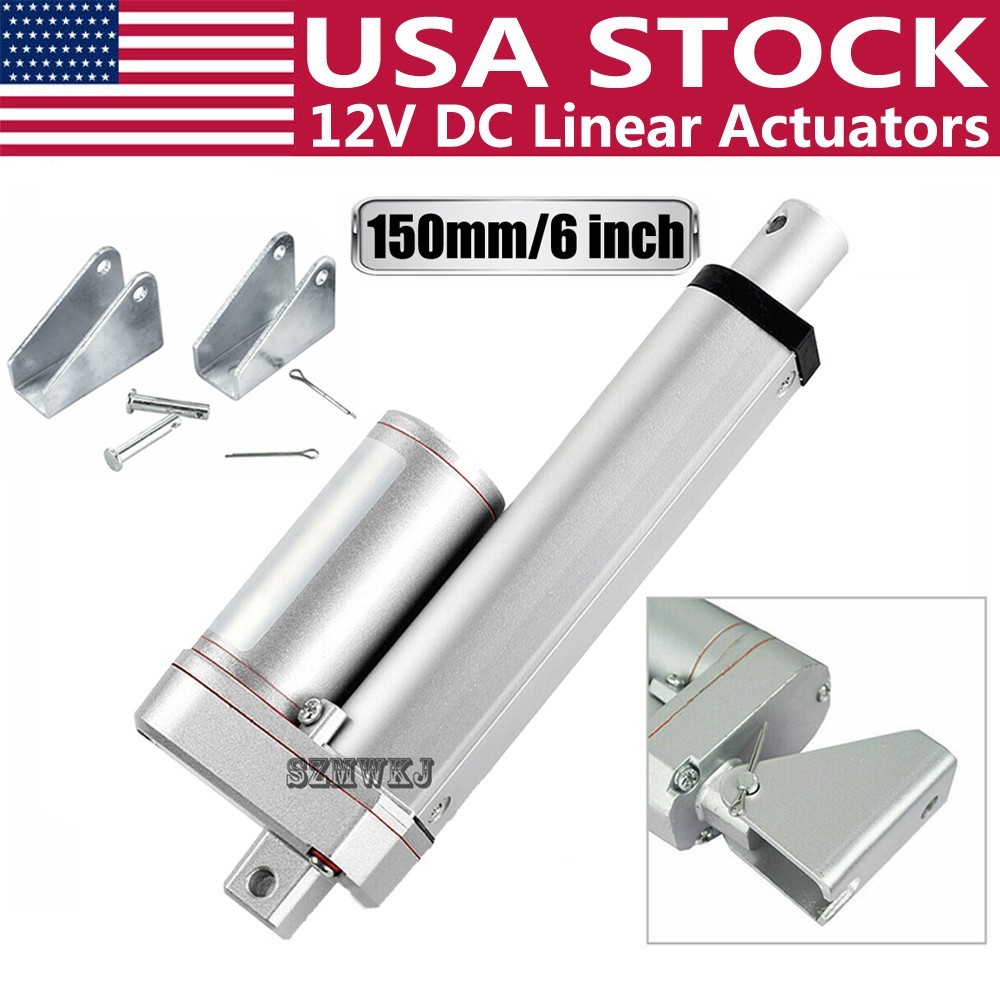

1500N/330lbs Max Lift 12V Heavy Duty 6inch 150mm Stroke Electric Linear ActuatorProduct Description1500N/330lbs Max Lift 12V Heavy Duty 6inch 150mm Stroke Electric Linear Actuator
Features:
[High Quality]The linear actuator is made ofaluminum alloy,which is equipped with high performance motor and built-in stroke switch.It canbe stopped at any position, with self-locking function.
[Low noise]Noise level below 50 dB,which is suitable for quiet and comfortable environments, such as hospitals, homes, and offices.
[Waterproof]IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use.
[Safe]Over current protection, overload protection, over-voltage protection, over-discharge protection, short circuit protection, shock protection.
[WideApplications]Electric linear actuator can be widely used in industrial electric lifting system, electric bed, traction bed, electric sofa, electric lifting lever, electric booth,electric sunroof,solar trackerand chicken coop dooretc.
Specification:
Input Voltage:DC 12V
Stroke Length:150mm/6\"
Retracted Length:260mm/10.24\"
Extended Length:410mm/16.14\"
Max Push Load:1500N/150KG/330lbs
Max Pull Load:1200N/120kg/264lbs
Speed:5.7mm/s (0.22\"/s)
Power Cord Length:1.5Meters/59\"
Duty Cycle:25%
Operating Frequency:20%
Operation Temperature:-26 ° C ~ +65 ° C
Protection Class:IP54
No-load Current:< 0.5A
Max load Current:3A
Limit Switches: Built-in(Not Adjustable)
Easy to Set Up:
The linear actuators are controlled by applying a 12V DC voltage, basically, connect the two wires to a 12 volt battery.
Reversing the polarity will make the actuator reverse.
Red wire to the positive terminal and black wire to negative terminal will make it extend. To make it retract, reverse the terminal connections.
The actuator has pre-installed limit switches inside, they cannot be adjusted.
Package Included:
1PCS 1500N 150mm/6\" Stroke 5.7mm/s Speed Linear Actuator W/ Mounting Brackets.
Applications:
◆ Medical Technology: electric beds, nursing beds, ICU beds, turning beds, operating beds, dental chairs, rehabilitation training beds, C-arms, nuclear magnetic resonance equipment, hanging towers, electric wheelchairs, trolleys, etc..◆ Furniture Field: sofa, elderly chair, lazy chair, foot bath chair, home bed, beauty bed, massage chair, massage bed, TV rack.◆ Industrial Technology field: door opener, window opener, sweeper, agricultural harvester, yacht, car, stage.◆ Military Field: armored vehicles, communication command vehicles, engineering rescue vehicles.
