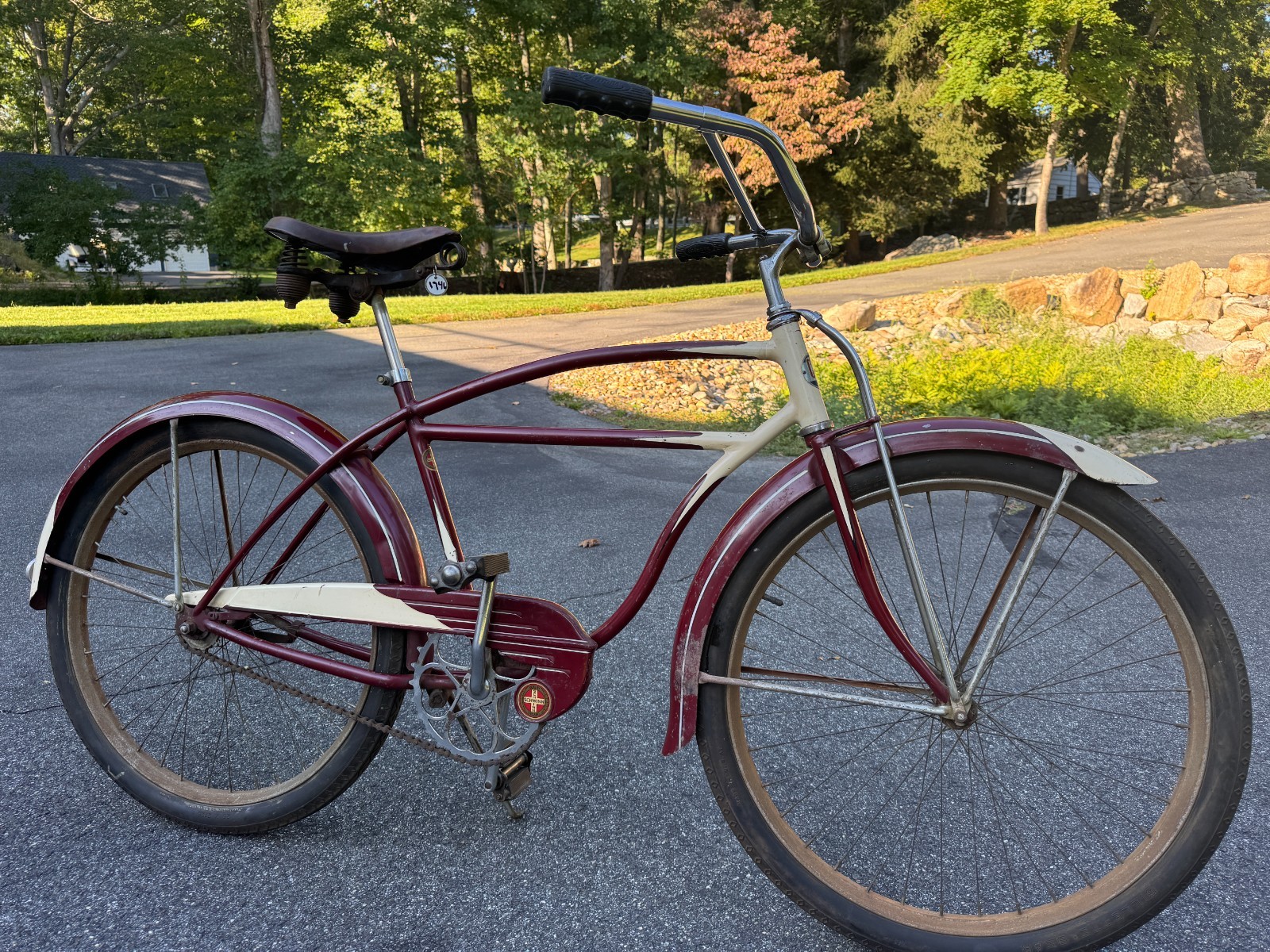

1946 Schwinn Straight Bar Truss fork Balloon tire cruiser Complete Original For Sale

Amazing Cavalier Badged Schwinn Skip Tooth Cruiser in Burgundy. This was the gem of my Schwinn Ballooners.greenwallvintagebicyclesAI says:Your Schwinn 26\" straight-bar frame with serial number J70301 is a classic balloon-tire cruiser manufacturedBecause Schwinn reused its old serial numbering systems across different decades, a letter followed by five digits (like J70301) can initially seem confusing. However, your specific frame style completely narrows down the era.All factory records of Schwinn serial numbers prior to August 1948 were destroyed in a severe factory fire. Because of this, standard online automated serial number lookup tools defaults any solo letter prefix followed by five digits (like your J70301) to the structured factory records of 1951.Collectors specializing in early postwar Chicago builds have spent decades reconstructing the lost timelines. If your straight-bar cruiser is a 1946, it possesses specific structural \"fingerprints\" that completely set it apart from a 1951 model:1. The Rear Dropouts (Where the wheel bolts on)

• If it\'s 1946: The metal dropouts on the back frame are \"skinny\" and completely flat. The rear wheel slots directly backward into the frame.
• If it\'s 1951: The dropouts are thick, heavy pieces of stamped steel, and the metal has a distinct raised/stamped ridge around the edges to reinforce them.

2. The Kickstand

• If it\'s 1946: The frame likely utilizes a built-in \"tapered\" or \"pencil\" kickstand. The tube of the kickstand starts thick at the top and narrows sharply toward the bottom.
• If it\'s 1951: It features a standard, uniform-width built-in kickstand tube that is uniform all the way down to the foot.

3. The Front Truss Fork

• If it\'s 1946: The dual truss rods running down the sides of the fork are exceptionally thin (\"skinny truss rods\") and connect at the top with an aluminum or steel bracket shaped like a tiny clothes hanger.
• If it\'s 1951: The truss rods are thicker and mount to a wide, flattened top plate that is distinctly curved.

4. Serial Stamping Font Size

• If it\'s 1946: The J70301 letters and numbers are stamped in a noticeably smaller font on the bottom bracket.
• If it\'s 1951: The letters and numbers are deeply struck in a much larger, standard post-1950 block font.
