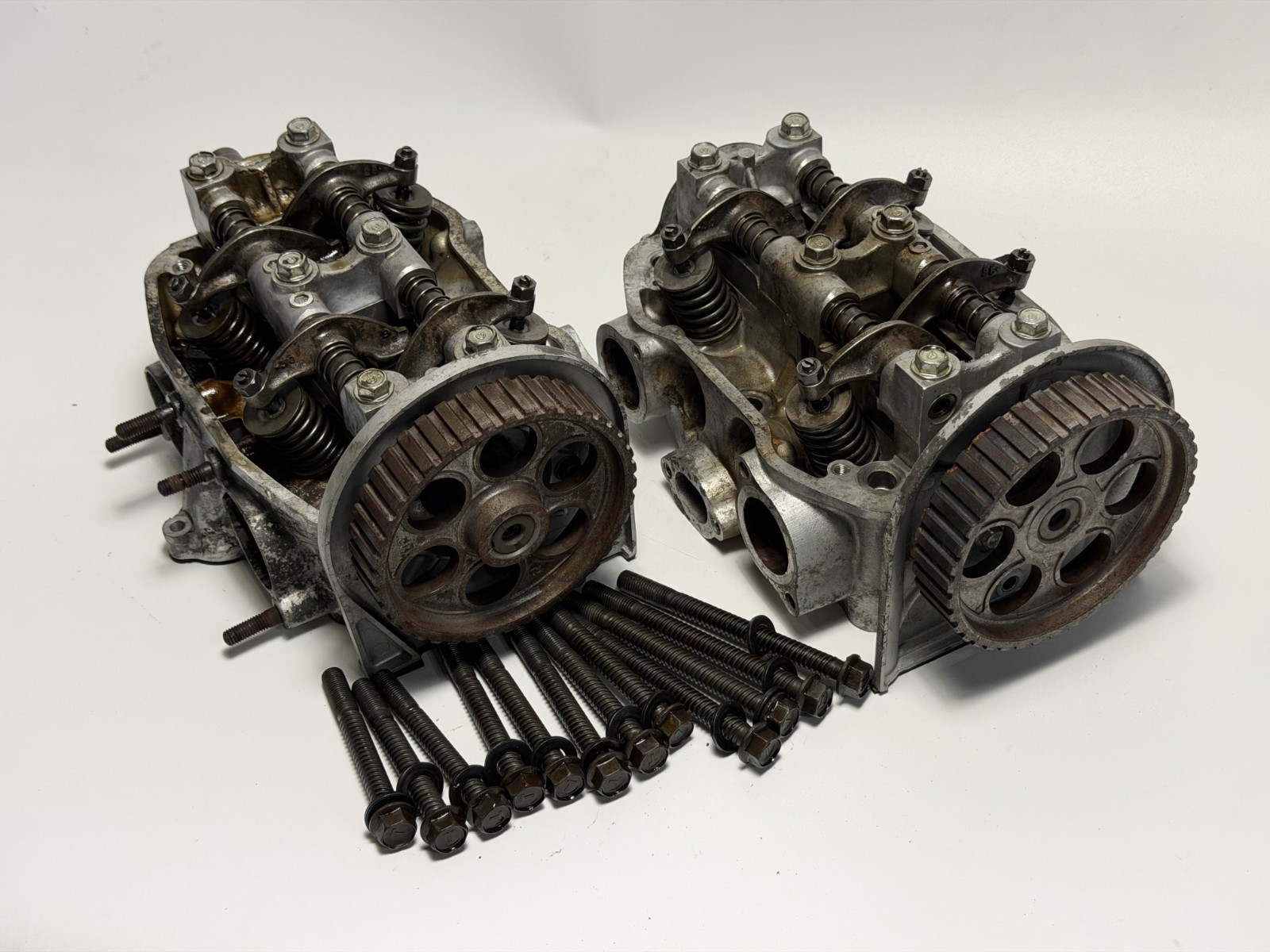

These are being sold assembled as pictured and include both aluminum cylinder heads, right and left camshafts with timing pulleys, rocker arms and shafts, intake and exhaust valves, inner/outer valve springs, retainers, valve hardware, tappet adjusters, camshaft holders and associated hardware. The removed cylinder-head bolts shown are also included.
Honda lists the 1981 cylinder head assembly as 12200-463-010, with two used per engine.
OEM Honda part numbers for the major included components:
- 12200-463-010 – Cylinder Head Assembly (2)
- 12204-371-305 – Intake Valve Guide
- 12205-371-305 – Exhaust Valve Guide; later catalogs may supersede this to 12204-371-305
- 12211-250-310 – Valve Guide Clip
- 12238-371-000 – Oil Control Orifice
- 14110-463-000 – Right Camshaft
- 14211-463-000 – Left Camshaft
- 14611-463-000 – Valve Rocker Arm A
- 14621-463-000 – Valve Rocker Arm B
- 14631-371-000 – Rocker Arm Shaft
- 14642-371-000 – Rocker Arm Side Spring
- 14711-371-000 – Intake Valve
- 14721-371-000 – Exhaust Valve; later replacement 14721-371-405
- 14751-611-003 – Inner Valve Spring
- 14761-611-003 – Outer Valve Spring
- 14771-551-020 – Valve Spring Retainer
- 14775-410-010 – Valve Spring Seat
- 14781-551-000 – Valve Cotter, 1980–81
- 90012-426-000 – Tappet Adjusting Screw
- 90206-250-000 – Tappet Adjusting Nut
- 94401-25140 – Camshaft Woodruff Key
- 90001-371-013 – 10x90 Cylinder Head Flange Bolt
- 90002-371-013 – 10x115 Cylinder Head Flange Bolt
Honda's 1980–82 factory parts catalog confirms the camshafts, rocker assemblies, valves and valvetrain hardware above, including the 1980–81-specific 14781-551-000 valve cotters.
