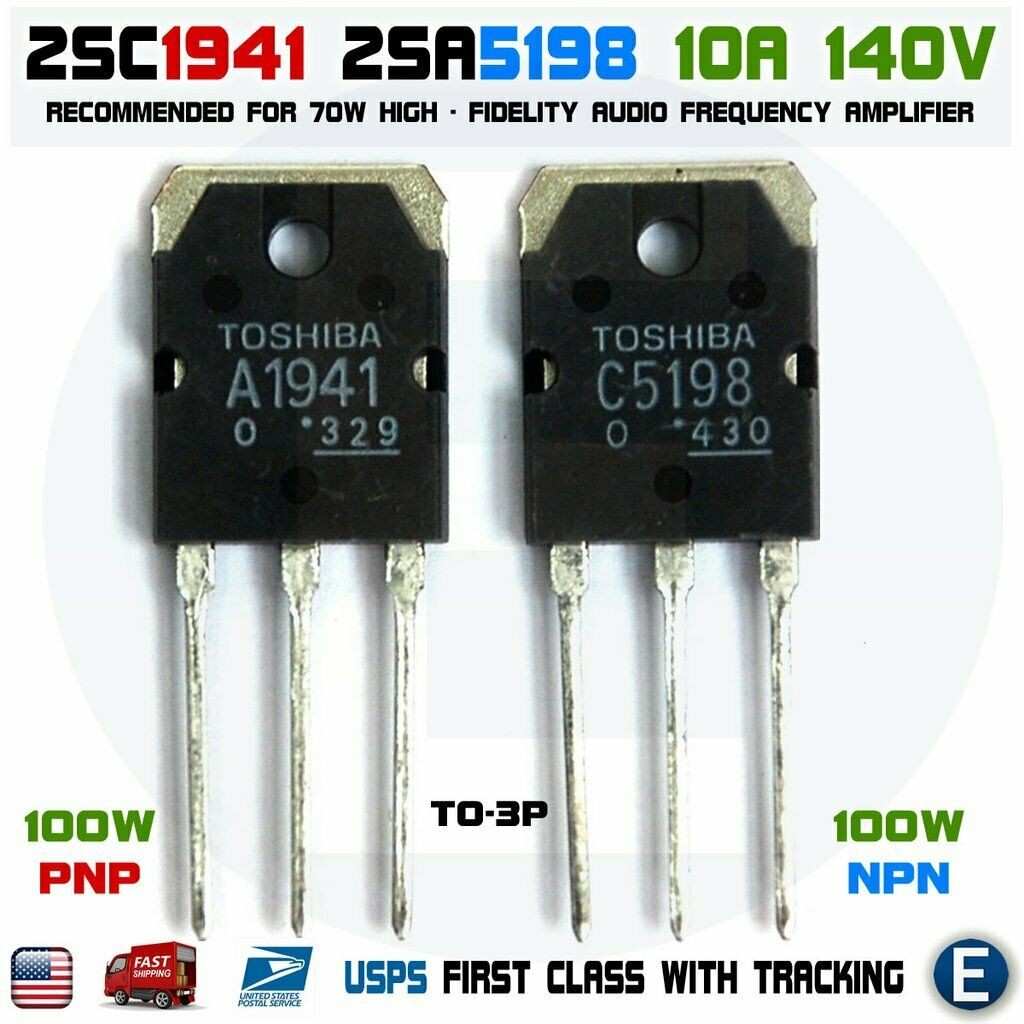

1pair 2SA1941 & 2SC5198 A1941+C5198 Toshiba Transistor PNP NPN 10A 140V 100w USA:
$7.98
Material of Transistor: Si
2SC1941 & 2SA5198
Polarity: PNP & NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage 'Vcb': 140 V
Maximum Collector-Emitter Voltage 'Vce': 140 V
Maximum Emitter-Base Voltage 'Veb': 5 V
Maximum Collector Current 'Ic max': 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 320pF & 170 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Package: TO-3P
Package Included:
1pair 2SA1941 & 2SC5198 A1941+C5198 Toshiba Transistor PNP NPN 10A 140V 100w
