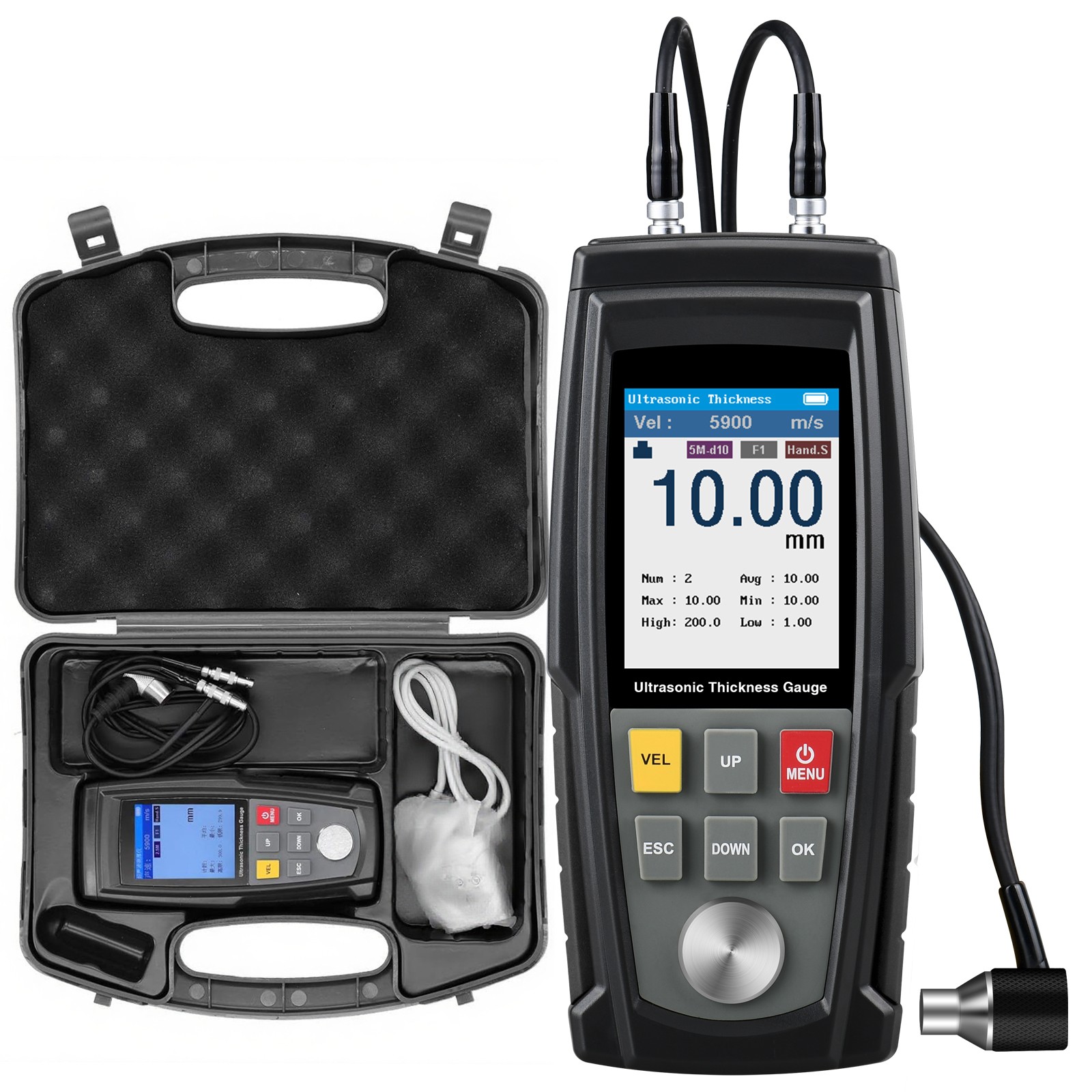

2.5MHz Ultrasonic Thickness Gauge Min/Max 1500 Sets Data Storage 0.04 - 11.81 in For Sale

Features:

1. High Precision Industrial Thickness Gauge - The principle of Ultrasonic measurement allows you to measure the thickness of Metal (such as Steel, Aluminum, Copper, etc.), Plastic, Ceramics, Glass and other homogeneous materials through the passage of Ultrasonic wave.

2. Best Technical Parameters - The ultrasonic thickness tester has a wide Range of 0.039 to 11.811 inch /1mm to 300mm with a minimum Resolution: 0.01 mm / 0.1 mm (selectable). This allows this measuring instrument to be used in Industry

3. Convenient Settings and Measurement Statistics - Calibration is carried out both using a reference plate and by independently setting the sound Velocity (Sound speed range: 0.039~ 0.393 in/μs / 1000~9999m/s)

4. Fast, Hand-held and Comfort - The device is equipped with a fast microprocessor; has a small and comfortable size and work with an ultrasonic technology.

5. Best Display Ever - The ultrasonic thickness gauge is equipped with a color screen HD display with regulation function backlight brightness and with ability to choose the color of the interface (blue, orange, green, purple, grey ).

6. Convenience and Usability - It is a highly accurate and compact instrument that can be widely used everywhere, in ect in manufacturing, metal processing, commodity inspection and all other testing areas.

7. Widely Uses - This device can be used for determining the average thickness of pipelines and pressure vessels of production equipment, and also to find the corrosion degree of various parts in : 2.5MHz Transducer

8. Display: 4-digital LCD display

9. Minimum display unit:0.1mm

10. Working frequency: 2.5MHz

11. Measuring range:1.00 to 300.0mm(steel)

12. Minimum limit for tube denotes the measured thickness.

13. Sound velocity range:1000 to 9999 m/s

14. Measuring sound velocity with a given thickness: measuring range: 1000 to 9999 m/s.When the given thickness over 20mm,the accuracy is +/-5%; when the given thickness less than 20mm,the accuracy is +/-1mm/H*100%.

15. Operation temperature:0 to 40℃

16. Power supply:3 Ni-MH rechargeable batteries of 1.2V

17. Operation current: Normal operation current ≤50MA, with Backlight turn on current ≤120mA , Stand-by current: ≤20Ua

18. Ultrasonic Thickness Gauge hold:Can store 1500 sets of data
19. Pre stored sound speed: 12 different sound speeds

20. Upper and lower limit alarm: Yes

Calibration of the Ultrasonic Thickness Gauge Industrial
1. Calibration of the Industrial Ultrasonic Thickness Gauge Turn on the thickness gauge and press the "ESС" button.

2. A menu item will appear at the bottom of the display,

• Select the "Cal" item to calibrate against the reference block which is located at the bottom of the device case,

• Select "Vcal" to calibrate to a block of known thickness

3. If the calibration is not successful, then you need to make a "factory default", and then re-calibrate
4. To do this, enter the device MENU, select "Settings" item "Factory default"

What is in the package:

• 1* Ultrasonic Thickness Gauge

• 1* 2.5MHz probe
• 3* Batteries

• 1* USB Charging Cable (No Adapter )

• 1* Empty bottle of coupler

• 1* Hard shell PP Plastic Carry Note!!!
  This Gauge cannot measure the thickness of coating on metal substrates. For this application you should buy “Coating thickness gauges”.
  This gauge cannot measure the thickness of cast iron, due to its big crystalloid composition.
  Coupling agent is necessary for measuring. Please note that our thickness gauge doesn't include the coupling agent.
