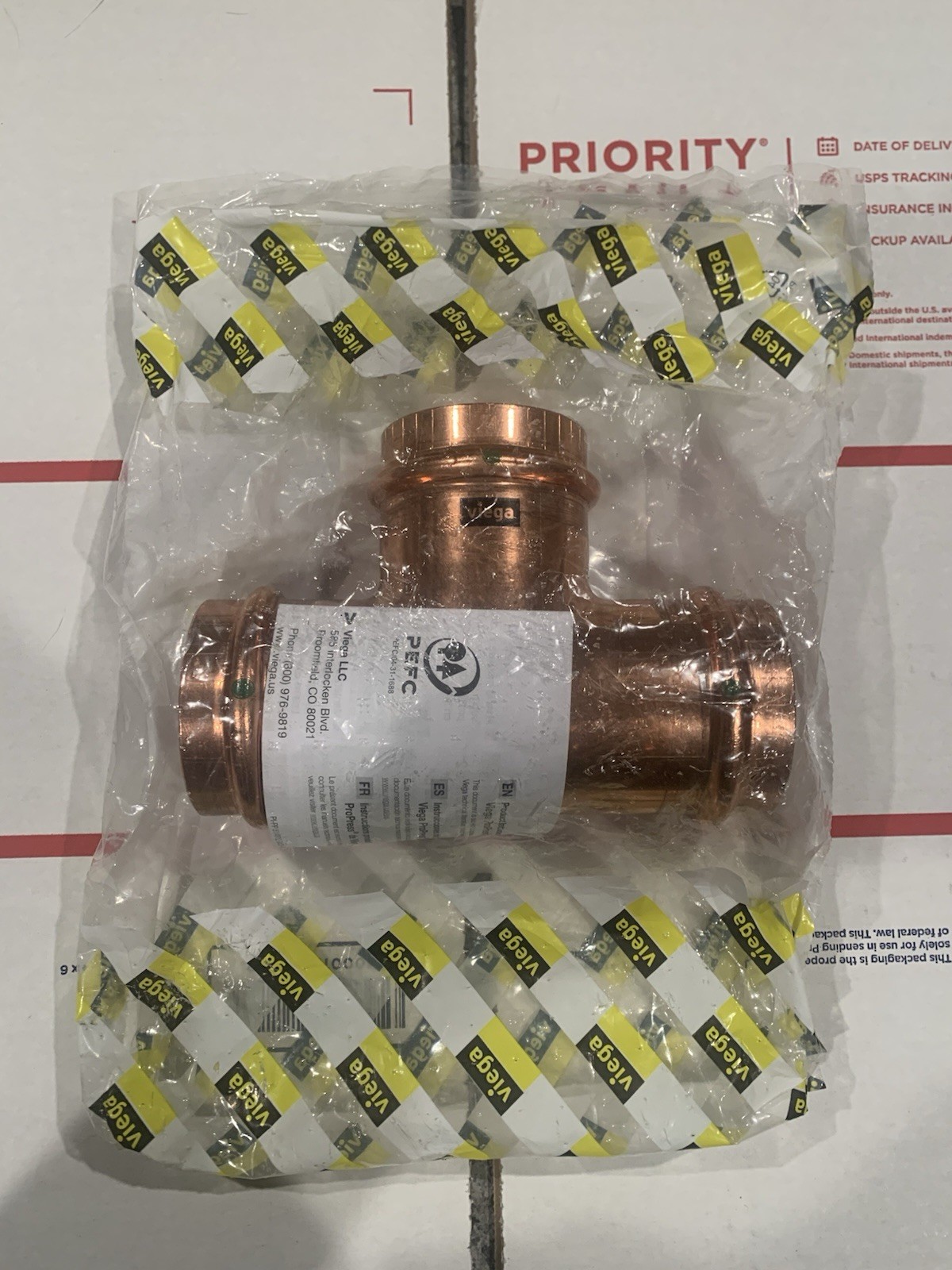

2” X 2” X 2” 77477 VIEGA ProPress Reducing TEE PxPxP Copper Pipe Press Fitting Model 2918
TYPE TEE
UNS C12200 COPPER ALLOY MATERIAL
2 INCH X 2 INCH X 2 INCH NOMINAL SIZE
NSF/ANSI 61/372, IAPMO PS 117, UL/ANSI 213, FM CLASS 1920, ICC-ES IC1002, CSA, ASME B16.51/B31.1/B31.3/B31.9, NFPA 13/13D/13R, IAPMO, ICC APPLICABLE STANDARD
HOT AND COLD PORTABLE WATER, RAINWATER/GRAY WATER, FIRE SPRINKLER, CHILLED WATER, HYDRONIC HEATING, LOW PRESSURE STEAM, RESIDENTIAL STEAM, ETHANOL, COMPRESSED AIR, NON-MEDICAL GAS, VACUUM APPLICATION
0 TO 250 DEG F TEMPERATURE RATING
ASTM B88/B31/B75 MATERIAL SPECIFICATION
300 PSI PRESSURE RATING
PRESS X PRESS X PRESS END CONNECTION
PROPRESS[R] BRAND
LEAD-FREE
INCLUDES EPDM SEALING ELEMENT
2918 MODEL
