Specifications
Toolholder Style: MCLN
Hand of Holder: Right Hand
Insert Compatibility: CN..43.
Insert Holding Method: Screw; Clamp
Shank Width (Inch): 1
Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000
Shank Height (mm): 25.40
Coolant Through: No
Rake: Negative
Multi-use Tool: No
Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000
Head Length (Decimal Inch): 1.2000
Head Length (mm): 30.56
Back of Bar to Cutting Edge (Decimal Inch): 1.2500
Back of Bar to Cutting Edge (mm): 31.75
Insert Inscribed Circle (Decimal Inch): 0.5000
Toolholder Material: Steel
Complete Insert Compatibility: CN.. 432

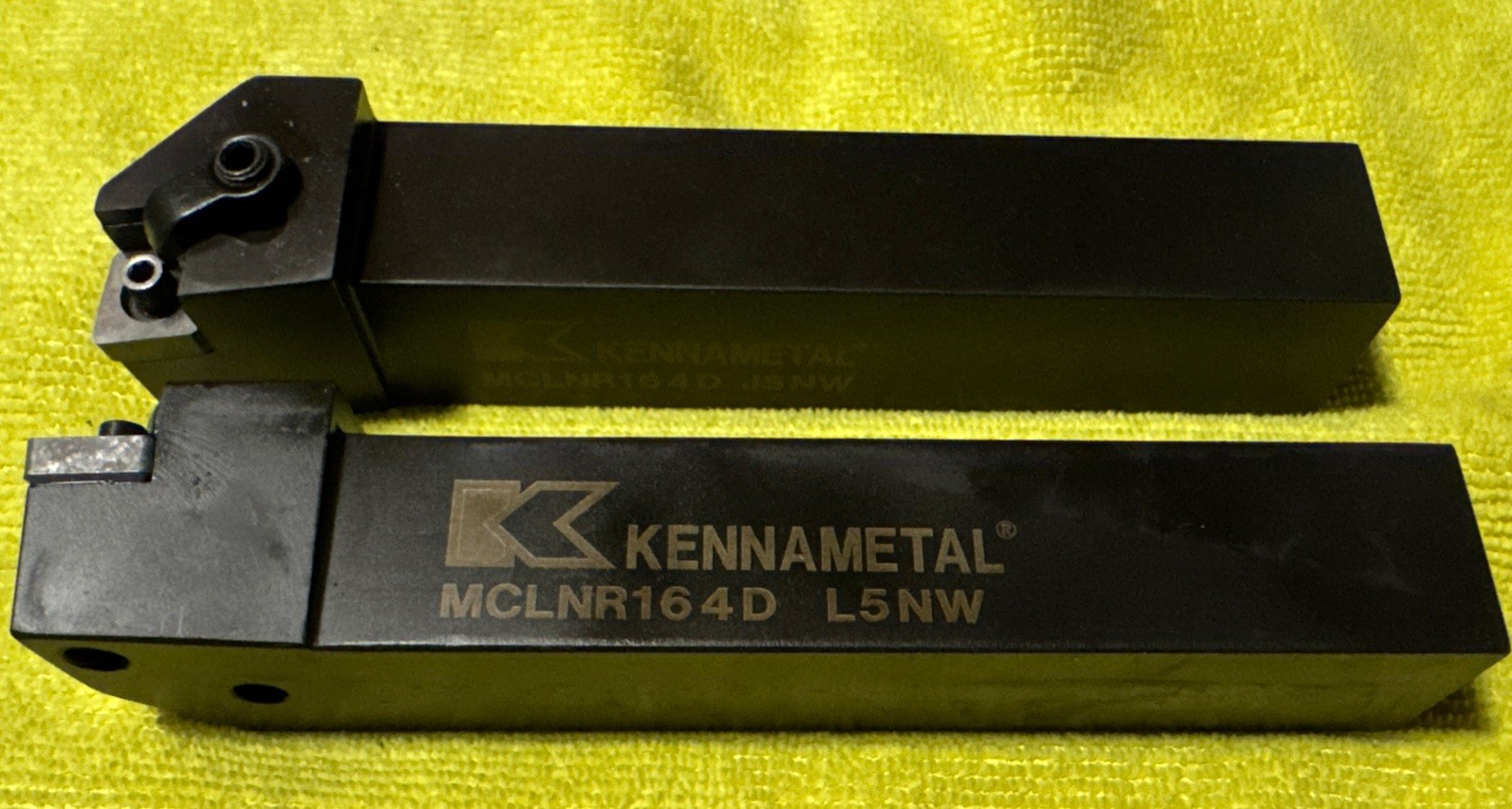

![2 Kennametal MCLNR 164D ,1\](img-large/g/KNAAAeSw4KJqt0Vy/s-l1600/2-Kennametal-MCLNR-164D-1-x-1-Shank-Turning-Tool-H.jpg "2 Kennametal MCLNR 164D ,1\")
