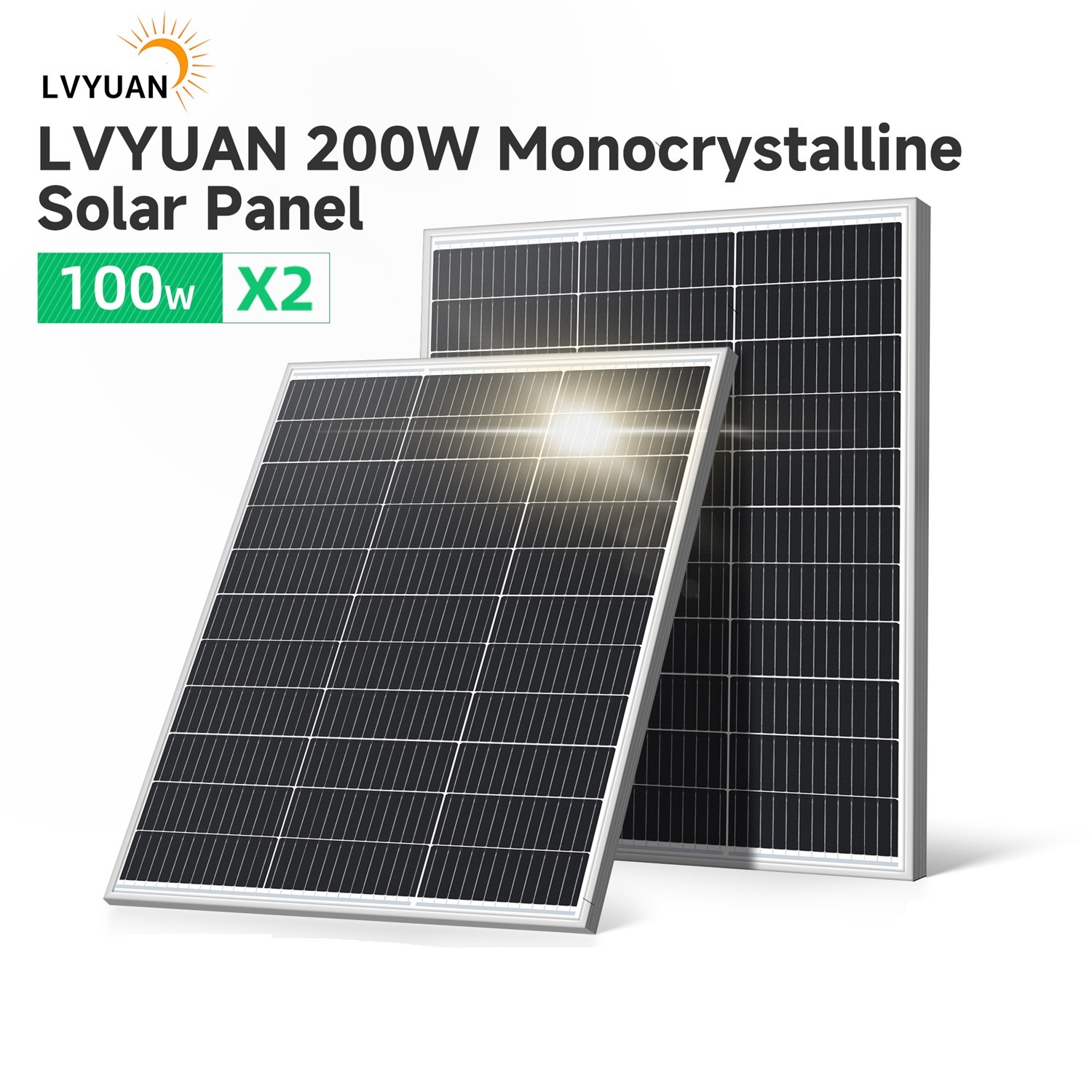

200W 400W Solar Panel Mono Power Charger for RV Home Off-Grid PV PowerstationLVYUANPremium Monocrystalline Solar ModulesReliable Power for Off-Grid, RV, Marine & Home Applications
Why Choose LVYUAN?
- ★High Conversion Efficiency: Up to 23% efficiency using high-quality monocrystalline cells.
- ★Durable Construction: Tempered glass with anti-reflective coating and anodized aluminum frame for long-term outdoor use.
- ★Standard Output: Equipped with pre-installed MC4 connectors with 90cm cables for easy setup.
- ★Built to Last: High load-bearing performance (up to 5400pa) resistant to wind and pressure.
Product Specifications
This listing contains two variations to suit your specific needs. Please select your preferred module from the dropdown menu.
100W Monocrystalline Solar Module (CSMS-100W)Maximum Power (Pmax)100WOperating Voltage (Vmp)DC 19.0VOperating Current (Imp)5.26AOpen-Circuit Voltage (Voc)DC 22.42VShort-Circuit Current (Isc)5.79AConversion EfficiencyApprox. 23.0%Dimensions664 x 835 x 35 mmWeightApprox. 6.1 kg
*Values measured under STC (Irradiance 1000W/m², AM-1.5, Cell Temp 25°C).
200W Monocrystalline Solar Module (CSMS-200W)Maximum Power (Pmax)200WOperating Voltage (Vmp)DC 22.50VOperating Current (Imp)8.89AOpen-Circuit Voltage (Voc)DC 26.55VShort-Circuit Current (Isc)9.78AConversion Efficiency25.0%Dimensions664 x 1430 x 35 mmWeightApprox. 10.0 kg
*Values measured under STC (Irradiance 1000W/m², AM-1.5, Cell Temp 25°C).
Application
Versatile Applications: Ideal for RVs, boats, cabins, off-grid systems, camping, and emergency backup power. Works seamlessly with most power stations and charge controllers.
Package Includes
- 2 x LVYUAN Solar Panels (100W or 200W per your selection)
- 2 x 90cm MC4 Cable Connectors (Pre-attached)
Shipping & Support: We process orders promptly from official warehouses. If you have any installation or compatibility questions, please contact us via messages for professional support. *Note: Solar output varies based on sunlight intensity and angle. Please ensure your charge controller is rated for the total wattage.
