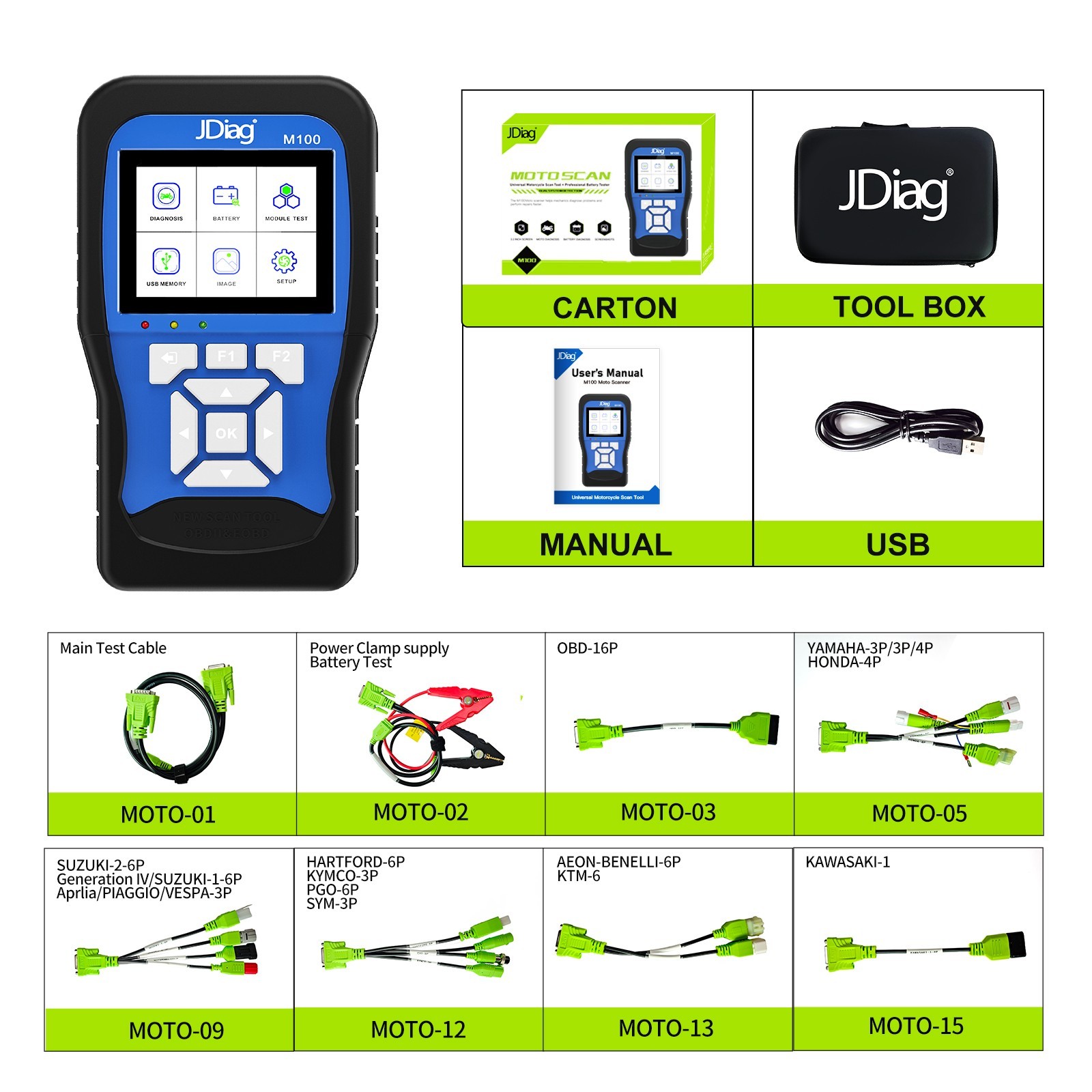

Motorcycle Diagnostic Tool M100 Standard Version Motorbike Scanner
M100 Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster; many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).
It allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adapti parameters, and making idling adjustments.
The tool shows live data, displays ECUdata, reads stored faults(history) or live data style=\"margin: 0px; padding: 0px; border: 0px; font-variant-numeric: inherit; font-variant-east-asian: inherit; font-stretch: inherit; font-size: 14px; line-height: inherit; font-family: Arial; font-optical-sizing: inherit; font-kerning: inherit; font-feature-settings: inherit; font-variation-settings: inherit; vertical-align: baseline; color: #4c4c4c;\">
Support Languages: English , Spanish ,Chinese, Thai, Indonesian, Vietnamese, Malay.
Support Motorcycle list: Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM, etc.
Function:
- Read system information
- Read data stream
- Read fault code
- Erase fault code
- Freeze data
- CO idle speed adjustment
- Actuators test
- ABS system test
- Trouble shooting guidance
- Tire pressure system test
- Anti-theft system test
Features:
- Handheld operation, convenient and flexible to use.
- Support for SD cards to store data and upgrades.
- Reserved CAN bus interface.
- 3.2-inch color screen, clear display.
- Dynamic data with numerical and waveform.
Specifications:
- Power: DC10-15V
- Operating Current: 250mA
- Storage temperature: -10 C to 85 C
- Operating temperature: 0 C to 70 C
- Humidity: <90%
- Upgrade Ports: USB port
- Communication ports: COM port
Tool Description:
1). OBDII Connector- Connects the scan tool to the vehicle'sdata link connector- DLC
2). LCD Display- Displays menus and test results.
3). Green LED- indicates that engine System are runningnormally , The number of monitors on the vehicle which areactive and performing their diagnostic testing is in theallowed limit, and no DTCs are present.
4). Yellow LED- indicates there is a possible problem.A Pending DTC is present or some of the vehicle's emissionmonitors have not run their diagnostic testing.
5). Red LED- indicates there is a problem in one or moreof the vehicle's system , The Red LED is also used to showthat DTCs are present , DTCs are shown on the scan toolsemission monitors have not run their diagnostictesting.
6). EXIT BUTTON- Return to previous menu.
7). F1 BUTTON- Provides help information and CodeBreaker function.
8). F2 BUTTON-Backspace function .
9). LEFT SCROLL BUTTON- Move cursor left forselection or turn page up when more that one pageisdisplayed.
10). UP SCROLL BUTTON- Move cursor up forselection.
11). OK BUTTON-Confirms a selection or action froma menu list.
12). RIGHT SCROLL BUTTON- Move cursor right forselection, or turn page down when more than one page isdisplayed.
13). DOWN SCROLL BUTTON- Move cursor downfor selection.
14). +-Press both buttons together toperform screen capture .
15). USB CNNECTOR- Connects the scan tool to the PC forprinting and upgrading.
