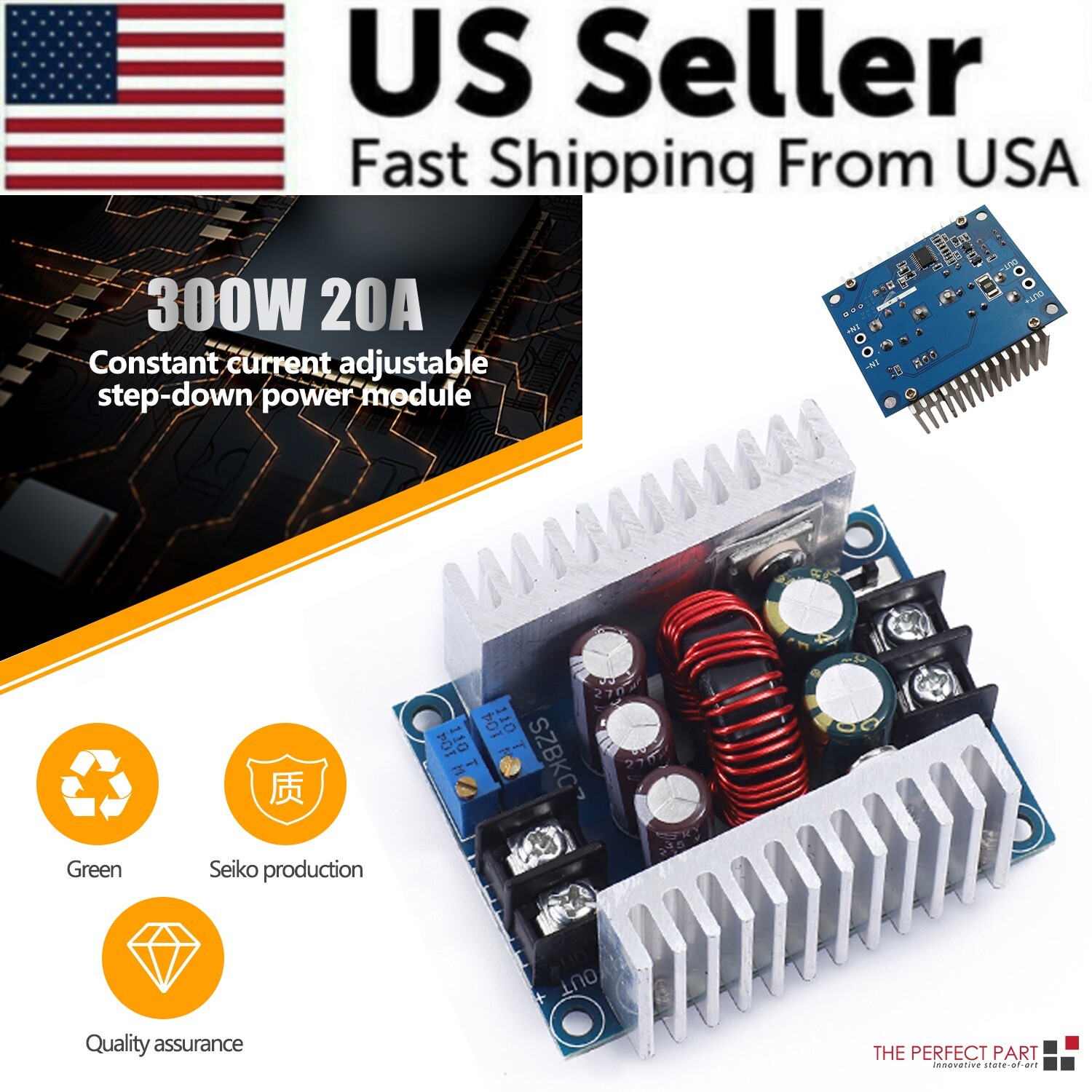

20A 300W Synchronous Buck Module DC Step Down Voltage CC Power 5V 12V 24V 36V For Sale

• ⚡ This step-down voltage module with a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current.

• ⚡ It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.

• ⚡ The efficiency can be up to 96%, measured at 20A, converting 24V to 12V. Wiring is convenient with these large current 30A screw terminals.

• ⚡ When there is a big difference between input and output voltage, please decrease power and current.

• ⚡ The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.

• Input Voltage: 6V to 40V DC(10V to 40V is suggested)
• Output Voltage: 1.2V to 36V DC
• Output Current: 20A(max.), 15A(suggested)
• Efficiency: 95%(24V to 12V, 20A)
• Output Ripple: ≤50mV
• Wiring Method: Terminal
• Short Circuit Protection: Self-recovery(cannot short circuit for long time)
• Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"

• Features & Tips

• VO+: Output positive

  VO-: Output negative

  +IN: Input positive

  -IN: Input negative

  CV: Output voltage adjustment

  CC: Output current adjustment

  EN: Enable, low voltage level shut off output; suspension, high voltage level is effective

  When input and output is common grounded, no-load CV output constant voltage,CC output constant current




  Maintain stable output voltage and limit the output current over a range of input voltages. Great for general voltage conversion, battery charging, powering raw LEDs, automotive electronics, battery conversions, micro-controllers, and electronic projects.

  Input Voltage: 6-40V DC • Output Voltage: 1.25-36V DC • Max Load: 300W/20A Peak, 15A Sustained

  Minimum Dropout: 3V • Conversion Efficiency: Up to 96% • Short-circuit protection • Non-isolated

  Dimensions: 60x53x27mm • LM25116 IC • 150KHz Switching Frequency • 50mV ripple

  Input must be at least 3V more than the output voltage. Applying reverse polarity voltage to the input or output may damage the module. A fan is required if the module temperature exceeds 65°C

This step-down voltage module with a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current.

It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.

The efficiency can be up to 96%, measured at 20A, converting 24V to 12V. Wiring is convenient with these large current 30A screw terminals.

The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.

• 1 x 20A 300W Synchronous Buck Module DC Step Down Voltage CC Power 5V 12V 24V 36V
