Product Overview

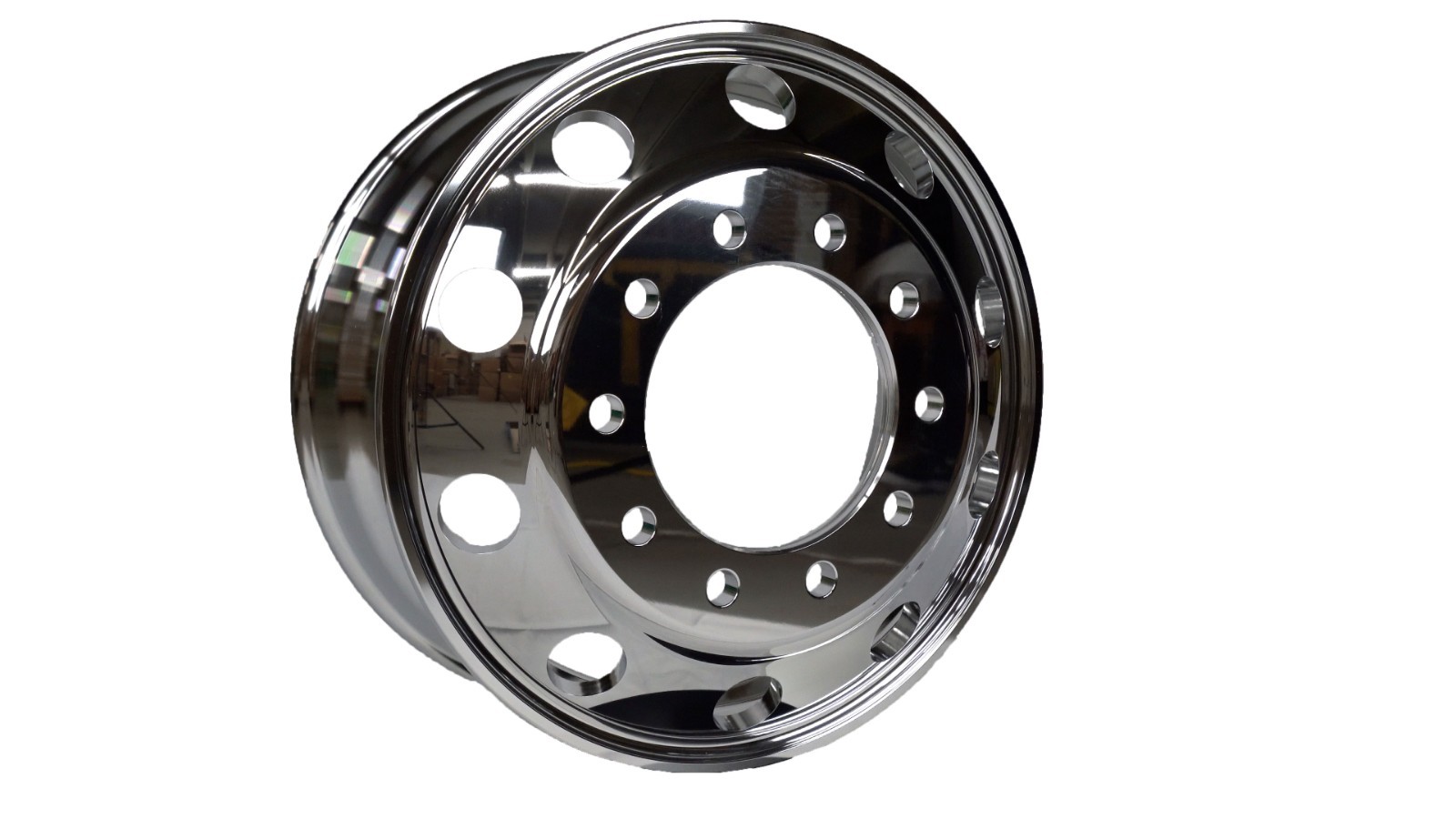

Designed and manufactured by Top Boy Materials, this 22.5×8.25 Alcoa-style forged aluminum truck wheel is engineered for demanding commercial applications, including heavy-duty trucks, trailers, and bus fleets.
Produced from a single-piece 6061-T6 forged aluminum blank, this wheel delivers outstanding structural strength, reduced rotational weight, and long-term durability. The hub-piloted 10-hole configuration ensures precise centering, while the dual-side mirror-polished finish provides both corrosion resistance and a premium, professional appearance.
Built to meet and exceed applicable industry standards, this wheel is ideal for operators seeking performance, efficiency, and reliability without compromise.
Technical Specifications
Wheel Size: 22.5 × 8.25 in
Mounting Type: Hub Piloted
Bolt Pattern (PCD): 10 × 285.75 mm
Center Bore: 220.1 mm
Offset (Outset): 167 mm
Backspacing: 10.7 in
Bolt Hole Diameter: 26.5 mm
Valve Stem: TR554D
Material: Forged Aluminum 6061-T6
Wheel Weight: 25.7 ± 0.5 kg
Max Load Rating: 3,650 kg (8,045 lbs)
Finish: Mirror Polished (Front & Back)
Condition: Brand New
Key Features & Benefits✅ One-Piece 6061-T6 Forged Aluminum
Aerospace-grade forged construction
Significantly lighter than steel wheels (approx. 30–40%)
Typical mechanical properties:
Improved fuel efficiency and reduced suspension wear
✅ Classic Alcoa-Style Design with Premium Finish
Clean, timeless commercial wheel profile
Dual-side mirror polishing enhances corrosion resistance
Suitable for both fleet operations and owner-operators
✅ Heavy-Duty Load & Fatigue Performance
Rated at 3,650 kg per wheel
Tested in accordance with GB/T 5909-2009 standards:
Bending Fatigue Test: 300,000 cycles (90° load)
Radial Fatigue Test: 1,000,000 cycles @ 7,300 kgf
Designed for long-haul and high-duty service conditions
✅ Precision Hub-Piloted Fitment
10-hole hub-piloted design ensures accurate centering
Reduces vibration and promotes even load distribution
Compatible with most North American hub-piloted commercial truck platforms
✅ Corrosion Resistance & Ride Quality
Salt spray tested for enhanced corrosion protection
CNC-machined for balance accuracy and extended tire life
Dynamically balanced before shipment
Shipping & Logistics – DDP Service (USA)
🚚 DDP (Delivered Duty Paid) available for full-container orders
Direct shipment from China manufacturing facility to U.S. ports
Includes ocean freight, customs clearance, import duties, and inland delivery
Simplifies international purchasing for U.S. buyers
Service available to all major U.S. ports and logistics hubs
Typical Applications
Heavy-duty long-haul and regional trucks
Semi-trailers and commercial bus fleets
Construction and vocational vehicles
Any 22.5” hub-piloted, 10-hole commercial wheel application
Why Choose Top Boy Materials?
✔ Precision Forging with Proven Structural Performance
✔ Strict Quality Control – Every Wheel Inspected & Tested
✔ Global Supply Capability with U.S.-Focused Logistics
✔ Factory-Direct Pricing for Fleet and Volume Buyers
✔ Fast Order Processing & Professional Support
🚛 Upgrade Your Fleet with Forged Strength and Premium Finish
Contact us today for volume pricing, full-container DDP options, or technical fitment support across the United States.
