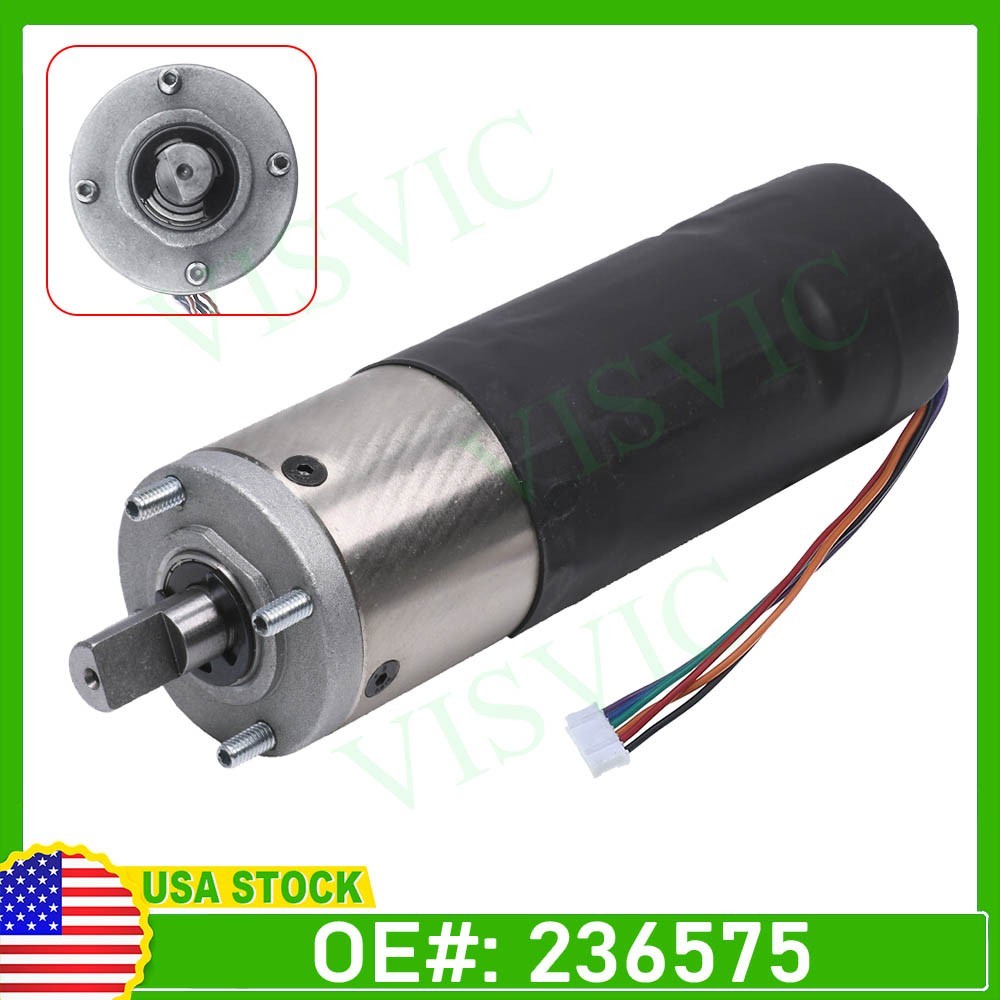

RV in-Wall Slide-Out Motor, IG-42 (10mm) Motor Assembly, 300:1 High Torque Gear Ratio Compatible with in-Wall Slide System 236575
Featrues:
In-Wall Slide-Out Replacement Motor Extends and retracts slide-out with ease
Also known as IG-42 Motor - 10mm
No assembly required; for use on LCI In-Wall Slide-Outs only
Will fit Following Models
This Motor has 300:1 Ratio!!!
This is not 500:1 Ratio!!!
236575 High Torque Gear Ratio 300:1 motor assembly. Operates on 12V DC, with a no-load speed of 26 rpm and a rated speed of 22 rpm, ensuring fast, efficient extension and retraction of the slide.
10-pole, 5ppr encoders ensure accuracy on every move. Direct replacement for damaged schwintek slide motor.
Specifications:
Voltage: 12V
No-load Speed: 26rpm
No-load Current: <1.3A
Rated Speed: 22rpm
Encoder: 10 Pole 5ppr
Gear Ratio: High Torque (300:1)
236575 Slide-Out Motor
Replace Part Number:
236575
Fitment:
Compatible with Lippert Schwintek In-Wall Slide System
Perfect replacement for slide motor of 2014 Grey Wolf 26 dbh slide out, 2016 Coachman Prism LE 2200, 2018 Montana, etc.
Note: Please verify your RV slide-out system type or refer to your user manual to get the original part number to ensure compatibility before purchasing.
Package Including:
1x 236575 RV in-wall slide-out motor
Installation Tips:
Step 1. Find and remove the motor retention screw on the outside of the coach.
Step 2. Inside the coach, remove the seal to access the motor notch. Once the shaft is clear, unplug the motor and lift it up within the h-column, then pull out of the motor notch.
Step 3. Replace the new motor. Reinsert the motor wiring harness, restore the seal, and replace the motor fixing screws.
**Please note the connection between the Encoder wire and the motor. Ensure proper connection for proper motor operation.**
