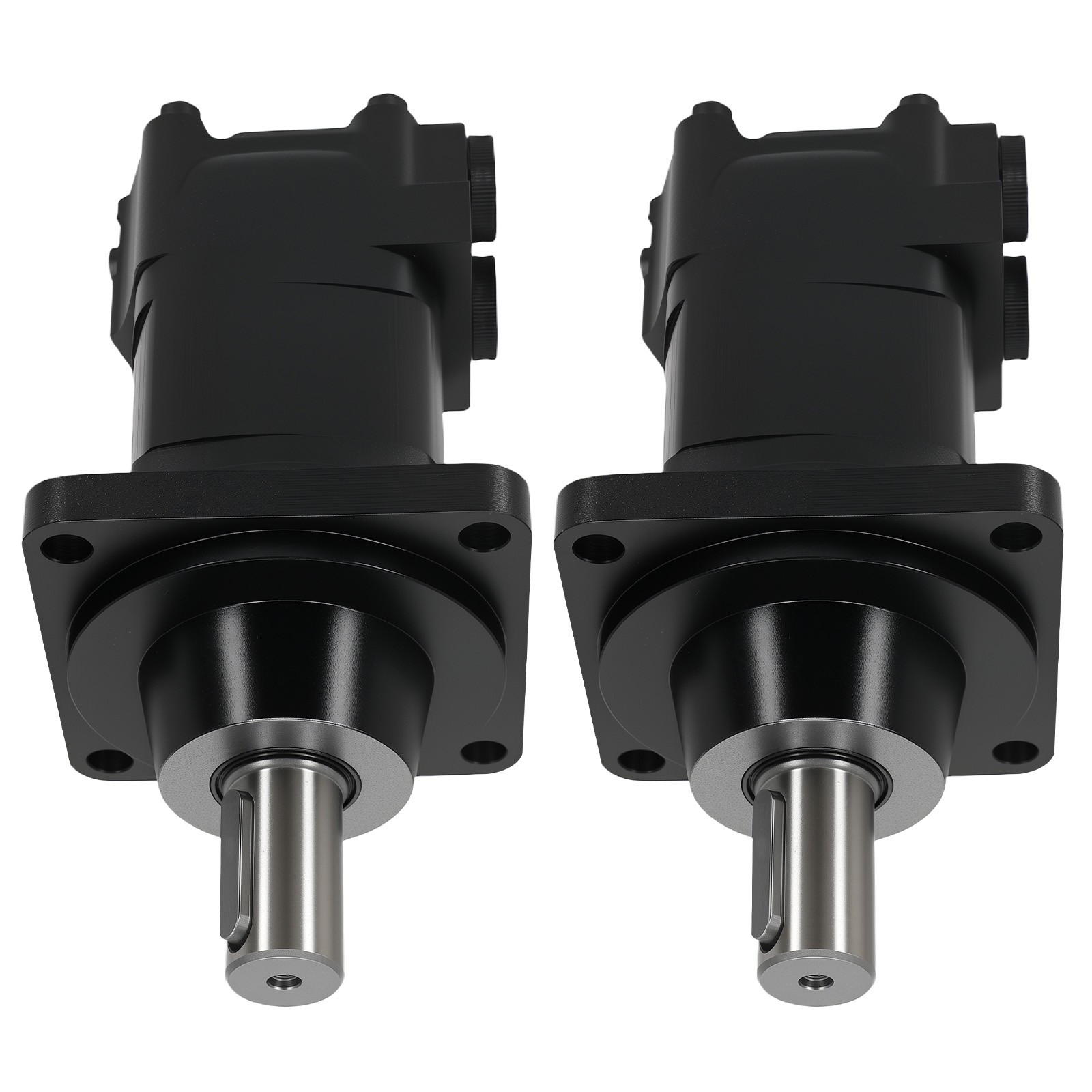

2Pcs 32mm Shaft Orbital Motor OMSW315-151F0527 151F0527 OMSW 315 151F0527 NEW
DESCRIPTION
OE/Part number：
OMSW315151F0527, 151F0527, Brand New
Color: Black
Material: Iron
Fitment Type: Direct Replacement
Output Shaft: 32mm with 1/2 BSP port
Geometric Displacement: 314.9 cm3
Motor size: 315
Geometric displacement( cm^3[in]): 314,9[19.22]
Max speed cont: 240 rpm
Max speed int: 285 rpm
Max torque cont(Nm[lbf in]): 825[7300]
Max torque int(Nm[lbf in]): 1000[8850]
Max output power cont(kW[hp]): 15,0[20.1]
Max output power int(kW[hp]): 17,0[22.8]
Max pressure drop cont(bar[psi]): 200[2900]
Max pressure drop int(bar[psi]): 240[3480]
Max pressure drop peak(bar[psi]):260[3770]
Max oil flow cont(l/min[gpm]): 75[19.8]
Max oil flow int(l/min[gpm]): 90[23.8]
Max starting pressure with unloaded shaft(bar[psi]): 8[115]
Min starting torque at max press drop cont(Nm[lbf in]): 710[6280]
Min starting torque at max press drop int(Nm[lbf in]): 850[7520]
Max inlet pressure cont(bar[psi]): 230[3340]
Max inlet pressure int(bar[psi]): 295[4280]
Max inlet pressure peak(bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): Durability：Made from cast iron, the product resists corrosion, wear, and heat. It doesn't rust easily, ensuring it stays attractive and functional for a long time.
2.Excellent Sealing：The high-pressure seal prevents oil leaks, ensuring smooth operation and reducing maintenance costs.
3.Well-designed：Equipped with quality ball bearings, the product offers strong radial support and pressure resistance for safe use.
4.Easy to Use：Its one-piece design means no extra assembly is needed—just use it right away.
Package included：
1X Hydraulic Orbital Motor
（Showing as the picture）
Note：
1. No instruction included.
2. Professional installation of the product is highly recommended.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
