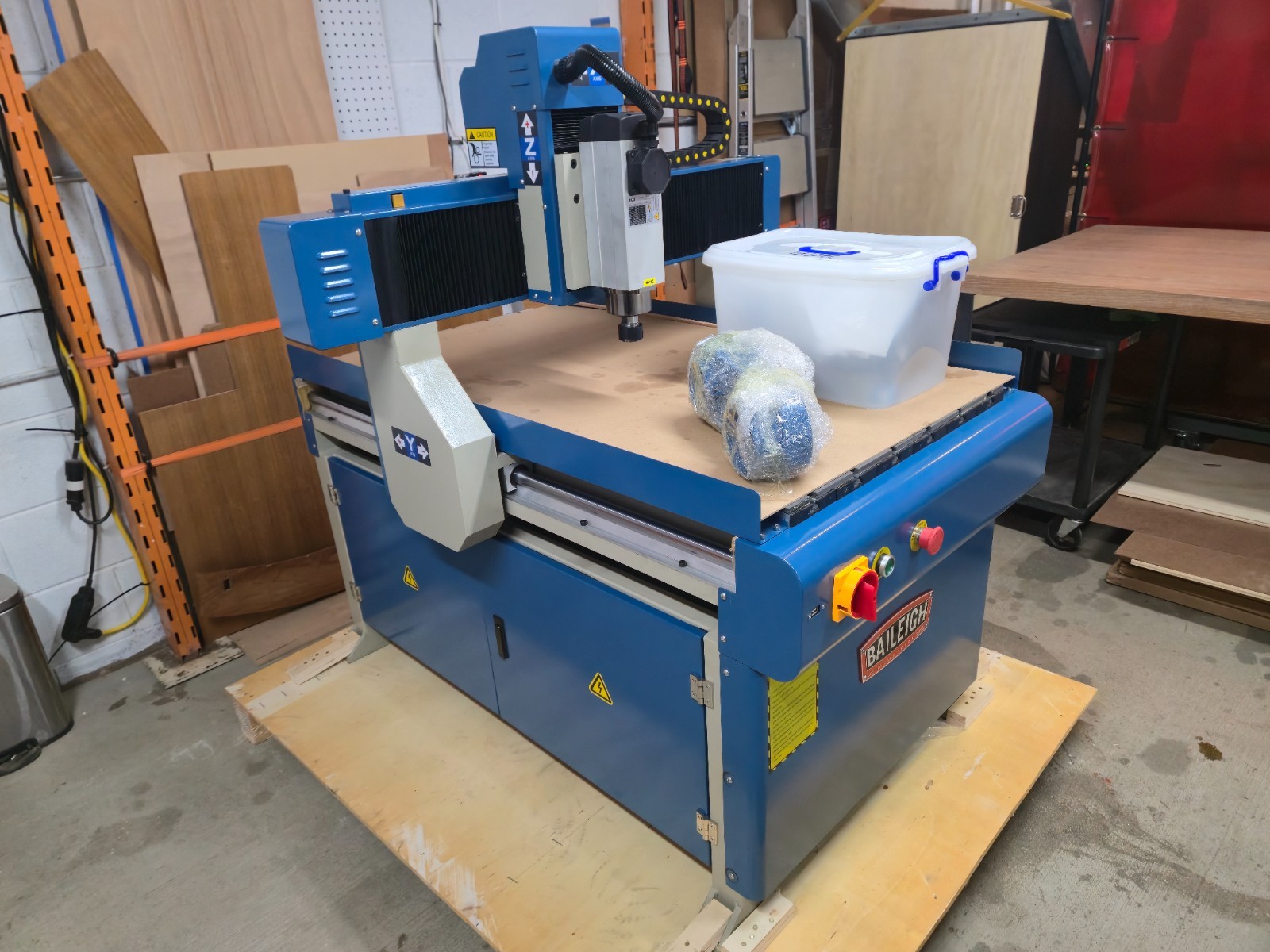

Baileigh Industrial WR-32, 220V 1Ph, 2ft x 3ft CNC Router Table
Warranty has expired, the manufacturer did test it and said it works good. Come as it is, it is new.
- $5000 with shipping included
- $4000 with a local pickup
The WR-32 CNC Router Table comes with software, tooling, and a dust shroud—often not included with competing tables that cost more. Built to last with a cast iron base, the metal router arrives fully assembled. BobCAD-Cam Express Design Software (Included) The WR-32 comes standard with BobCAD-Cam V29 Express programming software. You can design or plot out your project on any computer and load the table via a USB drive. To learn more download a free trial. Recommended for sign-makers, hobbyists, molding companies (plastic parts), research and development (R&D) shops, and industrial wood shops.Features:
2’ x 3’ CNC router table for metal
Recommended for sign-makers, hobbyists, molding companies (plastic parts), research and development (R&D) shops, and industrial wood shops.
Powerful 4.75 hp spindle.
Up to 18,000 rpm variable spindle speed.
Runs on 220-volt single-phase power.
Easy-to-learn design software; just install it onto your computer and start creating patterns. (Details below.)
Upload your design file to the table via a USB drive, then use the convenient handheld controller to move the spindle.
Stepper motors move the spindle at a maximum speed of 6.5" per second.
Ball screw X and Y-axis movement for accurate positioning.
Square slideways clamp the material down and keep it in alignment.
4 collets choices,1/8”, 4mm, 6mm, and 1/2" (1 each) in the ER25 style.
Comes standard with 15 starter router profiles.
Air-cooled spindle prolongs machine life and helps to maintain high cut quality down the road.
4 T-slotted clamps fit on the table to hold the material down for clean cuts.
The structurally strong extruded aluminum table won’t buckle under material weight or spindle pressure.
The table ships pre-built with correct alignment for a fast and simple set-up—just an hour or so to uncrate the table and get started with the software.
Rigid cast base and fully-welded steel frame reduce vibrations, so the table can cut correctly over decades of use.
Dust shroud fits over the spindle and vacuums sawdust off the table while you cut, keeping your shop neat.
4 months of remaining parts warranty.
Lifetime technical support by phone: you can call our experienced reps whenever you have a question or need Number: WR-32
Actual Working Area: 23.6” x 35.4” x 5.12”
Table Size (Length): 53.5"
Table Size (Width): 43.25"
Spindle: Air-cooled spindle
Z Axis Stroke: 3.1"
Maximum Moving Speed (Inches Per Minute): 590
Maximum Engraving Speed (Inches Per Minute): 394
Reposition Accuracy: .0019"
Tool Diameters: ER25 Style in 1/8”, 4mm, 6mm, and 1/2" (1 each)
Power: 220V Single Phase
Horse Power: 4.75hp (3.5kw)
Weight (lbs): 728
Table Style: T-Slot
Notes: Applicable Material: Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel
Shipping Dimensions (Inches): 59 x 48 x 59
Shipping Weight: 800 lbs
