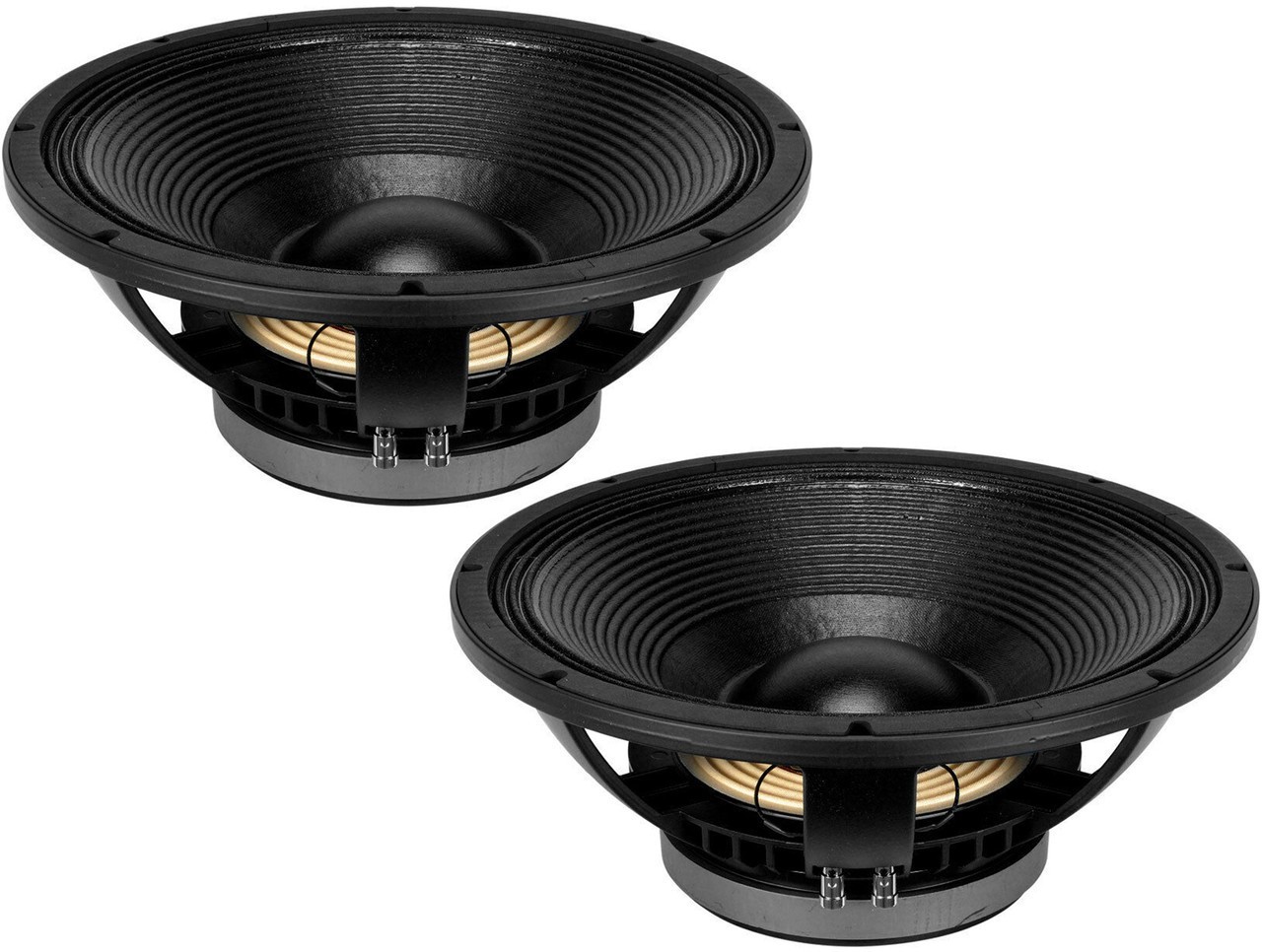

2x B&C 18PS100 18\" Professional Replacement Woofer Speaker 1400 Watt 8-Ohm For Sale

B&C 18PS100-8

Description

The most powerful 18\" in the B&C ceramic product range with its 700 watts RMS power handling, the 18PS100-8 defines the low frequency reproduction \"state of the art\".

The industry-standard B&C Speakers 18PS100 features a 0.83\" long/4\" diameter copper wire voice coil with high thermal capability, and a ventilated magnet assembly, both of which contribute to low power compression. A very low distortion figure is obtained using a double spider design and dual demodulation rings in the magnetic path. The 18PS100 is fortified by a proprietary water-proof cone treatment that facilitates safe use in adverse climatic conditions. This benchmark pro subwoofer driver is found in many famous manufacturers\' well-established loudspeaker enclosures.

• Nominal Diameter18\"Power Handling (RMS) 700 Watts

• Power Handling (max)1,400 WattsImpedance 8 ohms

• Frequency Response30 to 1,000 HzSensitivity 96 dB 1W/1m

• Voice Coil Diameter 4\"

Thiele-Small Parameters

• Resonant Frequency (Fs) 30 HzDC Resistance (Re )5 ohms

• Voice Coil Inductance (Le) 2.1 mHMechanical Q (Qms) 4.6

• Electromagnetic Q (Qes) 0.41Total Q (Qts) 0.39

• Compliance Equivalent Volume (Vas) 8.6 ft.³BL Product (BL) 22.5 Tm

• Diaphragm Mass Inc. Airload (Mms) 202gMaximum Linear Excursion (Xmax )8 mm

• Surface Area of Cone (Sd) 1210 cm²

Materials of Construction

• Cone MaterialCoated PaperVoice Coil Wire MaterialCopper

• Voice Coil FormerFiberglassBasket / Frame MaterialCast Aluminum

• Magnet MaterialFerrite

Mounting Information

• Overall Outside Diameter18\"Baffle Cutout Diameter 16.6\"

• Depth7.75\"Bolt Circle Diameter 17.3\"

• # Mounting Holes 8

• Weight 26.2 lbs
