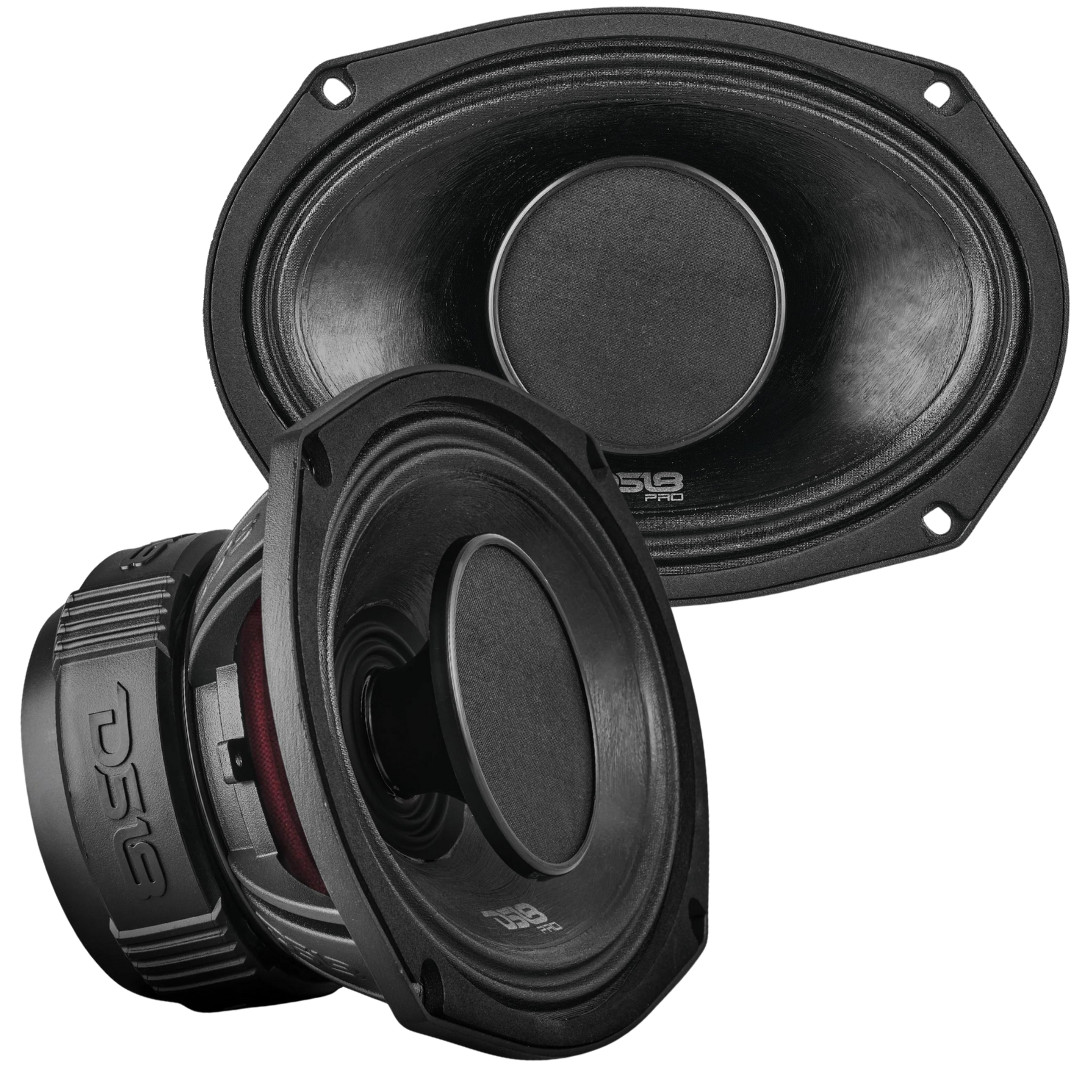

2x DS18 6x9\" 2-Way Loudspeaker with Built-in Driver - PRO-HY69.4B 250W Rms 4-ohm For Sale

The DS18 PRO-HY69.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 6x9\" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume. With a maximum power handling of 500 watts and a sensitivity of 97 dB, it is perfect for motorcycles. This listing includes (2) DS18 PRO-HY69.4B 6x9\" loudspeakers.

2x DS18 6x9\" 2-Way Loudspeaker with Built-in Driver - PRO-HY69.4B 250W Rms 4-ohm

Product Description


ThePRO-HY69.4Bis a high-powered, water-resistant hybrid loudspeaker that combines a 6x9\" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume.

With a maximum power handling of 500 watts and a sensitivity of 97 dB, thePRO-HY69.4Bis perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound.

The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. ThePRO-HY69.4Balso has a nominal impedance of 4 ohms, a frequency response range of 50Hz-20KHz, and a recommended hi-pass crossover of 80Hz for improved audio performance and longevity, making it a great choice for a range of audio applications.

Specifications:


• Nominal Diameter: 6x9\" / 152 x 228mm
• Nominal Impedance: 4 Ohm
• RMS Power Handling: 250W
• MAX Power Handling: 500W
• Sensitivity (1w/1m): 97dB
• Frequency Response: 50Hz - 20Khz
• Recommended HI Pass Crossover: 80Hz
• Number of ways: 2 ways
Woofer Specification:

• Voice Coil Diameter: 1.5\"/ 38.6mm
• Voice Coil Former Material: Glass Fiber
• Winding Material: CCAW
• Cone Material: Water Resistant Paper (IPx5)
• Surround Material: Cloth
• Basket Material: Aluminum
• Basket Color/Finish: Matte Black
• Magnet Material: Ferrite
• Magnet Weight: 27 Oz
• Displacement Volume: 0.051L / 0.0018ft3
Thiele & Small Parameters:

• Equivalent Volume Vas: 14.84L / 0.52ft3
• Excursion (one way) Xmax: 9.2mm
• Free Air Resonance Fs: 87Hz
• Mechanical Factor Qms: 3.629
• Electrical Factor Qes: 0.661
• Total Factor Qts: 0.559
• Mechanical Mass Mms: 14.264g
• Mechanical Compliance Cms: 0.236 mm/N
• BL Factor BL: 6.135
• Voice Coil Inductance Le: 4.22mH
• Cone Area Sd: 210.48 Cm2
• DC Resistance Re: 3.2 ohms
• Mechanical Mass w/o air Mmd: 12.509g
Driver Specifications:

• Voice Coil Diameter: 1\" / 25.4mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Titanium
• Magnet Material: Neodymium
• Horn Diameter: 3.26\" / 83mm
Dimensions:

• Overall Diameter: 9.45 X 6.57\" / 240 X 167mm
• Overall Depth: 4.54\" / 115.4mm
• Front Mount Baffle Cutout: 8.74 X 5.98\" / 222 X 152mm
• Mounting Depth: 4.21\" / 107 mm
• Motor Diameter: 4.61\" / 117mm

THIS LISTING IS FOR (2) DS18 PRO-HY69.4B 6X9\" LOUDSPEAKERS
