INCLUDES:

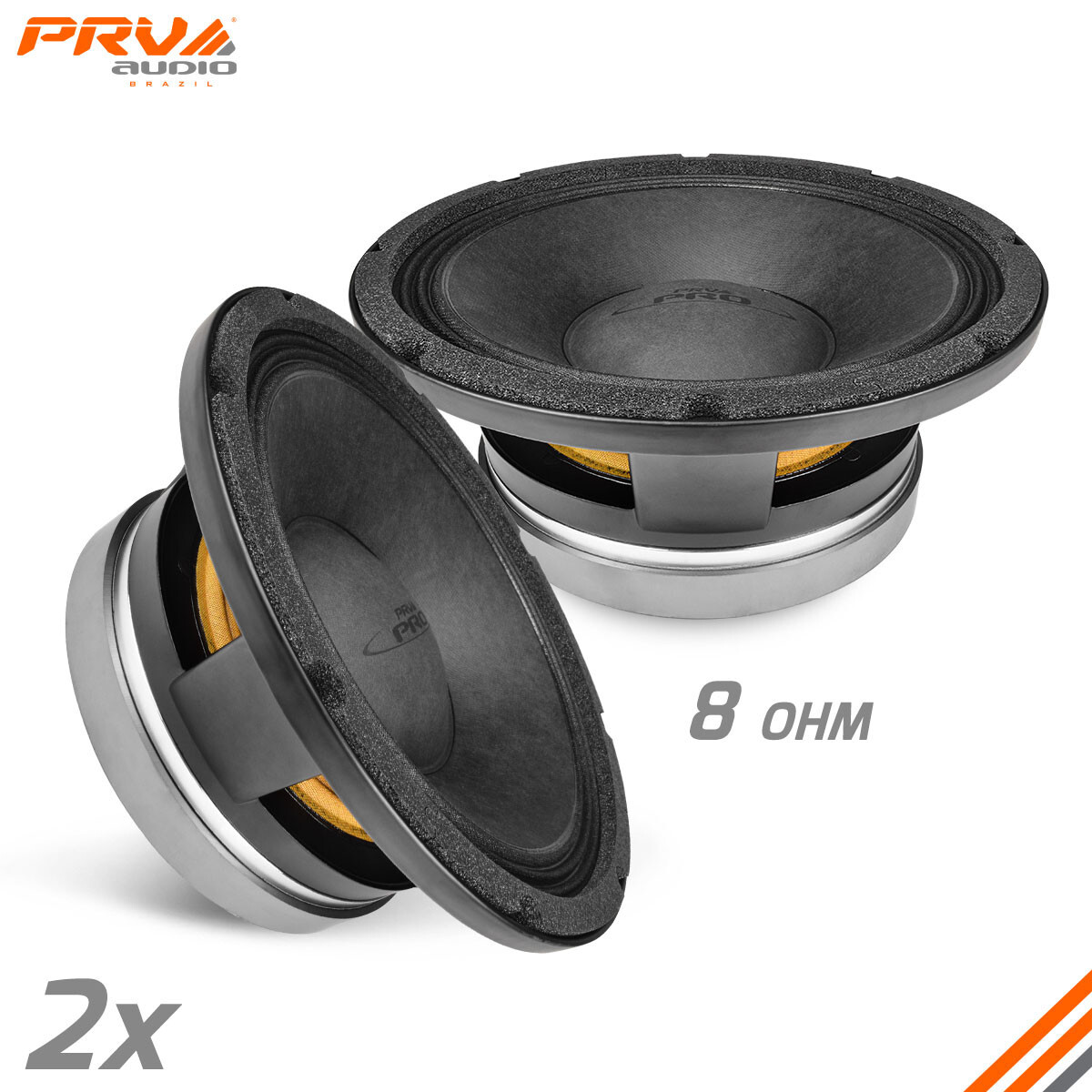

2x 10″ Midrange Speakers 10MR1000 PRO / 8 Ohm High Power and Output PRO Audio Loudspeaker - 2000 Watts package - 1000 Watts each speaker FEATURES:
The 10MR1000 PRO is a high power, and high output midrange from our PRO SERIES primarily designed to perform in small sealed, horn loaded and vented enclosures, making it the perfect choice for a variety of installations, including professional sound reinforcement, live sound, home audio speakers with high outputs, as well as high SPL car audio.
- Excellent performance in 3-way systems, with high detailed percussion instruments tones at a high sensitivity of 100 dB
- Premium paper cone and cloth surround for high clarity, smooth response, and linear excursion at high 1000 Watts RMS program power.
- 3” Inside/outside wound copper voice coil on glass fiber former lend solid power handling capability
- Under spider and rear periphery venting allows cool running voice coil on long-lasting playing sessions.
- Low Qts means high damping and excellent performance in smaller boxes.
This professional midrange loudspeaker delivers smooth, clear vocals that will impress any listener! Its high efficiency makes it easy to power, all thanks to a specially light weight cone designed to deliver smooth vocals and well define midbass tones.
Cast aluminum frame adds structural integrity, while a paper/glass fiber cone attached to a large 3″ voice coil keeps everything under control at high level outputs, making an easy transition to a high frequency driver.
GENERAL SPECIFICATIONSNominal Diameter10″ (254 mm)Nominal impedance8 OhmNominal Power Handling*500 WattsContinuous Program Power (RMS)**1000 WattsMax Peak Power***2000 WattsSensitivity 2.83V at 1m100 dBRecommended Hi Pass Crossover For Full Power Handling150 Hz 12db Per Octave CrossoverFrequency Response75 – 6,000 HzVoice Coil Diameter3″ (75 mm)Voice Coil WireCopperVoice Coil Winding Depth9.2 mmFormer MaterialGlass FiberMagnetic Gap Depth8.0 mmFrame MaterialDie cast AluminumTHIELE-SMALL PARAMETERSEquivalent VolumeVas26.1 lExcursion (mathematical)***Xmax2.60 mmFree Air ResonanceFs73.20 HzMechanical FactorQms7.94Electrical FactorQes0.28Total FactorQts0.27Cone AreaSd391 cm²Mechanical MassMms32.94 gBl FactorBl17.90 TmDc ResistanceRe5.0 OhmInductanceLe0.48 mH at 1 kHzMechanical Mass Without AirMmd34.26 gMechanical ComplianceCms0.122 mm/N
EXTRA INFOOverall Diameter10.23″ (260 mm)Front Mount Baffle Cutout9.13″ (232 mm)Mounting Depth4.31″ (109.5 mm)Overall Depth4.86″ (123.5 mm)Net Weight15.65 Lbs (7.1 kg)Shipping Weight16.75 Lbs (7.6 kg)Carton Dimensions W x L x H11.42″ x 11.42″ x 5.90″ (290 x 290 x 150 mm)
