INCLUDES

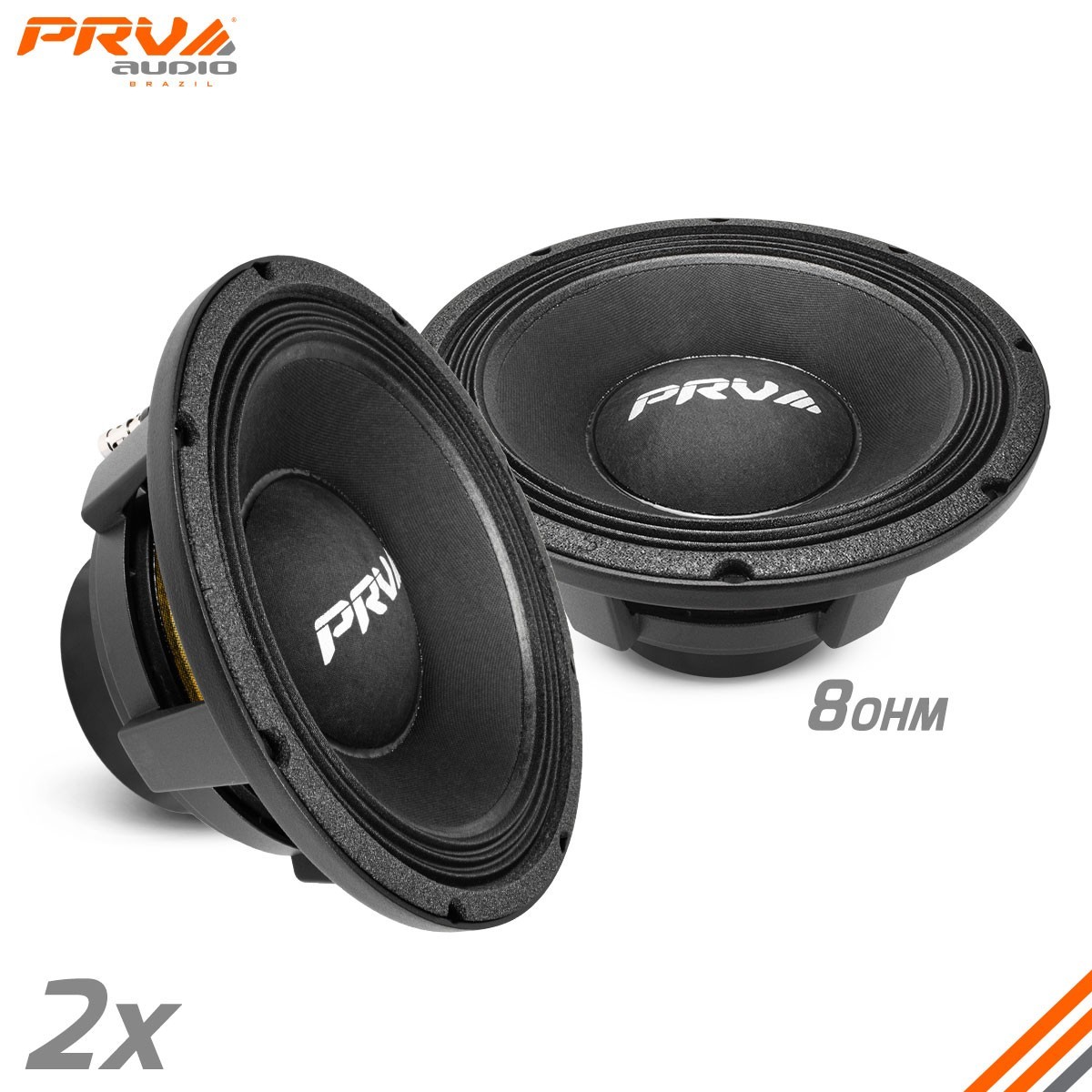

2x PRV Audio 10MR2000-NDY 10\" Midrange Loudspeaker - 4000 Watts Package - 2000 Watts Each Speaker
FEATURES
The PRV Audio 10MR2000-NDY midrange offers outstanding durability and is our most powerful midrange loudspeaker with a 4 inch voice coil. This mid is an ideal option for high power 2 or 3-way systems. It produces excellent vocal support for stage monitors, chuchero boxes, custom car doors and stuntwalls.
A powerful neodymium motor keeps size and weight to a minimum to make it easy to install this mid in any system, even when you are short of space.
- 4″ Inside/Out copper clad voice coil wound on fiberglass former for high-temp performance – 8 Ohm
- One of the most outstanding pro audio midrange for high SPL systems, this 2000 Watts 10″ midrange is one beast of a speaker!
- Excellent performance in compact enclosures and custom car door panels.
- During hard play, the large 4″ voice coil provides very high efficiency while providing smooth and accurate midbass response.
- With its high power handling this speaker can also be used as a midbass loudspeaker when it is kept at only 1000 Watts RMS, you can lower the HPF as low as 95 Hz.
With excellent damping characteristics, the lightweight paper cone and accordion surround gives this mid smooth response up to 6,500 Hz for that incredibly clear vocal response that PRV midranges are known for.
Developed to perform well in tight enclosures, its triple roll surround keeps its cone travel linear at high mibdass excursion.
Featuring a large 4″ voice coil, it provides exceptional sound clarity and ensures durability and consistent performance over time.
Featuring high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio.
The extensive venting through the motor and cast aluminum frame helps to dissipate that heat to keep power compression low even after extended periods of high output.
When it comes to custom doors, this is the most versatile and loud speaker PRV audio offers. The PRV Audio 10MR2000-NDY mid is the best option for keeping your door panel compact and high-performing.
Its lightweight and compact profile makes it the perfect high power loud speaker for custom doors, whether you plan to use it as a Midrange speaker to boost vocals or as a Midbass speaker to hit strong punch tones.
Recommended Amplifier configurations and crossoverHPFusing PRV Digital Signal Processor DSPwhen using the recommended power below:
Middle Power System –MIDBASSApplication
• 95 Hz at 18 dB per octave filter Crossover / BT18
when using750 to 1000 Watts RMSpower
4 Speakers– 1x QS3000 at 2 Ohm, all wired in parallel
8 Speakers– 1x QS7000 at 1 Ohm, all wired in parallel
or
High Power System –MIDRANGEApplication
• 145 Hz at 18 dB per octave filter Crossover / BT18
when using1500 to 2000 Watts RMSpower
4 Speakers– 1x QS7000 at 2 Ohm, all wired in parallel
8 Speakers– 1x QS16000 at 1 Ohm, all wired in parallel
If you have compression drivers on your system the recommendedLPFis 2,500 Hz at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONSNominal Diameter10\" (254 mm)Nominal impedance8 OhmNominal Power Handling*1000 WattsContinuous Program Power (RMS)**2000 WattsMax Peak Power***4000 WattsSensitivity 2.00V at 1m99 dBRecommended Hi Pass Crossover For Full Power Handling160 Hz 12db Per Octave CrossoverFrequency Response90 - 6,500 HzVoice Coil Diameter4\" (101 mm)Voice Coil WireCCAWVoice Coil Winding Depth14.5 mmFormer MaterialGlass FiberMagnetic Gap Depth9.0 mmFrame MaterialDie Cast AluminumEXTRA INFOOverall Diameter10.27\" (261 mm)Front Mount Baffle Cutout9.09\" (231 mm)Mounting Depth5.08\" (129 mm)Overall Depth (with grill)5.49\" (139.5 mm)Net Weight12.78 Lb (5.8 kg)Shipping Weight14.55 Lb (6.6 kg)Carton Dimensions W x L x H12.6\" x 12.6\" x 7.8\" (320 x 320 x 195 mm)EXTRA INFOOverall Diameter10.27\" (261 mm)Front Mount Baffle Cutout9.09\" (231 mm)Mounting Depth5.08\" (129 mm)Overall Depth (with grill)5.49\" (139.5 mm)Net Weight12.78 Lb (5.8 kg)Shipping Weight14.55 Lb (6.6 kg)Carton Dimensions W x L x H12.6\" x 12.6\" x 7.8\" (320 x 320 x 195 mm)
