INCLUDES:

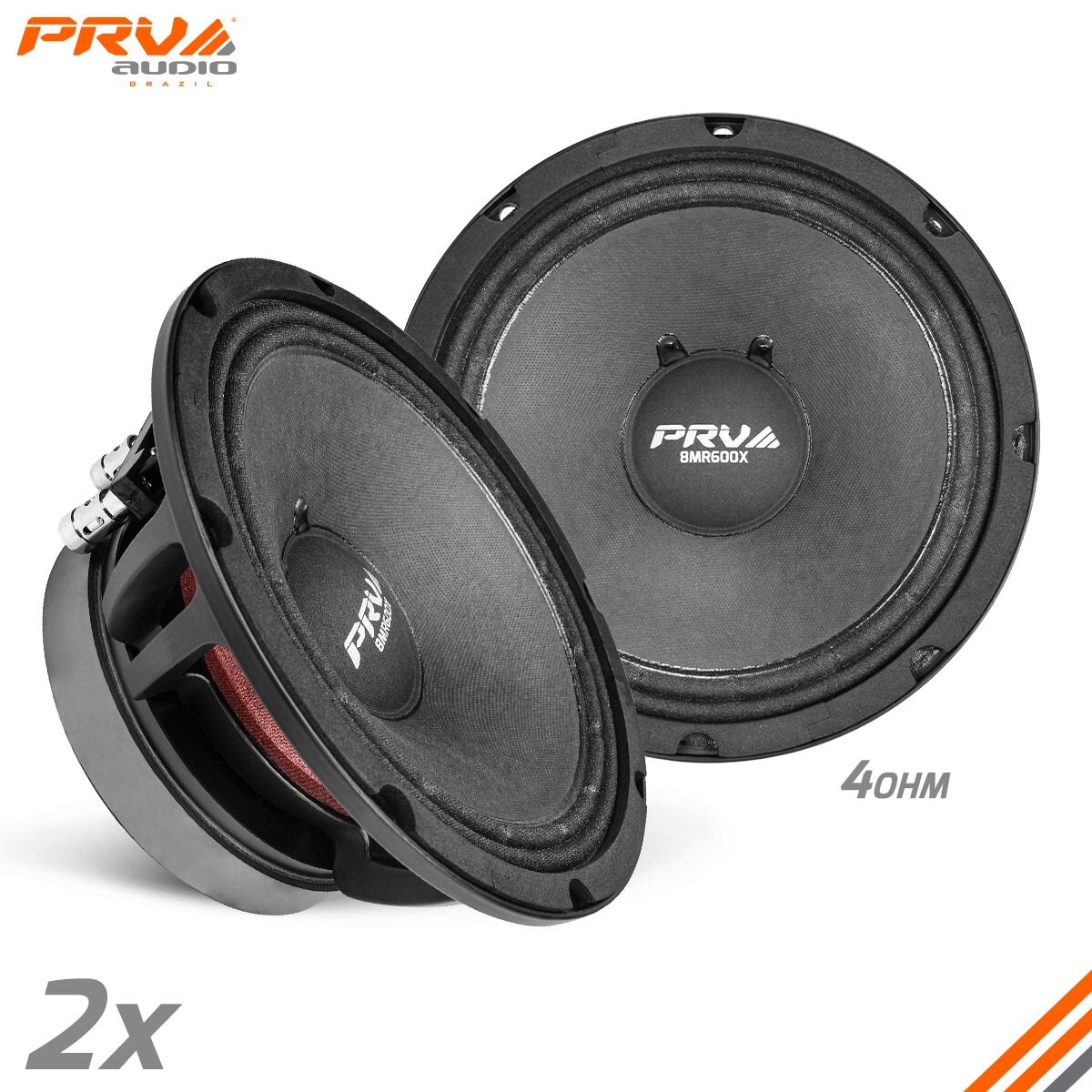

2x 8MR600X-4PRO Audio 8" Midrange Loudspeaker 4 Ohm - 1200 Watts Package - 600 Watts per speaker
FEATURES:
X-treme midrange performance is what PRV Audio’s 8MR600X-4 is all about. Made to be a class leading mid range in the car audio realm, this driver has a sensitivity of 98 dB and only weighs 7 pounds. This low frequency driver is optimized for custom car audio applications to perform best on very small enclosures, a pro audio version is available at 8ohms 8MR600X
The powerful magnet assembly assures high flux concentration. The ventilated basket designed between the basket and the magnetic structure significantly improves thermal connection and heat dissipation, further increasing power handling and lowering power compression.
Capable of high output and low distortion, this midrange is perfect for filling in the important midrange response in any high output sound system.
- 2″ DUAL layer CCAW voice coil wound on polyimide former, 4 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more Midbass output
- 600 watts continuous program power rating makes high acoustical output
- Excellent performance in compact enclosures
- Unique double roll dimple suspension design
The 51 mm (2 in) copper clad aluminum wire is wound in a double layer using a high temperature resin adhesive on a strong polyimide former and features a generous 14.2 mm winding length for extended Xmax and less distortion.
The 2″ voice coil also ensures high heat dissipation and the necessary motor strength to deliver high sensitivity even on high power with the minimum distortion.
A Qts of 0.37 and an unique double roll dimple suspension design allows for a flat response from 200Hz to 2500Hz, even at high excursion controlling well its natural paper cone at its 5.10 mm Xmax.
Its composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound.Its extended frequency response up 8,500hz makes this midrange driver a perfect to combine with anySuper Tweeter.
Recommended Amplifier configurations and crossoverHPFusingPRV Digital Signal Processor DSPwhen using the recommended power below:
Custom System, High Power
2 Speakers– 1xMDX1200.2 at 1 OhmBridged at 2 Ohm, 2 speakers in parallel
• 135 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power
Custom System, Middle Power
4 Speakers– 1xMDX1800.1 at 1 Ohm, 4 speakers in parallel
• 125 Hz at 18 dB per octave filter Crossover / BT18
when using up to 450 Watts RMS musical power
Custom System, High Power
4 Speakers– 1xMDX2500.1 at 1 Ohm, 4 speakers in parallel
• 135 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power
If you have a super tweeter on your system the recommendedLPFis 5,500 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONSNominal Diameter8" (203 mm)Nominal impedance4 OhmNominal Power Handling300 WattsContinuous Program Power (RMS)600 WattsMax Peak Power1200 WattsSensitivity 2.83V at 1m98 dBRecommended Hi Pass Crossover**
**For Full Power Handling145 Hz**
**12db Per Octave CrossoverFrequency Response at -10dB85 - 8,500 HzVoice Coil Diameter2.0" (51 mm)Voice Coil WireCCAWVoice Coil Winding Depth14.2 mmFormer MaterialPolyimideMagnetic Gap Depth8.0 mmFrame MaterialDie cast aluminumEXTRA INFOOverall Diameter8.21” (208.5 mm)Front Mount Baffle Cutout7.35” (186.5 mm)Mounting Depth3.65” (92.5 mm)Overall Depth4.03” (102.5 mm)Net Weight7.04 Lbs (3.20 kg)Shipping Weight7.60 Lbs (3.45 kg)Carton Dimensions W x L x H8.85” x 8.85” x 4.92”
(225 x 225 x 125 mm)
