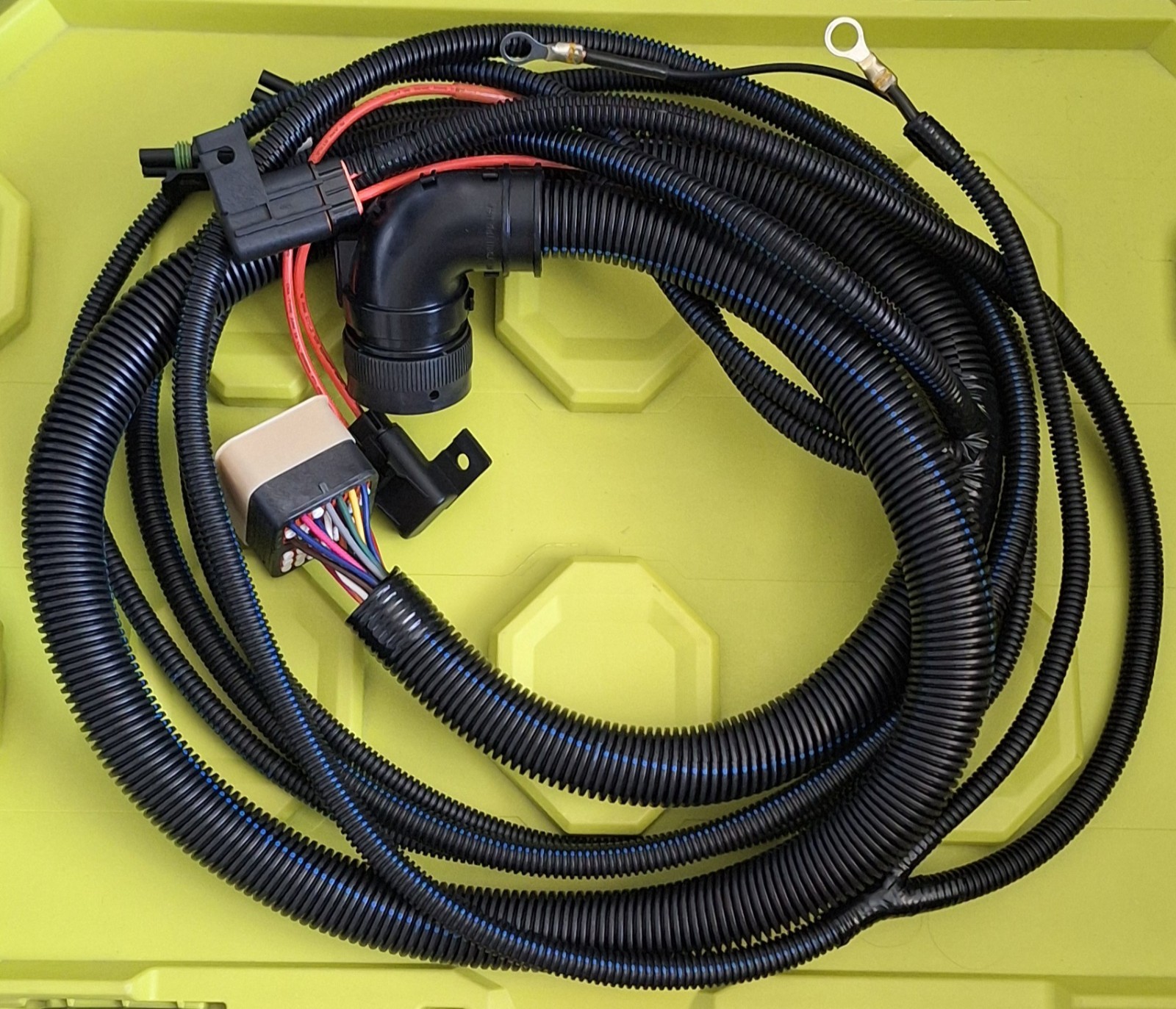

3406E/C12/C10/3176B Cat 40Pin ECM Custom Truck Harness for Engine Swap
This custom-built Cat Engine Harness is a must-have for anyone looking to swap out their mechanical engine and connect their 40-pin Cat ECM to their Kenworth, Peterbilt, Freightliner, International, etc. You must specify that your truck is a Peterbilt when ordering the harness because of the clutch switch location. The clutch switch on a Peterbilt is typically mounted on the clutch linkage on the underside of the cab floor.*I WILL BUILD THIS HARNESS WHEN PURCHASED.*Here is a listing of engine prefixes that this harness will work for
3406E - 5EK, 1LW, 6TS, 5DS
C12 - 1YN, 9NS
C10 - 2PN, 8YS
3176B - 9CK
Harness comes with orange and red 3/4" LEDs for the Check Engine and Engine Warning lights, 6 wire diagnostic connector, plus complete instructions and wire schematic.With this harness the interior portion of the harness will connect to Jake, cruise, clutch and brake switches. In the instructions I provide you with Kenworth and Peterbilt part #s for the correct switches. The interior harness is wired for a 3 position Deutsch connector that will connect to a Cat throttle sensor.
With this harness the ECM will not control engine fan operation. The engine fan operation will rely on the same switch and circuit system that is used for the mechanical engine. Consisting of: 1.) A 2-wire thread in Horton style fan switch in the head or thermostat housing. 2.) Keeping all the A/C wiring and switches. 3.) Keeping the manual dash mounted fan override switch and wiring.With this harness the tach and speedometer will be powered by the truck harness and speed sensors in the flywheel housing and the transmission tailshaft, not the ECM. If you need the ECM to power these gauges, that can be done. Message me and we can discuss it.This harness was designed to be installed on a conventional truck. If your truck is a cabover this harness will probably be too short. Message me with dimensions and details. I can build the harness to fit your truck.This harness was designed to be installed on a conventional truck with the batteries under the driver's door. If your batteries are placed elsewhere message me, and I can build the harness to fit your truck.
Component details: The 40 Pin connector shell is DEUTSCH, 31 cavity bulkhead connector is DEUTSCH, all splices are protected by 4:1 heat shrink tubing is puncture resistant and provides superior moisture protection. Automotive grade wiring, all DEUTSCH terminals are SOLID (not stamped) and GOLD PLATED (not nickel) for MAXIMUM CONNECTION TRANSMISSION and DURABILITY!
