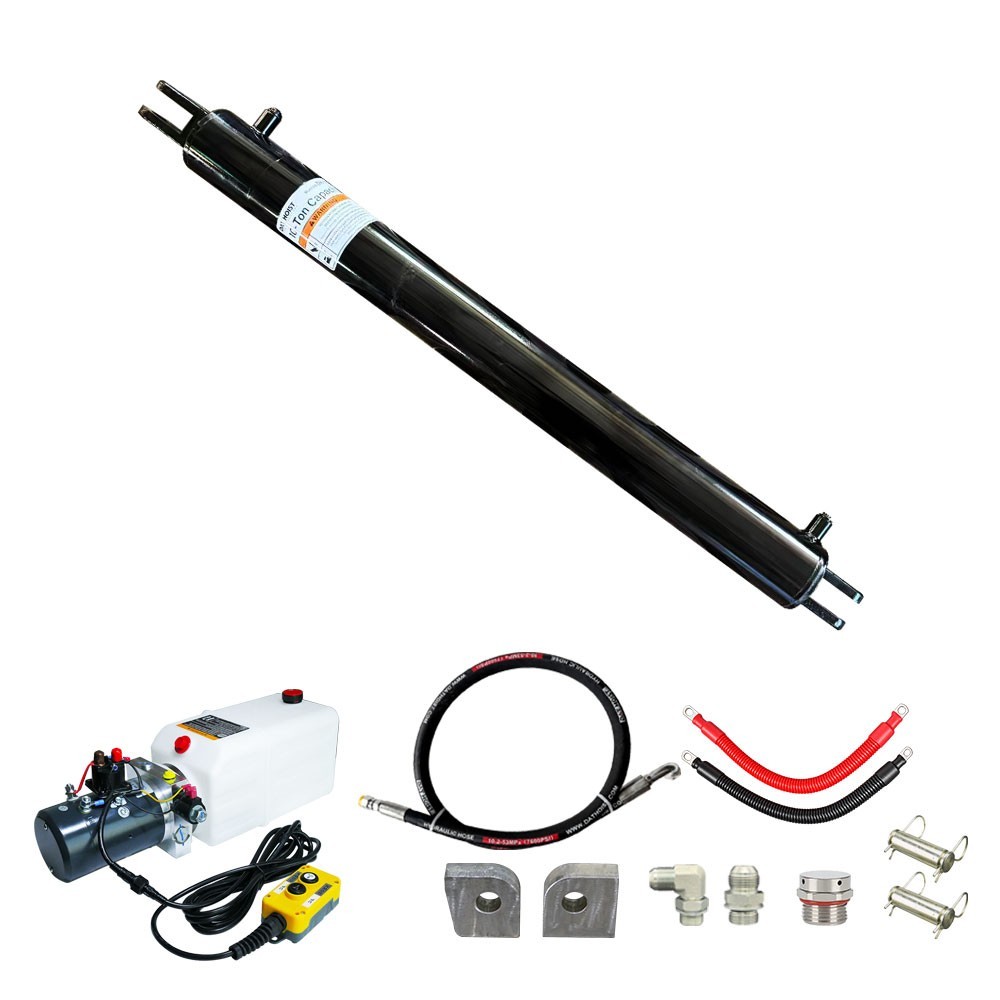

3536 10 Ton Cylinder Complete Kit | 12V Single Acting Pump | 1.6KW 8L
FAQ
Q: What is included in the 3536 10 Ton Cylinder Complete Kit?
A: The kit includes one 3536 hydraulic cylinder, one 12V single-acting hydraulic power unit with a 1.6KW motor and 8L reservoir, one 15FT wired controller, one 2FT hydraulic hose with one straight end and one 90° end, one straight hydraulic fitting, one 90° hydraulic fitting, one 2FT 2AWG power cable set, one upper cylinder mounting bracket, one lower cylinder mounting bracket, one breather vent, two cylinder mounting pins, and four cotter pins.
Q: Are upper and lower cylinder mounting brackets included?
A: Yes. This kit includes one upper cylinder mounting bracket and one lower cylinder mounting bracket, along with two cylinder mounting pins and four cotter pins.
Q: Does this kit include a hydraulic power unit?
A: Yes. The kit includes a 12V DC single-acting hydraulic power unit with a 1.6KW motor, 8L reservoir, and 15FT wired controller.
Q: How does the single-acting hydraulic system work?
A: Hydraulic pressure extends the cylinder. Retraction is typically accomplished by gravity or the weight of the load, depending on the design of the trailer or hoist system.
Q: What hydraulic hose and fittings are included?
A: The kit includes one 2FT hydraulic hose with one straight end and one 90° end, plus one straight hydraulic fitting and one 90° hydraulic fitting.
Q: What power cable is included?
A: One 2FT 2AWG power cable set is included for connecting the hydraulic power unit to a suitable 12V power source.
Q: Is a breather vent included?
A: Yes. One breather vent is included with this kit.
Q: What are the cylinder bore and stroke?
A: The cylinder has a 3.5-inch bore and a 36-inch stroke.
Q: What is the rod diameter?
A: The cylinder uses a 1.75-inch induction-hardened, chrome-plated steel rod.
Q: What is the cylinder working pressure and maximum listed force?
A: Maximum working pressure is 3,000 PSI and the listed maximum cylinder force is 28,863 lb.
Q: Does “10 Ton” mean the cylinder itself is rated for exactly 10 tons?
A: No. The 10 Ton designation refers to the compatible hoist application/system. The cylinder itself has a listed maximum force of 28,863 lb at 3,000 PSI. Actual lifting capacity depends on hoist geometry, cylinder mounting position, dump angle, load position, hydraulic pressure, trailer dimensions, and overall system design.
Q: What are the cylinder dimensions?
A: The listed retracted length is 46.25 inches, extended length is 82.25 inches, and C dimension is 40.92 inches.
Q: What hydraulic port does the cylinder use?
A: The cylinder uses an SAE #8 hydraulic port.
Q: Can this kit be used on a dump trailer?
A: Yes. It is suitable for compatible single-acting hydraulic lifting systems used in dump trailers, scissor hoists, trucks, agricultural equipment, material-handling equipment, and other industrial hydraulic applications.
Q: What should I verify before installation?
A: Verify cylinder dimensions, mounting geometry, hydraulic connections, hose routing, 12V electrical supply, battery capacity, cable routing, and overall system requirements before installation. Additional installation components may be required for your specific trailer or hoist structure.
Why Choose This Complete Cylinder Kit
This package combines the 3536 heavy-duty hydraulic cylinder with a 12V 1.6KW single-acting hydraulic power unit and 8L reservoir, along with the primary hydraulic and electrical connection components needed for a compatible lifting system.
The 3.5-inch bore, 36-inch stroke, hardened chrome-plated rod, 3,000 PSI maximum working pressure, 15FT controller, 2AWG power cable, hydraulic hose, fittings, mounting pins, and cotter pins make this a practical solution for compatible dump trailer and hoist applications.
Fitment & Installation Guide
Measure before ordering. Confirm the 46.25-inch retracted length, 82.25-inch extended length, 36-inch stroke, mounting geometry, and available clearance before installation.
Important: Upper and lower cylinder mounting brackets are not included. Additional mounting or installation components may be required depending on your trailer, hoist structure, and hydraulic system.
3536 Hydraulic Cylinder | 12V Single Acting Pump | 1.6KW Motor | 8L Reservoir | 15FT Controller
The 3536 10 Ton Cylinder Complete Kit with Single Acting Pump provides the essential hydraulic and electrical components for compatible dump trailer, truck, agricultural, material-handling, and industrial lifting applications.
The heavy-duty welded hydraulic cylinder features a 3.5-inch bore, 36-inch stroke, and 1.75-inch induction-hardened chrome-plated rod. With a maximum working pressure of 3,000 PSI, the cylinder provides a maximum listed force of 28,863 lb.
Power is supplied by a 12V single-acting hydraulic power unit with a 1.6KW motor and 8L reservoir. The kit also includes a 15FT wired controller, 2FT hydraulic hose, straight and 90° hydraulic connections, 2FT 2AWG power cable set, one upper cylinder mounting bracket, one lower cylinder mounting bracket, one breather vent, two cylinder mounting pins, and four cotter pins.
Key Features
- 3536 Heavy-Duty Hydraulic Cylinder – Welded steel construction for demanding hydraulic applications
- 3.5" Bore × 36" Stroke
- 1.75" Chrome-Plated Induction-Hardened Rod
- 3,000 PSI Maximum Working Pressure
- 28,863 lb Maximum Cylinder Force
- 12V Single Acting Hydraulic Power Unit
- 1.6KW Electric Motor
- 8L Hydraulic Reservoir
- 15FT Wired Controller
- 2FT Hydraulic Hose – One straight end and one 90° end
- Straight & 90° Hydraulic Connections
- 2FT 2AWG Power Cable Set
- Upper & Lower Cylinder Mounting Brackets Included
- Breather Vent Included
- 2 Cylinder Mounting Pins + 4 Cotter Pins
- Precision-Honed Cylinder Tube
- Ductile Iron Piston & Threaded Gland Design
- Corrosion-Resistant Black Painted Finish
Technical TypeHydraulic Cylinder Complete Kit with Power UnitBrandDAT HOISTCylinder TypeWelded CylinderCylinder ActionSingle-ActingBore Diameter3.5"Stroke36"Rod Diameter1.75"Maximum Working Pressure3,000 PSIMaximum Cylinder Force28,863 lbRetracted Length46.25"Extended Length82.25"C Dimension40.92"Hydraulic PortSAE #8Cylinder Weight77 lbStandard ColorBlackHydraulic Power UnitSpecificationDetailsPower Unit TypeSingle ActingVoltage12V DCMotor Power1.6KWReservoir Capacity8LController15FT Wired ControllerApplicationCompatible Single-Acting Hydraulic SystemsWhat's Cylinder3.5" Bore × 36" Stroke1Hydraulic Power Unit12V Single Acting, 1.6KW, 8L1Wired Controller15FT1Hydraulic Hose2FT, One Straight End + One 90° End1Straight Hydraulic FittingHydraulic Connection190° Hydraulic FittingHydraulic Connection1Power Cable Set2FT, 2AWG1Upper Cylinder Mounting BracketMounting Hardware1Lower Cylinder Mounting BracketMounting Hardware1Breather VentHydraulic Reservoir Accessory1Cylinder Mounting PinSteel2Cotter PinPin Retention Hardware4Not Included
- Additional trailer- or hoist-specific mounting hardware
- Hydraulic fluid
Compatible Applications
- Dump Trailers
- Scissor Hoist Trailers
- Telescopic Trailers
- Gooseneck Trailers
- Tilt & Load Trailers
- Trucks & Waste-Management Equipment
- Agricultural Equipment
- Material-Handling Equipment
- Industrial Hydraulic Equipment
Important Fitment Information
- Verify cylinder dimensions and mounting geometry before ordering
- Confirm that the included upper and lower mounting brackets match your application requirements
- Confirm 3,000 PSI hydraulic-system compatibility and SAE #8 cylinder port requirements
- Verify 12V power-source capacity, 2AWG cable routing, and electrical connections
- Install and check the included breather vent according to your hydraulic reservoir requirements
- Maximum cylinder force is not the same as trailer GVWR or complete hoist-system lifting capacity
- Professional installation is recommended for new or modified hydraulic hoist systems
