Product Descriptions:
We Committed to innovation, cutting-edge technology and high-quality materials, it facilitates the provision of cost-effective e-bike batteries to meet riders' various transportation needs and even their desire to explore sports and the outdoors.
Please note before buying:
1, your bicycle voltage is how much, if it is 48V to buy 48V battery, if it is 36V to buy 36V battery, you can also see from your original battery or control center can see how much voltage you need battery.
10Ah,15Ah,20Ah, 30Ah represent the battery capacity, representing the mileage
2. Whether the battery is the right size to fit into your bike frame
3. When charging, connect the power supply first and then the battery
4. Do not completely use up the battery's power, and it is better for the battery to charge every time you retain some power
Certified to Meet UL 2271 Safety Standards and can provide documentation showing certification on request.
The creepage distance and electrical gap distance in the charger are sufficient, the product does not pose a fire risk, will not cause components to overheat or explosion, and the output has a fuse to protect
the battery pack from overcurrent conditions. Battery charging input and output cables are also adequately protected against stress.
The plug meets the size requirements of the relevant standards, and there is no risk of electric shock to the user. The fuse complies with relevant standards and does not pose a risk of fire or explosion in the
event of failure. The product has been marked and labeled in accordance with the standards
Specification:
Parameter
36V 10Ah
36V 14Ah
36V 20Ah
48V 8Ah
48V 10Ah
Nominal Voltage
36V
36V
36V
48V
48V
Nominal Capacity
10Ah
14Ah
20Ah
8Ah
10Ah
Nominal Watt Hour
360WH
504WH
720WH
384WH
480WH
Composed Type
10S4P
10S5P
10S7P
13S3P
13S4P
Built-in BMS
30A (30Amp)
30A(30Amp)
30A(30Amp)
30A(30Amp)
30A(30Amp)
Fit Motor Power
0-1000Wmax
0-1000Wmax
0-1000Wmax
0-1500W max
0-1500W max
Charge Cut-off Voltage
42V
42V
42V
54.6V
54.6V
Discharge Plug
T-head (with XT60 adapter)
Battery Weight
3.15KG
3.5KG
4.5KG
2.8KG
3.2KG
Battery Charger
42V 2A
42V 2A
42V 2A
54.6V 2A
54.6V 2A
Battery Pack Cell
Domestic Grade A 18650 cells
Dimension
210*92*70mm
210*110*70mm
220*140*70mm
Parameter
48V 14Ah
36V 16Ah
48V 20Ah
/
/
Nominal Voltage
48V
36V
48
/
/
Nominal Capacity
14Ah
16Ah
20Ah
/
/
Nominal Watt Hour
672WH
576WH
960WH
/
/
Composed Type
13S5P
13S8P
13S7P
/
/
Built-in BMS
30A(30Amp)
30A(30Amp)
30A(30Amp)
/
/
Fit Motor Power
0-1500W max
0-1000W max
0-1500W max
/
/
Charge Cut-off Voltage
54.6V
42V
54.6
/
/
Discharge PlugT-head(with XT60 adapter//
Battery Weight
3.4KG
3.15KG
5.6KG
/
/
Battery Charger
54.6V 2A
42V 2A
54.6V 2A
/
/
Battery Pack Cell
Domestic Grade A 18650 cells
Dimension
270*107*70mm
/
Max Discharge style="font-size: medium; font-family: "Market Sans", Arial, sans-serif;">
The Charger is UL 62368-1 certified and can provide documentation showing certification on request.
The Battery is UL 2849 UL 2272 certified and can provide documentation showing certification on 10AH 100W-1000WNominal Voltage: 36VRated Capacity: 10AhMax Constant Discharge Current:30A( BMS)
Apply for: 100W-1000W MotoreBikeElectric bicyclebike
Battery Type:Lithium Ion (Li-Ion)
Size/Weight: 210*92*70mm(3.15kg) (8.3*3.6*2.8inch)Charger : 42V 2 A
Discharge: T head
Battery Cell: 18650 A Grade
Weight:2.90KG
36V 14AH 100W-1000WNominal Voltage: 36VRated Capacity: 14AhMax Constant Discharge Current:30A( BMS)
Apply for: 100W-1000W MotoreBikeElectric bicyclebike
Battery Type:Lithium Ion (Li-Ion)
Size/Weight: : 42V 2 A
Discharge: T head
Battery Cell: 18650 A Grade
Weight:3.50KG
36V 16AH 100W-1000W
Nominal Voltage: 36VRated Capacity: 16AhMax Constant Discharge Current:30A( BMS)
Apply for: 100W-1000W MotoreBikeElectric bicyclebike
Battery Type:Lithium Ion (Li-Ion)
Size/Weight: : 42V 2 A
Discharge: T head
Battery Cell: 18650 A Grade
Weight:3.15KG
36V 20AH 100W-1000WNominal Voltage: 36VRated Capacity: 20AhMax Constant Discharge Current:30A( BMS)
Apply for: 100W-1000W MotoreBikeElectric bicyclebike
Battery Type:Lithium Ion (Li-Ion)
Size/Weight: 220*140*70mm(4.5kg) (8.66*5.51*2.76in)Charger : 42V 2 A
Discharge: T head
Battery Cell: 18650 A Grade
Weight:4.50KG
48V 8AH 100W-1500WNominal Voltage: 48VRated Capacity: 8AhMax Constant Discharge Current:30A( BMS)
Apply for: 100W-1500W MotoreBikeElectric bicyclebike
Battery Type:Lithium Ion (Li-Ion)
Size/Weight: 266*72*70mm(2.8kg) (10.5*2.8*2.8inch)Charger : 54.6V 2 A
Discharge: T head
Battery Cell: 18650 A Grade
Weight:2.8KG
48V 10AH 100W-1500WNominal Voltage: 48VRated Capacity: 10AhMax Constant Discharge Current:30A( BMS)
Apply for: 100W-1500W MotoreBikeElectric bicyclebike
Battery Type:Lithium Ion (Li-Ion)
Size/Weight: 268*94*70mm(3.2kg) (10.6*3.7*2.8inch)Charger : 54.6V 2 A
Discharge: T head
Battery Cell: 18650 A Grade
Weight:3.2KG

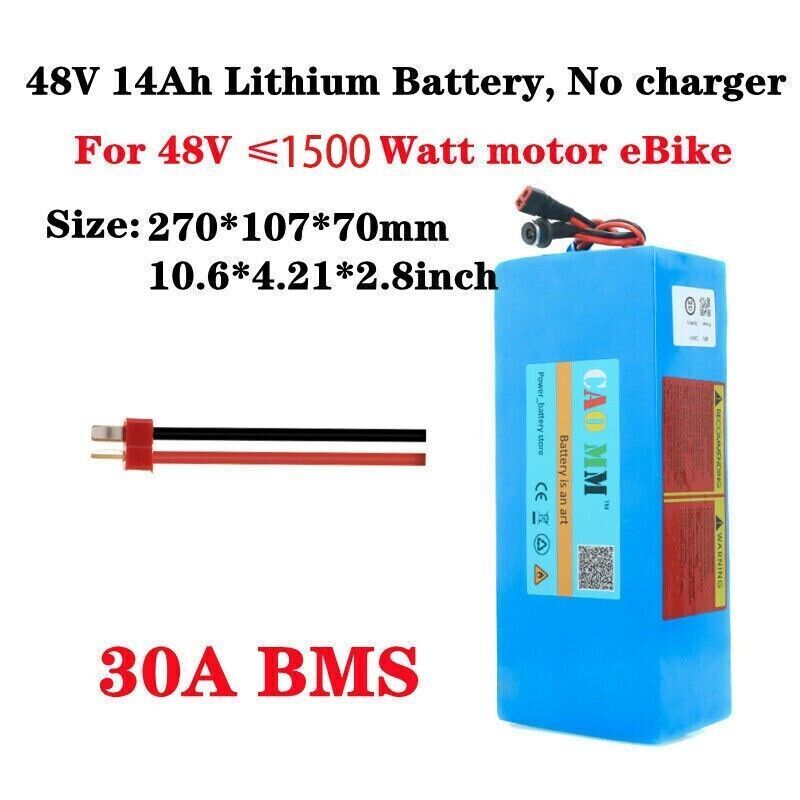

48V 14AH 100W-1500WNominal Voltage: 48VRated Capacity: 14AhMax Constant Discharge Current:30A( BMS)
Apply for: 100W-1500W MotoreBikeElectric bicyclebike
Battery Type:Lithium Ion (Li-Ion)
Size/Weight: 270*107*70mm(3.4kg) (10.6*4.21*2.8inch)Charger : 54.6V 2 A
Discharge: T head
Battery Cell: 18650 A Grade
Weight:4.20KG
48V 20AH 100W-1500W
Nominal Voltage: 48VRated Capacity: 20AhMax Constant Discharge Current:30A( BMS)
Apply for: 100W-1500W MotoreBikeElectric bicyclebike
Battery Type:Lithium Ion (Li-Ion)
Size/Weight: 270*140*70mm(5.6kg) (10.63*5.51*2.76in)Charger : 54.6V 2 A
Discharge: T head
Battery Cell: 18650 A Grade
Weight:5.60KG
Package List :1 x 36V / 48V Lithium ion Battery1 x 2A / 5AFast Charger orWithout Charger (optional1 x T Plug /AndersonPlug1 x T to XT60 Female Plug /AndersonFemale Plug
