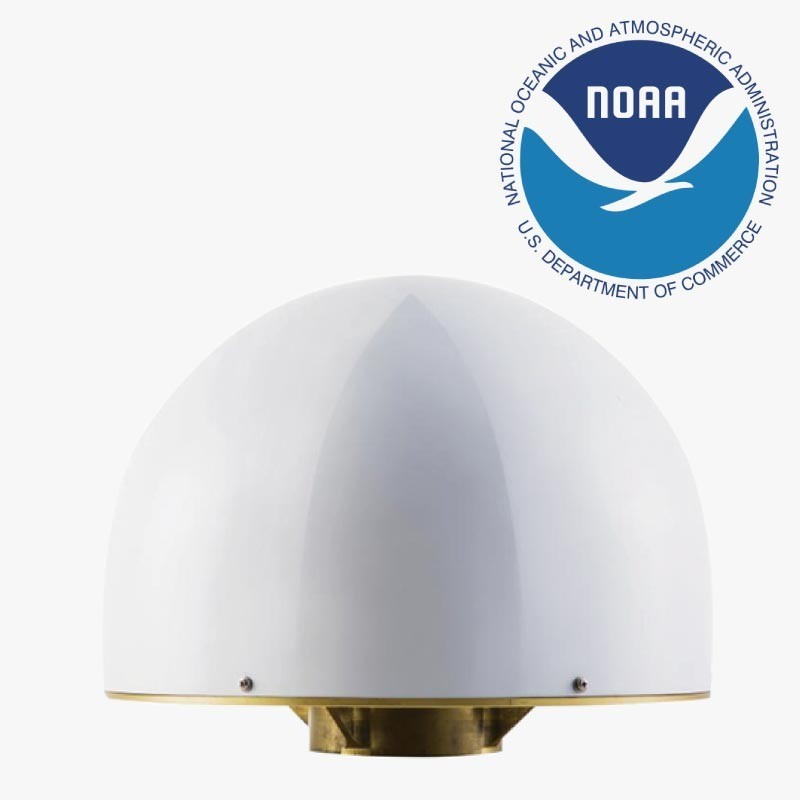

3D Choke Ring GNSS Tripleband + L-band antenna (IP67) Calibrated by NGS For Sale

Calibrated by NGS Survey Quadband (L1/L2/L5/L6) 3D Choke RingGNSSantenna. Water & dust-proof for permanent outdoor installations. Sub-millimeter phase center repeatability.
Ideal for reference stations (CORS), base station, geodetic survey, deformation monitoring, earthquake forecast, but also for fixed installations supporting L-band.

Good to know:
– Compatible with allsimpleRTK3Bboards as well as any other multiband GNSS receiver in the market
– Bulk pricing starting 50 units
– This product is a cheaper alternative to Trimble Ti-V2, Novatel GNSS-750 or Leica AR20 Choke Ring antennas

Includes:

–3D Choke Ring GNSS Tripleband + L-band antenna (IP67)
– 1.5m pigtail cable with TNC to SMA connector
– 2.5m pigtail cable with TNC to TNC connector

• Supported positioning signal bands:
  • GPS: L1, L2, L5
  • GLONASS: G1, G2, G3
  • BeiDou: B1, B2, B3
  • Galileo: E1, E5, E6
  • QZSS: L1, L2, L5, L6
  • Navic: L5
  • L-band: L6
  • SBAS: WAAS, EGNOS, MSAS and GAGAN
• Polarization: RHCP
• Peak gain: 7dBi
• Axial Ratio @ zenith: <3dB
• Azimuth Coverage: 360 degrees
• Impedance: 50 ohm
• Phase center error: ±1mm
• Calibration file available

• Supply voltage: 3-12V
• Typical supply current @ 3V: 60mA
• Average LNA gain: 40dB
• Maximum Noise Figure: 1.5dB
• Maximum VSWR: 1.5

• Maximum length: 380mm
• Weight: 10kg
• Mounting style: 5/8” x 11TPI thread
• Connector: TNC female
• Cable length:
  • Includes 1.5 meter cable terminated in SMA male
  • Includes 2.5 meter cable terminated in TNC style="box-sizing: border-box; --bdt-inverse: initial; border: 0px; font-style: inherit; font-weight: inherit; outline: 0px; padding: 0px; vertical-align: baseline; list-style-position: initial; list-style-image: initial; margin: 0px 0px 0px 2em !important;">
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP67 (excluding air vent in screw hole, which can be sealed when installed)
  • RoHS: Yes
