3mil Gloss White Vinyl Gray Air-Egress Bubble-Free Permanent Adhesive #302GAE For Sale

Gloss Vinyl PG-302GAE

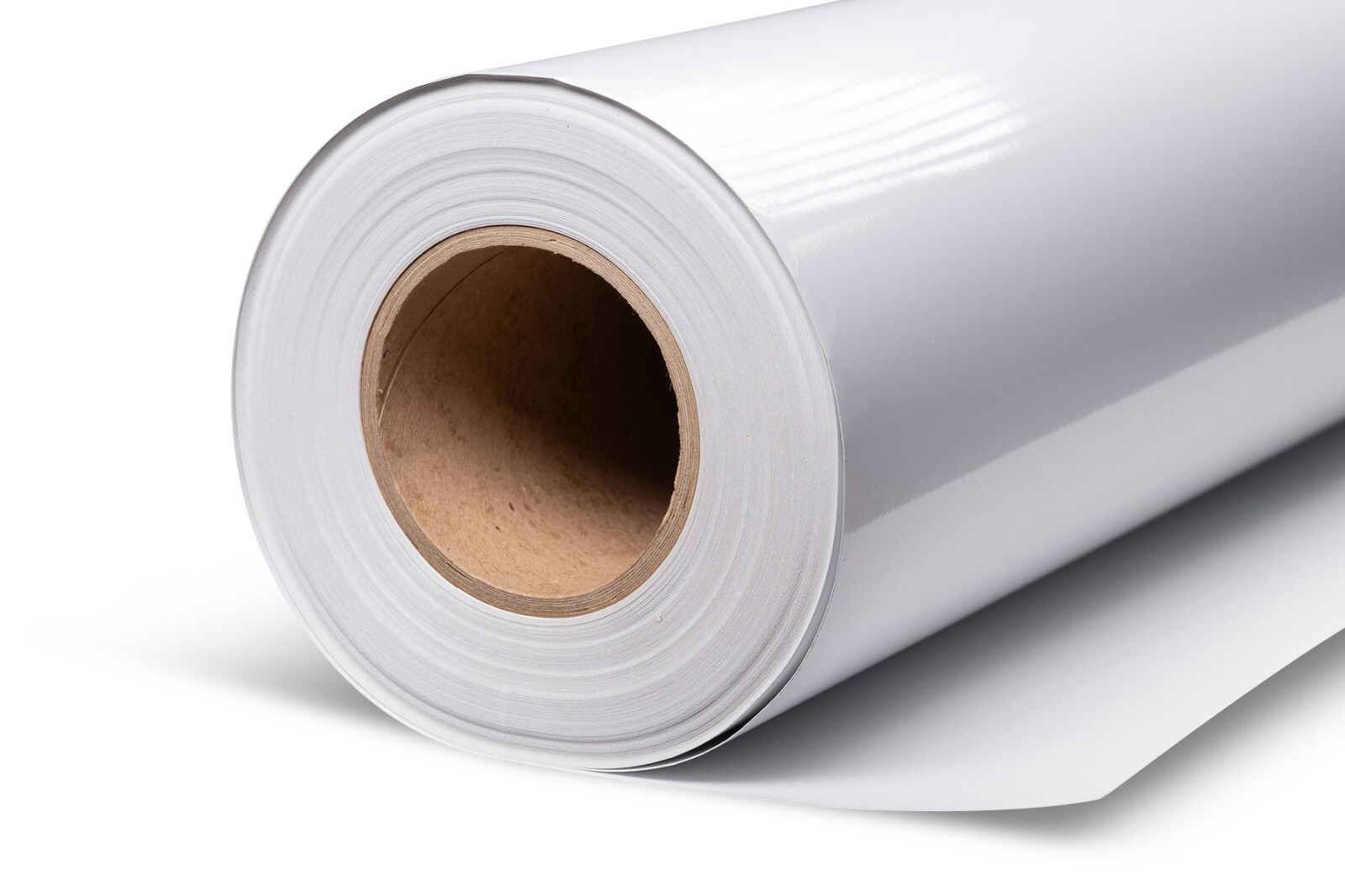

Gloss Vinyl PG-302GAE:PG-302GAE is a 3.0 mil polymeric gloss white flexible calendared vinyl film coated with a grey permanent solvent pressure sensitive adhesive with a 90# air egress layflat liner. This film is designed to accept a variety of solvent-based inkjet and UV curable inks common to wide format digital printing systems. The grey adhesive creates a permanent bond to a variety of common substrates used in graphics applications. The 90# air-egress layflat liner offers excellent product layflat in a variety of ambient conditions along with ease of application of large format graphics. THIS FILM IS COMPARABLE TO THE FOLLOWING BRANDS:

• Catalina/Mojave/Nekoosa SPM300GWF &SPE300GWF/GR
• Arlon 4560GT 4560GTX
• Avery MPI 2903 & 2903EZ
• Oracal Orajet 3651G & 3165RA
• 3M IJ35 & IJ35C-20

FILM:

• Film Type White Polymeric Vinyl
• Film Thickness (mils/μm) 3.0 / 76 (+/- 10%)
• Film Weight (gsm) 104
• Gloss (60°) >80
• Opacity (%) >99
• Tensile Strength (lbs/in) MD > 3500 / CD > 3500
• Elongation (%) MD > 200 / CD > 200
• Dimensional Stability (FTM 14) MD < 0.90 mm / CD < 0.60 mm

ADHESIVE:

• Adhesive Type Solvent Acrylic
• Adhesive Thickness (mils/μm) 0.8-1.1 / 20-28
• Adhesive Color Grey
• Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 15 min 2.5 / 11
• Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 24 hrs 3.5 / 15

LINER:

• Liner Weight (#/gsm) 90 / 145
• Liner Type White 2-Sided PE Coated Kraft Air-Egress
• Liner Thickness (mils/μm) 7.0 / 180
• Release Force @ 300” / min (g/2”) 25-45

PERFORMANCE GUIDANCE:

• Application Temperature > +40 °F
• Service Temperature -40 °F to 180 °F
• Shelf Life 1 year
• Storage Temp / Rel. Humidity 70 °F / 50%
• Outdoor Durability 5 years
