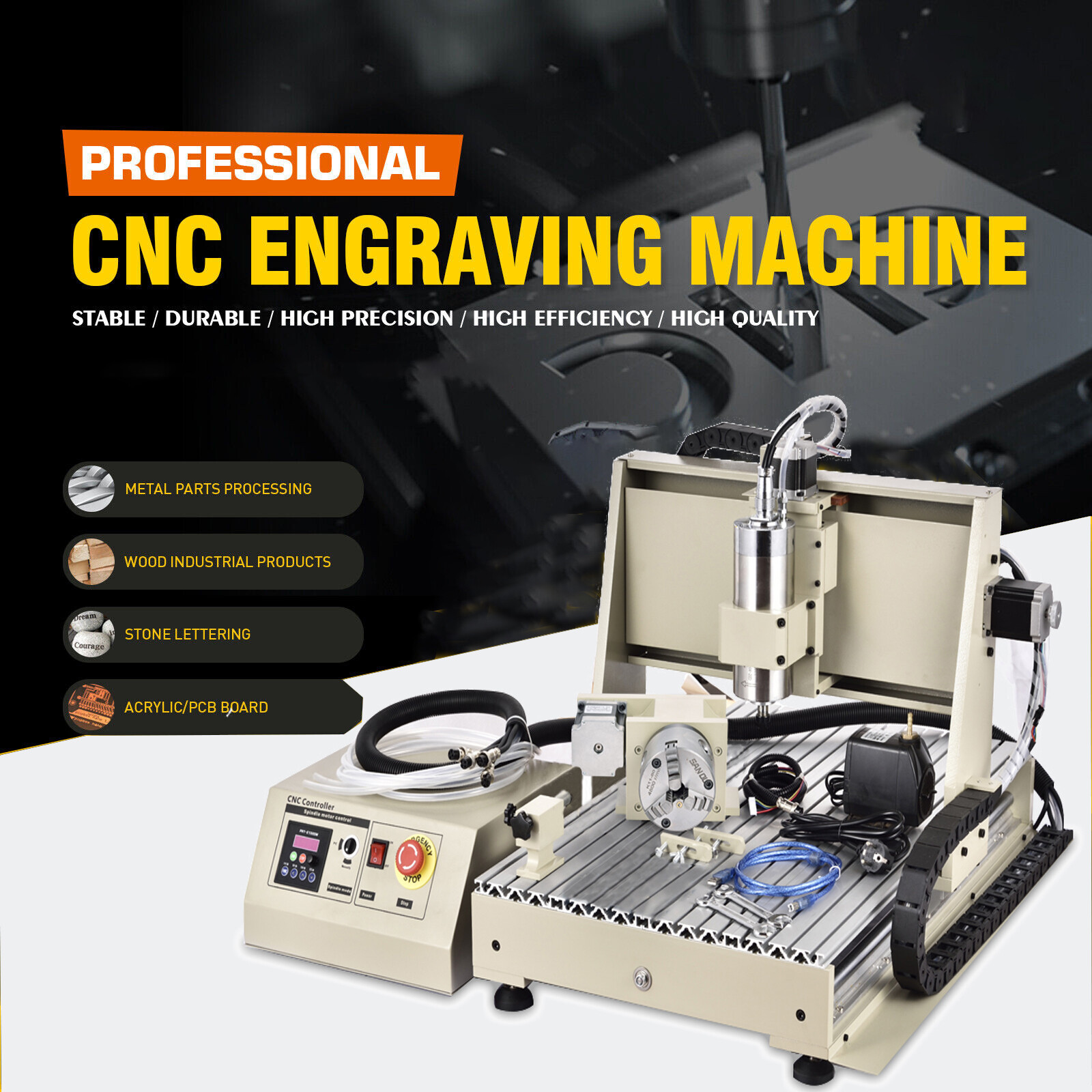

4 Axis 6040 CNC Router Engraver 3D Cutter Milling Drill Engraving Machine 1500W For Sale

SKU: 1500W-6040TUSB-1Note:We will ship the Router Engraver from our US warehouse, and the Controller we provide will be shipped from the warehouse in China.Description:1. This 6040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.2. It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.3. It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, inde

4 Axis 6040 CNC Router Engraver 3D Cutter Milling Drill Engraving Machine 1500W-6040TUSB-1

Note:We will ship the Router Engraver from our US warehouse, and the Controllerwe provide will be shipped from the warehouse in China.

Description:
1. This 6040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.2. It can work with various materials(metallic & non-metallic), such as: wood,pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, compositeboard plywood. and soft metal, like aluminum, copper and silver to engravethem into 3D/2D works etc.3. It can used for engraving: advertising signs, PCB, nameplates, badges, seals,bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate,PVC foaming board, indentation plates, signs, construction models,
instrument panels, wooden products, etc.4. The mini router Frame is movable. The machine can connect with computeras other external device such as printer, scanner...5. With the assist of the ROUTER 6040T, your design idea will be real-time display.Description:Dimensions: 22 x 8 x 3cm

Please note: this item works with ONLY

The usb self-check light, you can type the \" scroll\" on the keyboard to activate it.

Directional motion control: X+, X-, Y+, Y-, Z+, Z-, A+, A-Feed rate control: F+, F-Jog rate: J+, J-Spindle speed: speed up, slow downProgramming: E-stop, cycle start, spindle on/off, Redo, single step, original point
Package Include 1 * Cableengraving machine parameters:
X, Y, Z Working Area: 600(Y)*390（X）*120(Z)mm
Outside dimension: 865*680*570mm（L*W*H）
Table size: 770（Y）*490（X）mm
Lathe structure: 6061/6063 Aluminium alloy
Max. Feeding height: ≤100mm

Drive unit:
X axis---1605 Ball Screws
Y axis---1605 Ball Screws
Z axis---1204 Ball Screws

Sliding unit:
X axis---High intensity Chromeplate shaft
Y axis---High intensity Chromeplate shaft
Z axis---High intensity Chromeplate shaft
Stepping motor: 57 two-phase 3A 150N.cm
Spindle motor

（tips：1.The spindle motor must connect with the VFD.

2.It cannot directly connect with the supply voltage (AC110V/220V).

3.Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.

Outside dimension: 65*158mm

Material: 304 stainless steel,Copper coil, Pressure cast aluminum pipe water jacket

VOLTS,current,power: AC110V, 60Hz,5A,1.5 KW VFDSpindle motor: 1.5 KWWaterCooled

Spindle speed: 24000 rpm

Max working frequency: 400Hz

Principal axis collet: ER11collet,Standard configuration :6mm

Nut Model: ER11-A

Cooling: Water-cooling

Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM

Lubrication way: lubricated by high grease
Repeat accuracy: 0.05mm

Spindle precision: radial beat acuities 0.03mm

Carving Instructions: G code / TAB files / nc file / NCC files

Communication interface: through USB connection with computer

Software environment: windows XP / win7 32bits system

Working Speed: 50-1500mm / min(different material with different speed settings)Maximum Idle speed: 0-1500mm/min Control box parameters:Operating Voltage: AC110V

Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive

Computer connection: USB port

Command code: G code

Acceptable software: EMC2

Protection: Emergency stop button




Feature: 1. The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced
the processing abilty of the machine and can be used toprocess aluminum alloy and hard wood.

2.water cooling spindle works more stable and durable.

3.High quality accurate ball Screws drive make the engrving more precision.Anti-blackflash,high precision,long life circle.

How to USE:

1. Assembling and locating the machine on steady desk well.

2. Make sure that your computer has a 25pin USB port output.

3. Place the contral box in a ventilated dry place where there is no dust,no moisture

4. Connecting the control box with the machine and you computer and make surethe plug will not come off.

5. Correctly connect the machine with the controller. Don\'t suspended the cable whichconnect the Spindle motor with axis(X,Y,Z,A).Otherwise. It willdamage the driver of the controller.

6. Correctly instal the Spindle motor and the heat pump. The heat pump should be coveredcompletely in the water, then turned on the electric current tocheck whether the water-cooling system working well.

7. Installing a control software and Drive such as the or EMC2on your computer.

8. Fllowing our manual or guideline to set uo the software.

9. Before turn on the machine, please check all the cable and water- cooling system tomake sure they are working fine.

10. You can enjoy making you dream with using our machine now. Highlights of water cooling system :
It can cool the spindle and protect the machine
Avoid the spindle burn out
Can engrave the high hardness or metal
It can improve the efficiency and accuracy of the machine.PaymentDelivery detailsTerms of salesAbout usContact usPaymentWe accept payment 。Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer\'s responsibility.Delivery detailsShipping:2-9 working days to: USATerms of sales
