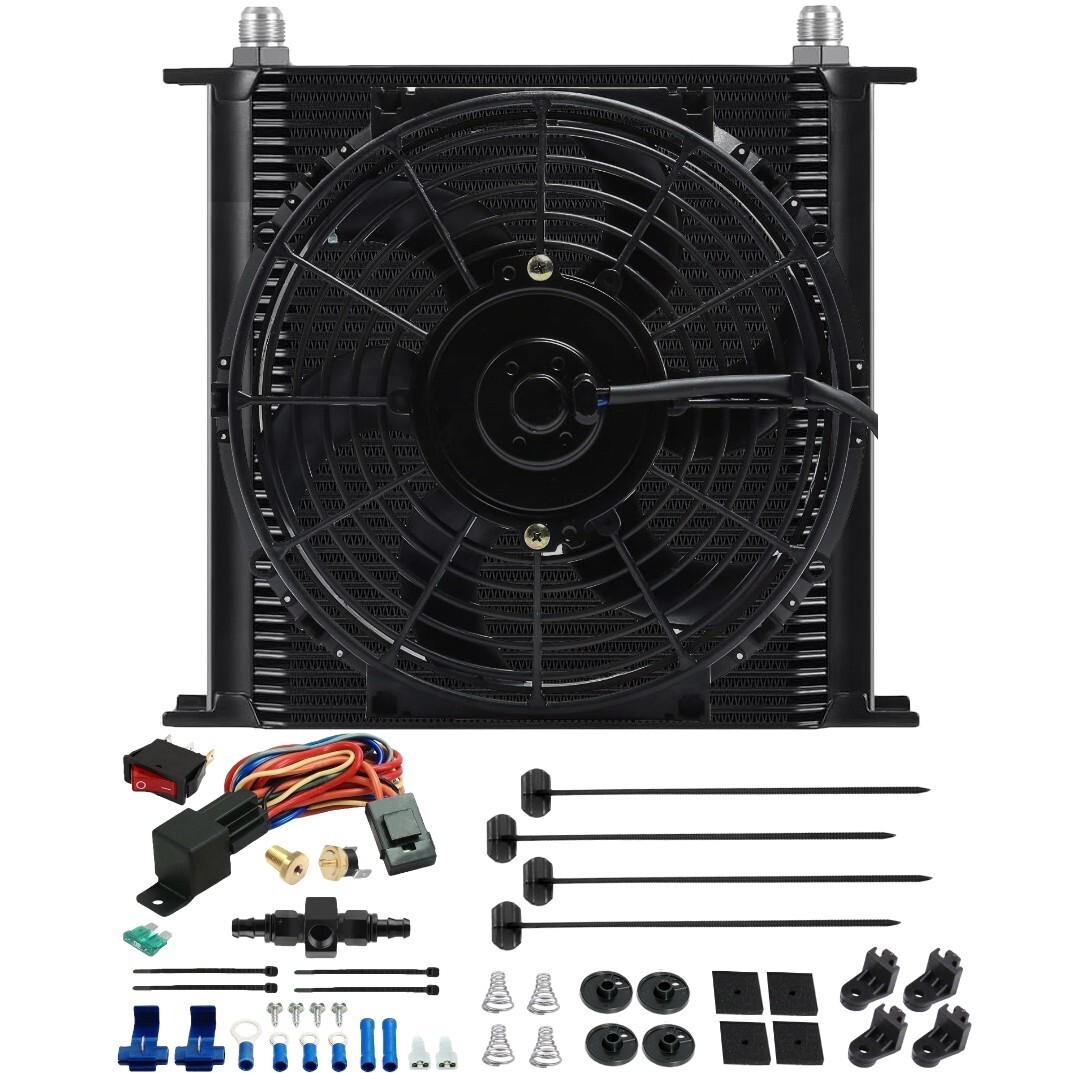

40 ROW ENGINE TRANS-MISSION OIL COOLER ELECTRIC FAN HOSE ADAPTER TEMP SWITCH KIT For Sale

Fluid Cooler:

• 40 row stacked aluminum heavy duty engine transmission oil cooler.

• Furnace brazed aluminum construction and integrated mounting tabs.
• 2 inch deep turbulator-equipped plates and black powder coat finish.
• 0.95 liters of fluid intake capacity with a 246 psi burst pressure rating.
• Dimensions: 2" x 11.8" x 13" with AN fittings and 56K BTU per hour.

Electric Fan:

• Universal 12 volt high performance 10-11 inch electric cooling fan.
• Upgraded 90 watt motor draws 9 amps, producing over 1861 CFM.
• Configured as an air puller by default or reversible to an air pusher.
• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 11.5" x 10.75" x 2.5" thickness at center and 1.4" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components AN in-line electric fan thermostat temperature switch kit.
• 1/8" inch NPT brass thread-in probe and dual pin disconnect switch.
• Preset to power fan at preset temperature, turn-off is 15 degrees less.
• Anodized aluminum barbed straight push-on hose fitting adapters.
• Measures temp of any liquid including oil, water and coolant fluid.
