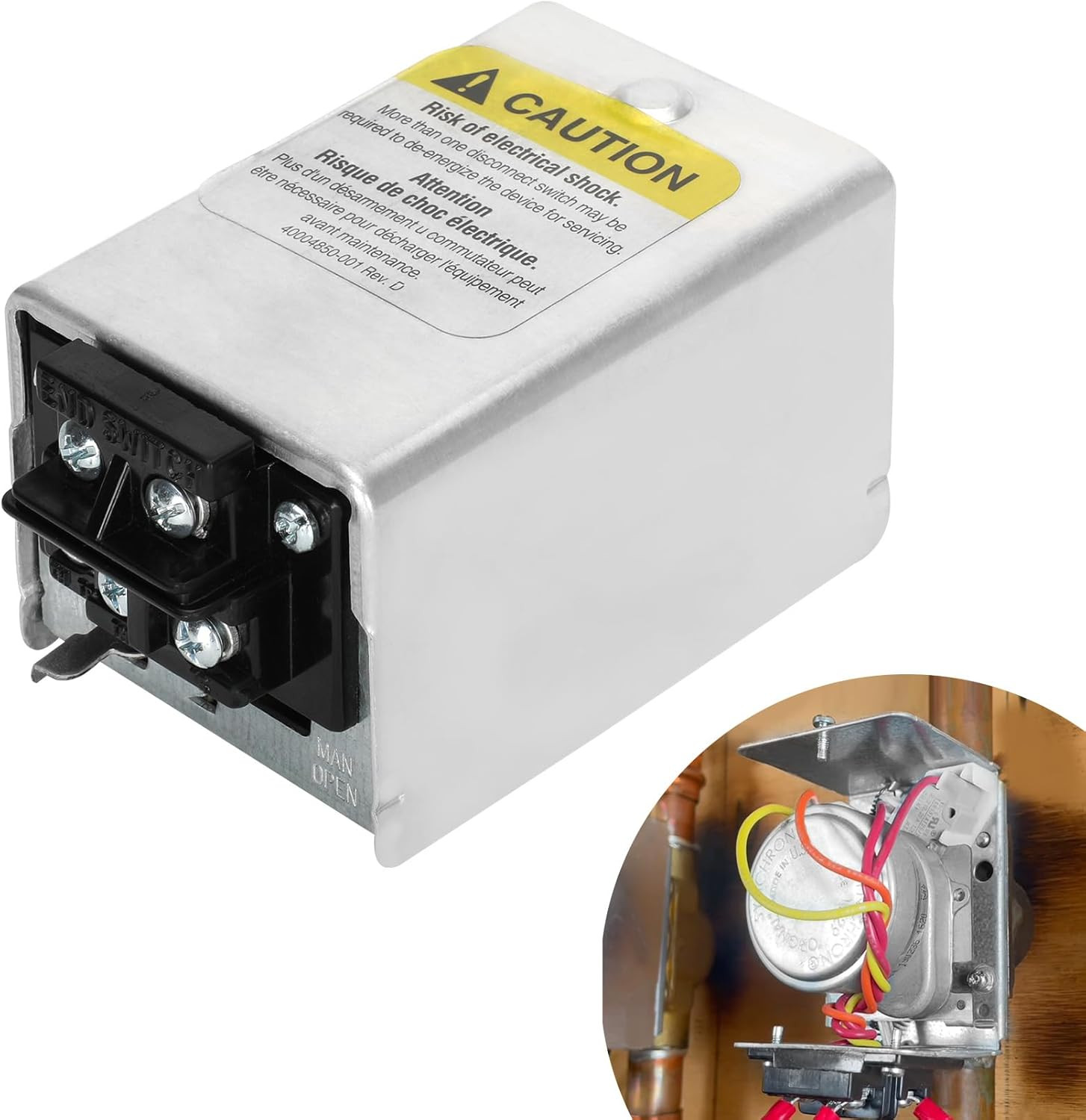

40003916-048 V8043F1036 Zone Valve Replacement Head for V8043F1036 V8043F1093 For Sale

Product description 40003916-048 replacement head for honeywell zone valve Work perfectly

• With the manual opening lever set to AUTO and the powerhead energized, the valve is opened. When the powerhead is de-energized, a spring return mechanism drives the valve to the closed position.
• The valve can also be opened with no electrical power by moving the manual opening lever over the stop and pushing slowly and firmly to the MAN. OPEN position. The stop permits the valve to be locked in the open position. The valve will return to automatic position when the valve is energized.
• Auxiliary switch is not energized when valve is manually opened.

Easy to install

• V8043F zone valve motor and valve assembly form a two-way on-off low pressure valve for controlling the flow of hot water. You can easy to insatall or replace them.
• Complete 40003916-048 power head can be removed or replaced without breaking plumbing line connections or draining the system.
• The V8043F1036 zone valve motor may be replaced without removing the valve body or draining the system.

Perfectly fit

The 4003916-048 power head is compatible with the V8043F zone valves V8043F1036 V8043F1093 V8043F1028 V8043F1101 V8043F1051( NOTE: if there are FOUR screws securing the power head, you have a VERY old valve, and requires a conversion kit(No. 40003918).

NOTE

• Disconnect power supply before connecting wiring to prevent electrical shock or equipment damage.
• Disconnect leadwires to powerhead at terminal block or conduit connection.
• Disconnect conduit or cable connector if fitted. Label each wire for rewiring later.
• Please read the instructions before installation

Application Hydronic Control Rated voltage 24 volts AC Rated current 0.32 amperes Auxiliary switch rating 4.4 a, 120 V (operating), 50 V amperes at 24 V (pilot load) Connection type 18-inch wire on the same side of the manual lever Ambient temperature 125 degrees fahrenheit Electrical connection Screw terminal Electrical connections 18\" (457mm) leads Connection position On the same side of the manual rod Use with valve Two Valve action Spring return to close Comments Valve designed for cycling (not constantly powered on) applications. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Long service life The average service life of the motor is over 30,000 hours.

• 【Perfect Replacement】: The V8043F1036 zone valve replacement head includes 802360JA motor and valve assembly. You can watch a video on youtube to install it, which may take up to 30 minutes. You no longer need to find a plumber, saving you time and money. (This product includes installation screws and detailed installation instructions.)
• 【Wide Compatibility】: The V8043F1036 zone valve replacement head fit for the V8043F series zone valves V8043F1036 V8043F1093 V8043F1028 V8043F1101 V8043F1051( NOTE: if there are FOUR screws securing the power head, you have a VERY old valve, and requires a conversion kit(No. 40003918). To confirm newer style valve: Just remove the cover&look inside your current power head. Verify there are only screws on the bottom plate on the upper left and lower right corners, but NOT on the other two V8043F1036 zone valve motor is manufactured by a professional zone valve motor manufacturer and meets and exceeds OEM standards. In addition, our V8043F1036 zone valve replacement head is made of high-temperature and corrosion-resistant metal material, which has undergone precision processing and multiple working tests before leaving the factory in conjunction with the boiler, circulation pump, and thermostat, ensuring efficient and long-lasting operation of the motor, perfect gear engagement without slipping, and stable opening and closing of the valve. Therefore, it has a lifespan of up to 15 years, which can keep your house warm for a long time.
• 【Automatic Opener】: Manual opener is use to operate valves in the event of a power failure. The valve returns to the automatic position when the power is restored.(Note: Auxiliary switch is not energized when the valve is manually opened.) The V8043F1036 zone valve replacement head solves the problems of heating system, allows the continuous operation of water, prevents the failure of your working valve again in cold nights, and provides you and your family with unlimited hot water.
• 【10 Year Free Replacement】: We have great confidence in the quality and service life of the V8043F1036 regional valve replacement head and always provide a 10 year free replacement. For any reason you are not satisfied, you can unconditionally request a full a free replacement (without the need to return the old one). If you have any questions, please feel free to contact us at any time. We will provide you with a satisfactory response within 12 hours.
