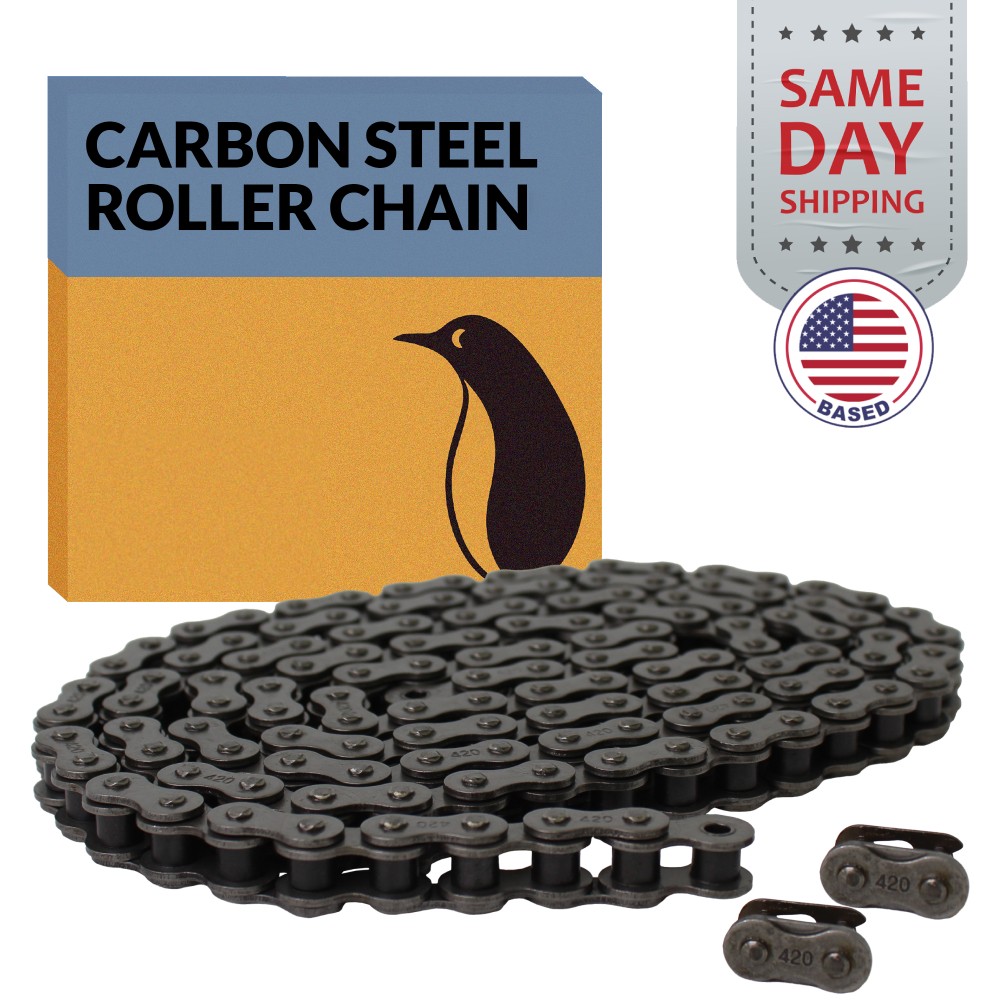

ANSI Chain No.: #420
Lenght: 10 feet
Pitch (P): 0.5 inch (12.7 mm)
Roller Diameter (d1 max): 0.30 inch (7.77 mm)
Width Between Inner Plates (b1 min): 0.24 inch (6.25 mm)
Pin Diameter (d2 max): 0.15 inch (3.96 mm)
Pin Lenght (L max): 0.66 inch (17 mm)
Pin Lenght (Lc max): 0.72 inch (18.4 mm)
Inner Plate Depth (h2 max): 0.47 inch (12 mm)
Plate Thickness (T max): 0.07 inch (2.03 mm)
Ultimate Tensile Strenght (Q min): 16.00/3636 kN/LB
Average Tensile Strenght (Qo): 18.1 kN
Weight (q): 0.76 lb/ft (0.34 kg/m)
