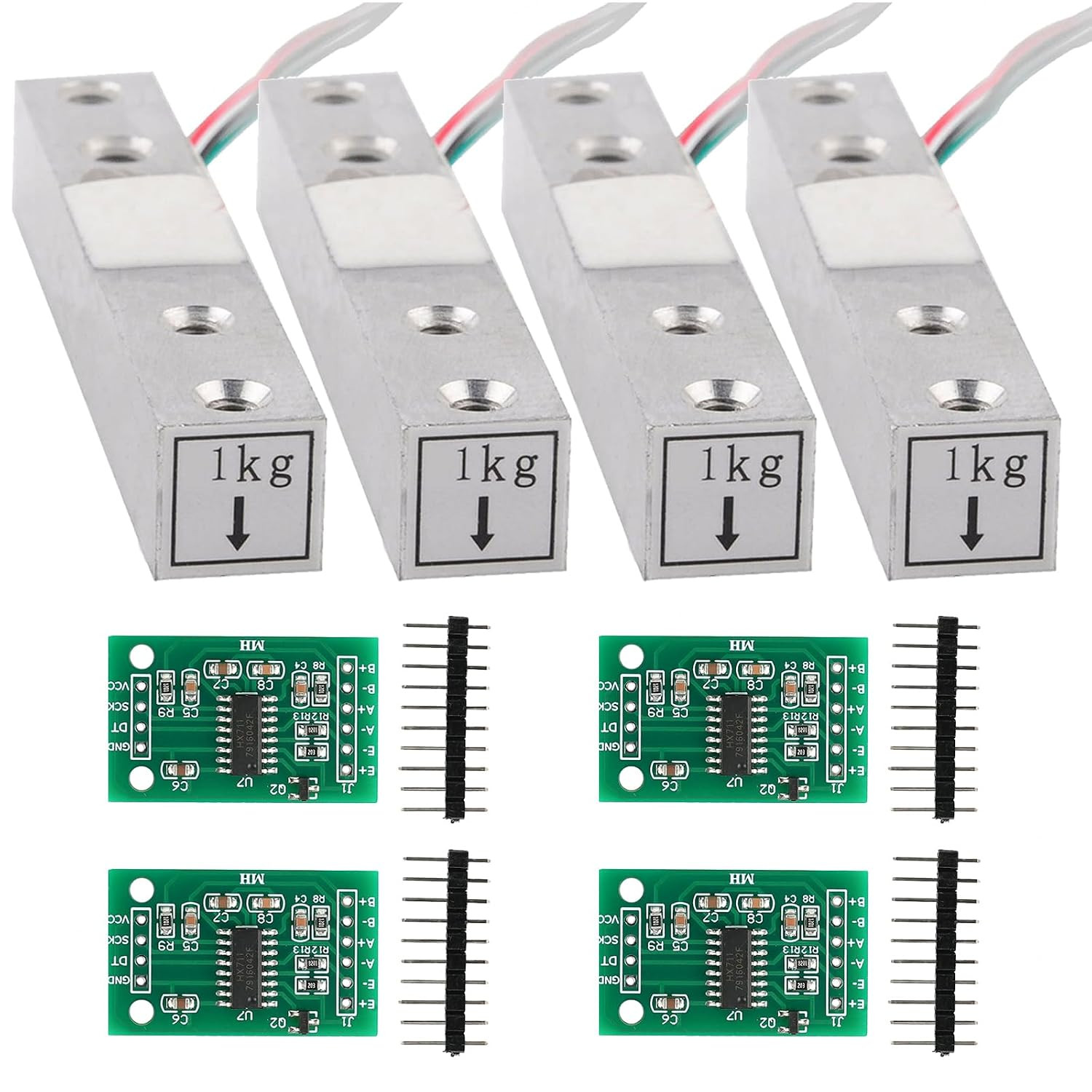

4sets Load Cell Load Cells kit Weight Sensor +HX711 A/D Amplifier Module Weighin For Sale

Description
Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal.
Dimensions: 12.7mm * 12.7mm * 80mm
Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label.
Particular attention must not directly push the white plastic cover part, so as not to damage the sensor. Application: Kitchen scale
Module: YZC-133
Capacity: 1、5、10、20
Rated Output: 1.0±0.15mV/V
Nolinearity: 0.0005
Repeatability: 0.0003
Hysteresis: 0.0003
Creep(5Min): 0.001
Temperature Effect On Sensitivity: 0.003%RO/°C
Temperature Effect On Zero: 0.02%RO/°C
Zero Balance: ±0.1%RO
Input Resistance: 1066±20Ω
Output Resistance: 1000±20Ω
Insulation Resistance: 2000MΩ(50V)
Recommended Excitation Voltage: 5V
Compensated Temperature Voltage: -10~+50°C
Operating Temperature Range: -20~+65°C
Safe Overload: 120%RO
Ultimate Overload: 150%RO
Load Cell Material: Aluminium
Connecting Cable: φ0.8X180mm HX711 Ad Module Load Cell Amplifier Green PCB for Arduino Description:
●Two selectable differential input channels
●On-chip active low noise PGA with selectable gain of 3264 and 128
●On-chip power supply regulator for load-cell and ADC analog power supply
●On-chip oscillator requiring no external component with optional external crystal
●On-chip power-on-reset
●Simple digital control and serial interface: pin-driven controlsno programming needed
●Simultaneous 50 and 60Hz supply rejection
●Current consumption including on-chip analog power supply regulator: normal operation
