5.8GHz Mini 3\" FPV Monitor with Micro 25mW Camera Transmitter Combo For Sale

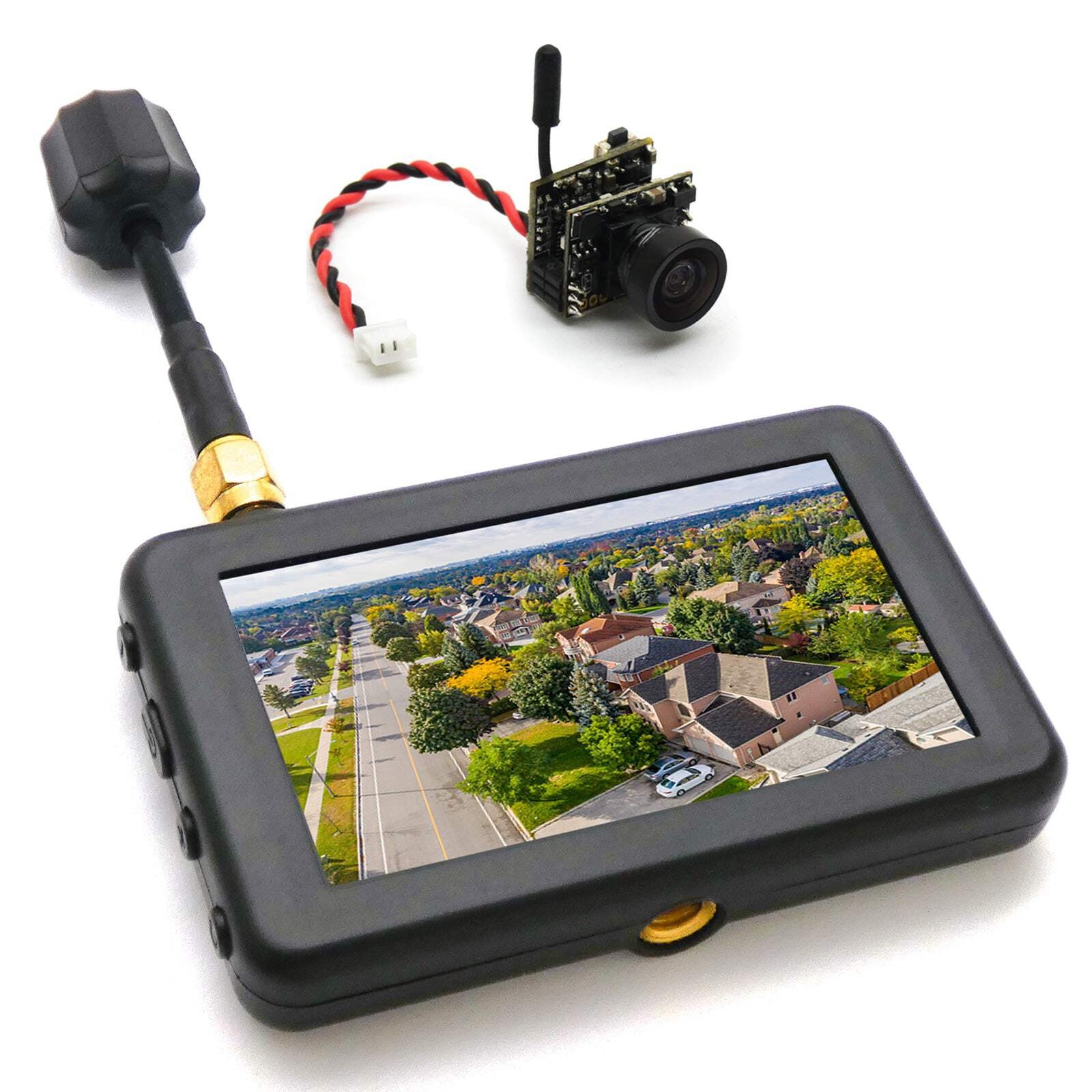

5.8GHz Mini 3" FPV Monitor with Micro 25mW Camera Transmitter Combo This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a modern micro AIO model, designed with the needs of drone pilots and RC enthusiasts in mind. Camera/Video Transmitter Features: Sensor: 1/4 \"CMOS Lens: M8 800TVL Lens Angle: 150 Degrees FOV horizontal viewing angle of 170 Degrees DFOV diagonal perspective Format: NTSC / PAL (switchable) Power consumption: 230mA @ 3 · 7V Power: 3.2-5.5V Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal) Camera/Video Transmitter Specifications: Channel Selection - Short press (~1 sec): Change channels 1-8 Band Selection - Medium press (~1.5sec): Change bands Micro Monitor Features: Small size and light weight Low power consumption Auto-Searching High brightness LCD screen Built-in super sensitiveness 5.8GHz 40ch receiver Built-in high-capacity Li-ion polymer Battery Universal USB charging interface Real-time video return, Very low time-delay Bilingual menu in support of Chinese and English Supports external video signal input Supports AV signal output (Connect external DVR) It can be used as a receiver for DJI� and other goggles Micro Monitor Specifications: Screen : 3.0 Inch IPS LCD Resolution: 480*320 Display Ratio: 16:9 View Angle: 360 Degrees without dead angle Brightness: 500cd/m² with high brightness backlight LED Video delay: less than 20ms Antenna: RP-SMA male Languages: English and Chinese Power adapter: DC5V/1A (USB interface) Battery: 3.7V/800mAh Power Consumption: 360~400mA at 3.7~4.2V Package Contents: 1x 5.8G 40CH LCD Mini FPV Monitor w/ Internal Battery - 3\" 1x Antenna 2x Video Cables 1x IDC-681H AIO FPV Camera 1x Wiring Harness 5.8GHz Mini 3" FPV Monitor with Micro 25mW Camera Transmitter Combo

This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera is a modern micro AIO model, designed with the needs of drone pilots and RC enthusiasts in mind.

Camera/Video Transmitter Features:

• Sensor: 1/4 \"CMOS
• Lens: M8 800TVL Lens
• Angle: 150 Degrees FOV horizontal viewing angle of 170 Degrees DFOV diagonal perspective
• Format: NTSC / PAL (switchable)
• Power consumption: 230mA @ 3 · 7V
• Power: 3.2-5.5V
• Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

Camera/Video Transmitter Specifications:

• Channel Selection - Short press (~1 sec): Change channels 1-8
• Band Selection - Medium press (~1.5sec): Change bands

Micro Monitor Features:

• Small size and light weight
• Low power brightness LCD screen
• Built-in super sensitiveness 5.8GHz 40ch receiver
• Built-in high-capacity Li-ion polymer Battery
• Universal USB charging interface
• Real-time video return, Very low time-delay
• Bilingual menu in support of Chinese and English
• Supports external video signal input
• Supports AV signal output (Connect external DVR)
• It can be uséd as a receiver for DJI� and other goggles

Micro Monitor Specifications:

• Screen : 3.0 Inch IPS LCD
• Resolution: 480*320
• Display Ratio: 16:9
• View Angle: 360 Degrees without dead angle
• Brightness: 500cd/m² with high brightness backlight LED
• Video delay: less than 20ms
• Antenna: RP-SMA male
• Languages: English and Chinese
• Power adapter: DC5V/1A (USB interface)
• Battery: 3.7V/800mAh
• Power Consumption: 360~400mA at 3.7~4.2V

Package Contents:

• 1x 5.8G 40CH LCD Mini FPV Monitor w/ Internal Battery - 3\"
• 1x Antenna
• 2x Video Cables
• 1x IDC-681H AIO FPV Camera
• 1x Wiring Harness

×
