Features:
An easy one step connection of wires, soldered, insulated and sealed
Can be ideal use in marine and automobile applications
Polyolefin tubing in outside and hot melt adhesive in inside
Solder and seal and with advanced waterproof function
Kuzavtye polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation
Specification:
Material: PE + Tin
Quantity: 1 (Selectable !)
Colors: Yellow, Blue, Green, Red, White
Operating temperature: -55°c~125°c/-55°c~150°c
Minimum shrink temperature: 60°c/125°c
Starting temperature of solder melt: 138°c
Temperature of fully solder melt: 160°c
Type & Size:
Yellow Connecto rs: diameter 6.0mm, cable cross-section 4.0-6.0 mm², 12-10 AWG
Blue Connec tors: diameter 4.5mm, cable cross-section 1.5-2.5 mm², 16-14 AWG
Green Conn ectors: diameter 3.5mm, cable cross-section 0.75-1.0 mm², 16-18 AWG
Red Connectors: diameter 2.7mm, cable cross-section 0.5-1.0 mm², 22-18 AWG
White Connectors: diameter 1.5mm, cable cross-section 0.25-0.34 mm ², 26-24 AWG

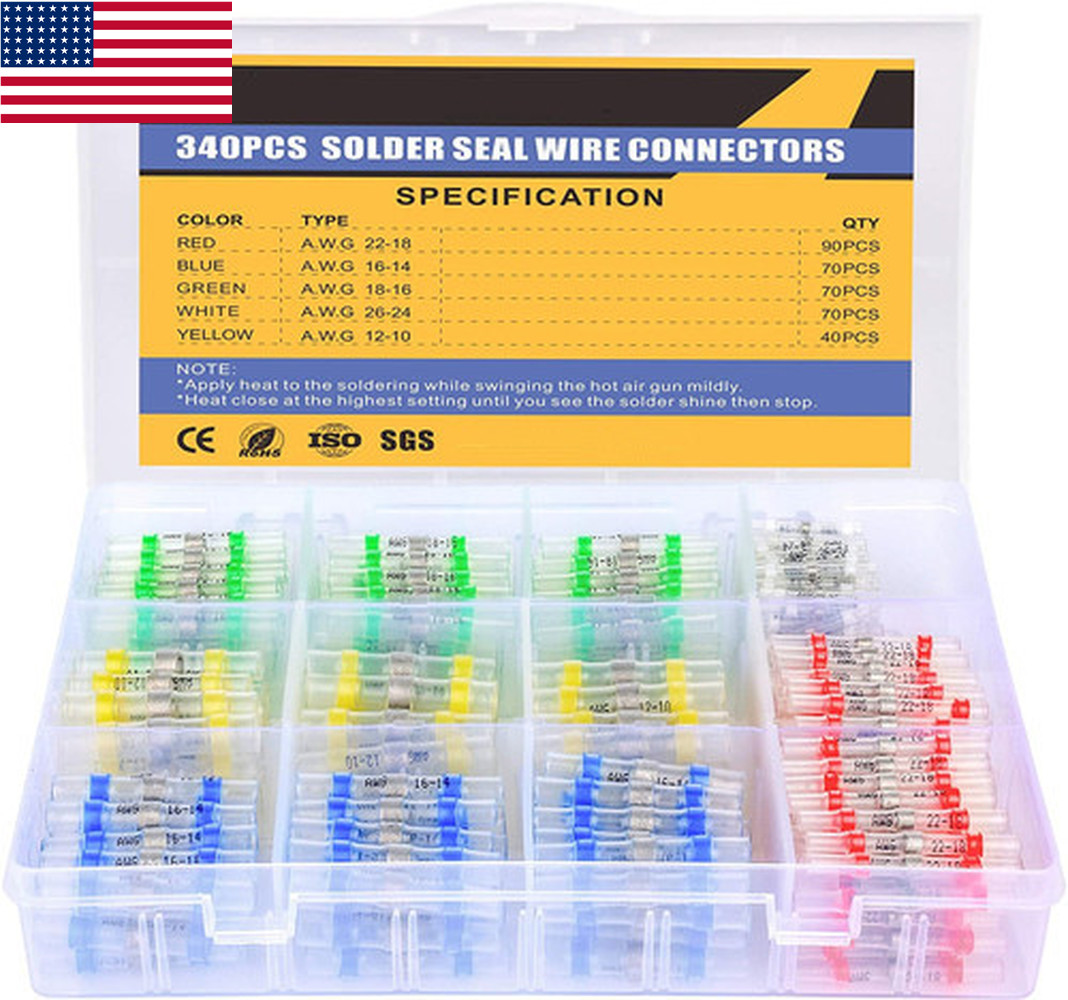

340Pcs/Box:
70 X White heat shrink solder connector 26-2 4 AWG
90 X Red heat shrink solder connector 18-22 AWG
70 X Blue heat shrink solder connector 16-14 AWG
70 X Yellow heat shrink solder connector 12-1 0 AWG
40 X Green heat shrink solder connector 16-18 AWG
240Pcs/Box:
50 X White heat shrink solder connector 26-24 AWG
70 X Red heat shrink solder connector 18-22 AWG
50 X Blue heat shrink solder connector 16-14 AWG
20 X Yellow heat shrink solder connector 12-10 AWG
50 X Green heat shrink solder connector 16-18 AWG
160Pcs/Box:
30 X White heat shrink solder connector 26-24 AWG
40 X Red heat shrink solder connector 18-22 AWG
40 X Blue heat shrink solder connector 16-14 AWG
10 X Yellow heat shrink solder connector 12-1 0 AWG
40 X Green heat shrink solder connector 16-18 AWG
Package includes: (The items you select !)
1 Heat Shrink Solder Seal Connectors
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to light and screen difference, the item color may be slightly different from the pictures.
