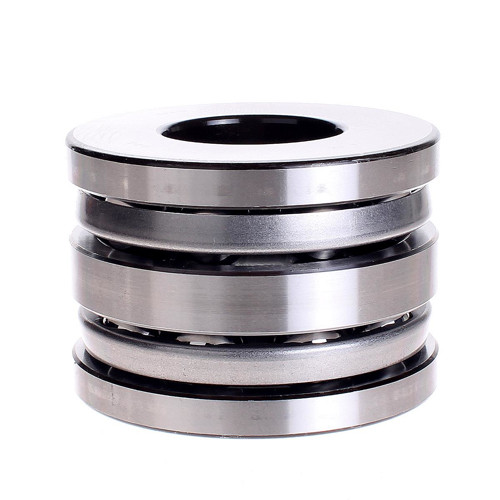

52410 FAG 40 x 110 x 78 mm THRUST BALL DOUBLE DIRECTION For Sale

Thrust Ball Bearing Double Direction

40x110x78mm

247INDUSTRIES

• Worldwide Delivery With UPS
• 30 Days Returns Accepted
• 2.000+ Satisfied Customers
• Track & Trace

40x110x78mm
1.5748x4.3307x3.0709 inch

Thrust Ball Bearing Double Direction
52410
THRUST BALL DOUBLE DIRECTION





Steel - Steel Cage, Simple
Pn - Standard Precision

The 52410 FAG is a double-direction thrust ball bearing, also referred to as a thrust bearing or axial deep groove ball bearing. This bearing type consists of a shaft washer, two housing washers, and two ball and cage assemblies. Thrust ball bearings have an open design. High rotational speeds are made possible by the ball elements. As thrust ball bearings are separable, the components can be easily assembled independently of each other.

Double-direction thrust ball bearings are suitable for axial loads in both directions, permitting axial locating of the shaft in either direction. However, these bearings are not intended for radial loads. The shaft washer is mounted on the shaft and rotates along with it, while the housing washers have a slightly larger bore diameter, providing clearance for free shaft movement. Additionally, these housing washers have flat seats, meaning that the 52410 FAG cannot compensate for any misalignments between the shaft and the housing.
