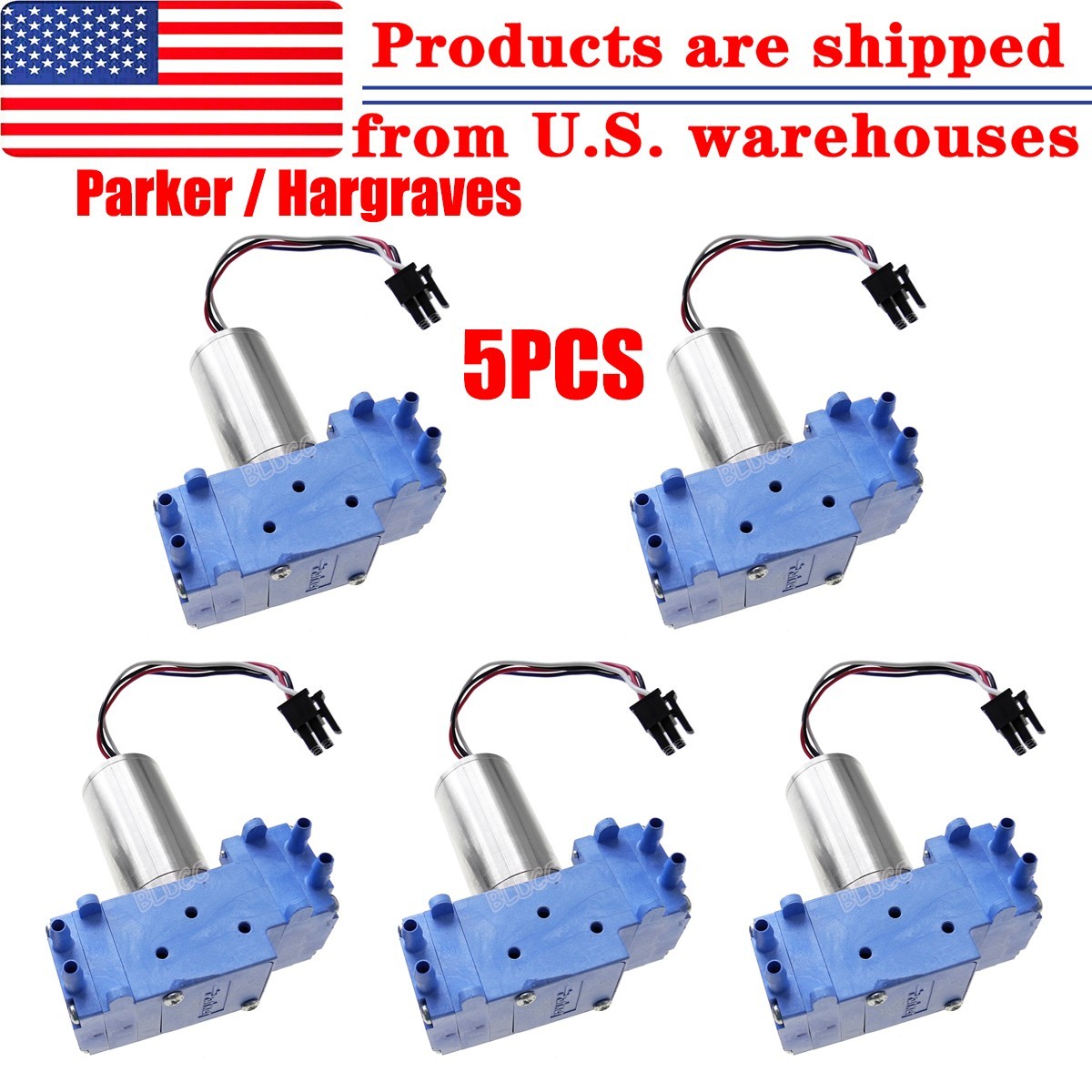

5PCS 12V Brushless Diaphragm Vacuum Pump Mini Double Head Air Pump DIY SolderingProduct Description5PCS 12V Brushless Diaphragm Vacuum Pump Mini Double Head Air Pump DIY Soldering
Introduction:
BTC-IIS Miniature Diaphragm Pumps are brushless DC motor driven pumps which are tailored to meet the specific application performance requirements. The innovative compact designs incorporate leading edge technologies that allow them to operate more efficiently than existing pump designs. BTC-IIS Pumps offer multiple component configurations allowing them to be used for either vacuum, pressure, or alternating vacuum and pressure operations. BTC-IIS is ideal for compact, high flow, wide pressure ranges, long-life, low noise applications.Attention: This vacuum pump is used and may have signs of previous use on its exterior. However, this does not affect its functionality. We thoroughly test each unit, but please be cautious if you have any concerns before purchasing.Specification:
Brand: Parker/HargravesRated voltage: DC 12VVoltage Range: DC 8~15VRated Current: 450mA (DC 12V)Current Range: 200~1400mAHead Configuration: Dual Maximum Unrestricted Flow: 6 LPM (Series), 11 LPM (Parallel)Pressure Range: 0 - 28 psig (0 - 1.93 bar) (Parallel)，0 - 48 psig (0 - 3.31 bar) (Series).Vacuum Range: 0 - 20 in Hg (580 mm Hg) (Parallel)，0 - 25 in Hg (635 mm Hg) (Series).Media: Air, Argon, Helium, Nitrogen, Oxygen, and other non-reacting gasesOperating Environment: 41 to 122°F (5 to 50°C)Noise Level: As low as 45 dB @ 12 in (30 cm)Pump Assembly Rated Life3: ≥10,000 hrsNet weight: 250g
Warning:The brushless motor's positive and negative terminals must not be reversed; incorrect connections can damage the driver!Wiring Definition:
Red wire: Positive terminal of the power supply.Black wire: Negative terminal of the power supply.White wire: PWM speed control wire (can be left unconnected if speed control is not needed).Blue wire: Speed signal wire (can be left unconnected if not needed).If PWM speed control is required:
Recommended PWM frequency: 15 - 25 KHz，Recommended PWM Duty range: 10 - 100%.Package Included:
5PCS DC 12V Vacuum Pump
Note: If you need large quantity, we can provide wholesale for you with the best price, just contact us freely via Message.About Payment
*We acceptPayPal, Payoneer, Visa Card, Google pay, Credit cardetc.
*All major credit cards are accepted through secure payment processor PayPal.
*Payment must be received within 7 business days of sale closing.
*Please make sure your paypal and address is correct. Or not, please correct it before payment.
About Shipping
*This item will be shipped outwithin the Stated Handling Timeafter confirmed payment received.
- * Goods are in stock in USA Warehouses, buyers can get the parcel around 3-5 business days.
- * We provide tracking number freely for all buyers.
- * Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch.
- We reserve the right to charge shipping fee to reship undeliverable items.
