Details:

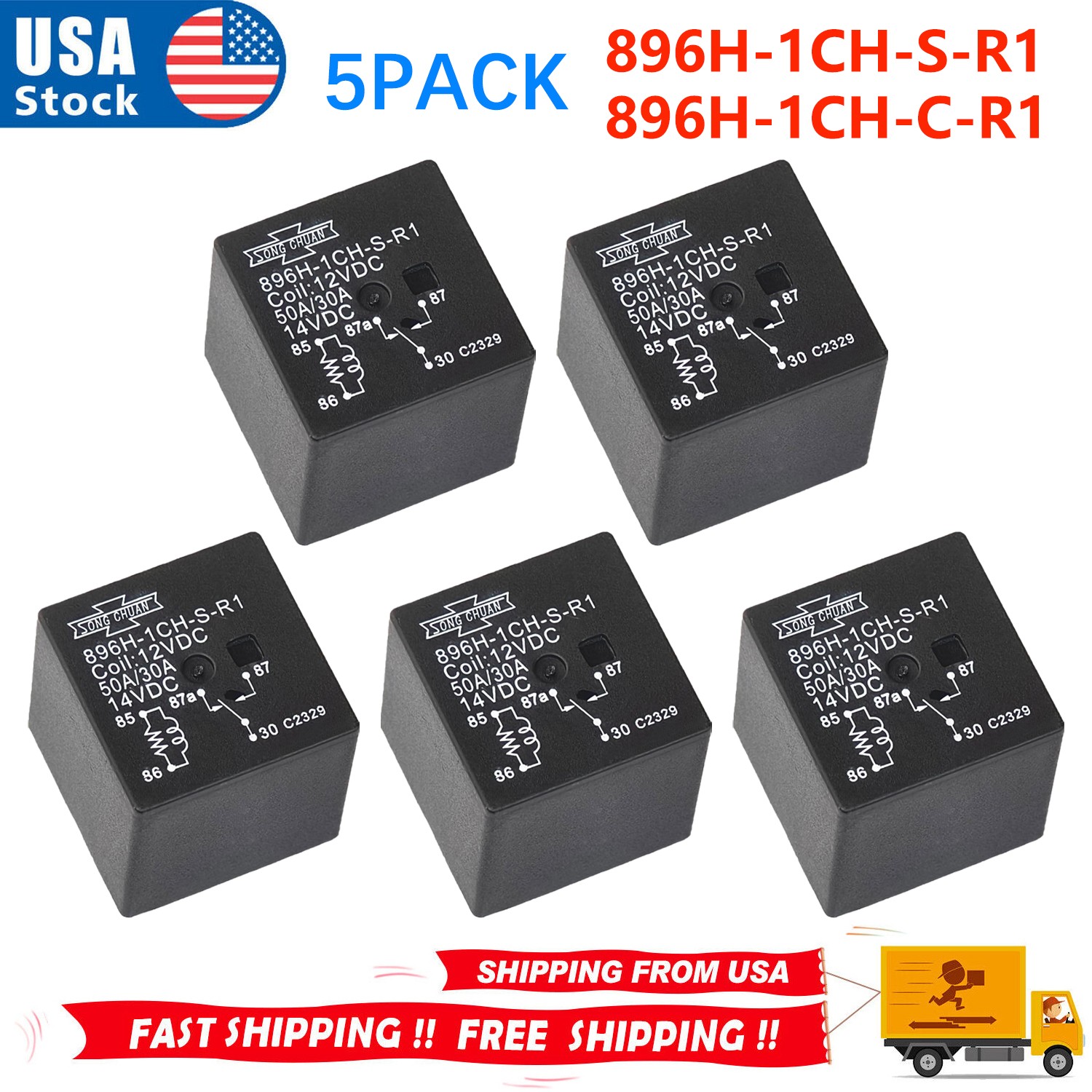

*The 896H-1CH-C-R1-U03 is a high-quality 5-pin plug-in automotive relay. It features a SPDT configuration, which means it has one common contact, one normally open contact, and one normally closed contact. This configuration allows the relay to switch between two different circuits. The relay has a contact rating of 50A at 12VDC, making it suitable for high-current loads such as headlights, power windows, and cooling fans.
*The relay has a coil voltage of 12VDC and a coil resistance of approximately 80 ohms. Its plug-in design makes it easy to install and replace, and the pins are labeled for easy identification. The relay is compatible with a wide range of automotive applications and is built to withstand harsh environments and extreme temperatures.
*Whether you\'re working on a DIY automotive project or replacing a faulty relay in your car, the 896H-1CH-C-R1-U03 is a reliable and durable choice. Its high contact rating, SPDT configuration, and plug-in design make it an excellent option for automotive applications that require a high-performance relay.
Specifation:
*Nominal Coil Voltage: 12VDC
*Contact Form: SPDT
*Contact material: AgSnO alloy
*Enclosure style:Flux tight
*Resistive load：NC : 50A
*Contact voltage drop: Typ. 50mV at 10A
*Operate time : 20 ms Max.
*Release time : 20 ms Max.
*Insulation resistance:20MΩ Min. (DC 500V)
*Weight: Approx.25 g
Package included:5PCS Relays
