This product is compatible with Solvent, Eco-Solvent, Latex, and UV inkjet Printers ONLY
- Please make sure you have this type of printer before you order this product.
- If you're not sure please message us and we will help. We respond very promptly.
Matte Permanent - Part#: PG-023Matte Removable - Part#: PG-322

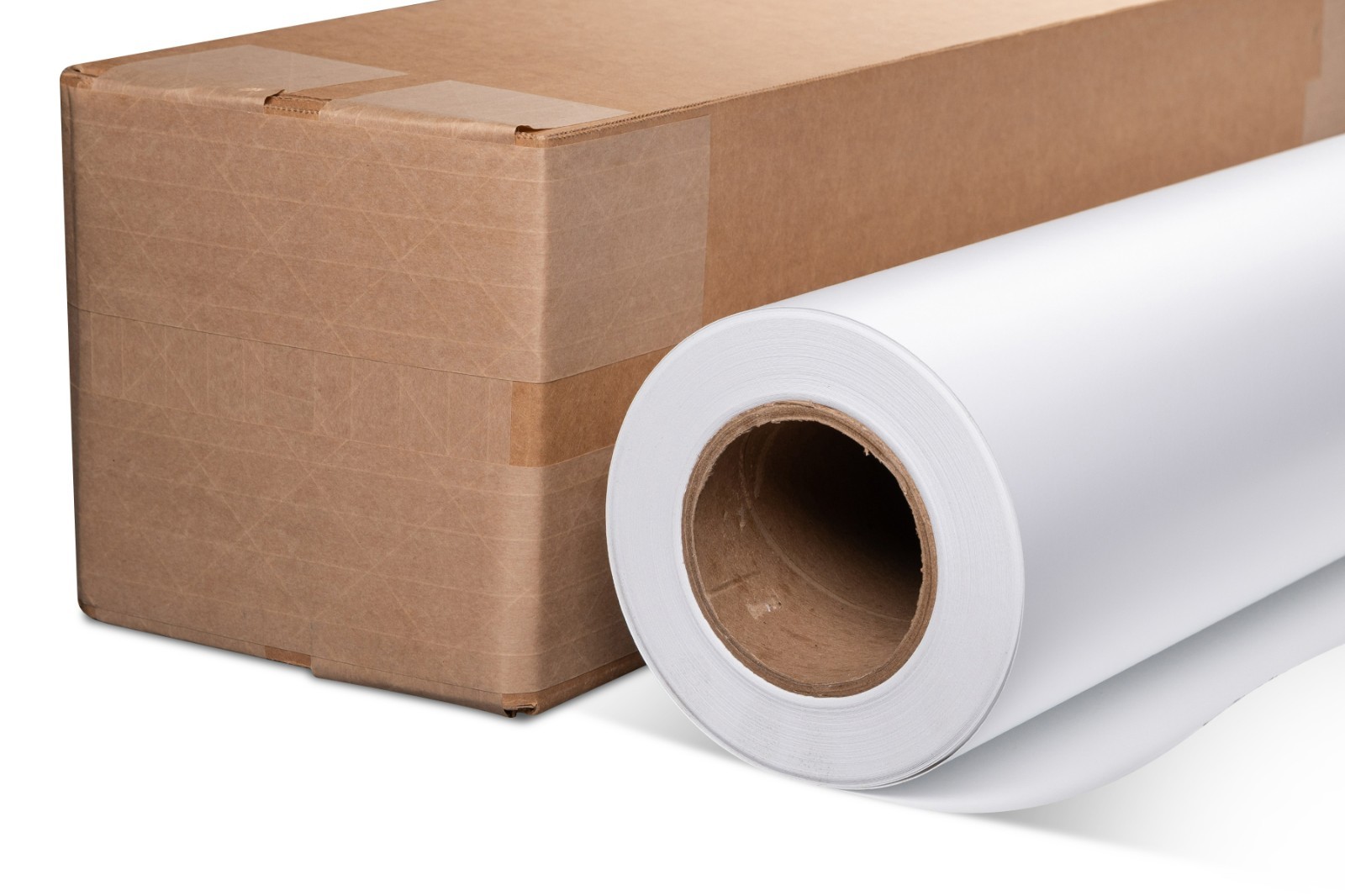

Matte Permanent PG-023
6.0 mil matte white semi-rigid vinyl with a permanent acrylic pressure sensitive on a 90# liner. This vinyl is designed to accept a variety of solvent-based, UV curable and latex inks common to wide format digital printing systems. PG-023 is a permanent vinyl designed for ease of application of temporary interior or exterior signage, decals, nameplates, die-cut letters and point-of-purchase displays. Semi-Rigid films are easy to handle due to their rigidness and thus can be applied quickly.
FILM
- Film Type White Intermedite Vinyl
- Film Thickness (mils/μm) 6.0 / 152 (+/- 10%)
- Film Weight (gsm) 215
- Gloss (60°) <20
- Opacity (%) 99
- Tensile Strength (lbs/in) MD > 3300 / CD > 3200
- Elongation (%) MD > 100 / CD > 125
- Dimensional Stability (FTM 14) MD < 1.0 mm / CD < 0.50 mm
ADHESIVE
- Adhesive Type Emulsion Acrylic
- Adhesive Thickness (mils/μm) 0.8-1.0 / 20-25
- Adhesive Color Clear
- Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 15 min 3.0 / 13
- Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 24 hrs 5.0 / 22
LINER
- Liner Weight (#/gsm) 90 / 145
- Liner Type White 2-Sided PE-Coated Kraft
- Liner Thickness (mils/μm) 6.7 / 170
- Release Force @ 300” / min (g/2”) 70-110
PERFORMANCE GUIDANCE
- Application Temperature > +40 °F
- Service Temperature -40 °F to 180 °F
- Shelf Life 1 year
- Storage Temp / Rel. Humidity 70 °F / 50%
- Outdoor Durability Up to 3 years
- Removability N/A
Matte Removable PG-322 6.0 mil matte white semi-rigid vinyl with a removable acrylic pressure sensitive on a 90# liner. This vinyl is designed to accept a variety of solvent-based, UV curable and latex inks common to wide format digital printing systems. PG-322 is a removable vinyl designed for ease of application of temporary interior or exterior signage, decals, nameplates, die-cut letters and point-of-purchase displays. Semi-Rigid films are easy to handle due to their rigidness and thus can be applied quickly.
FILM
- Film Type White Intermedite Vinyl
- Film Thickness (mils/μm) 6.0 / 152 (+/- 10%)
- Film Weight (gsm) 215
- Gloss (60°) <20
- Opacity (%) 99
- Tensile Strength (lbs/in) MD > 3300 / CD > 3200
- Elongation (%) MD > 100 / CD > 125
- Dimensional Stability (FTM 14) MD < 0.5 mm / CD < 0.20 mm
ADHESIVE
- Adhesive Type Emulsion Acrylic
- Adhesive Thickness (mils/μm) 0.8-1.0 / 20-25
- Adhesive Color Clear
- Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 15 min 0.04-0.10 / 0.2-0.4
- Peel Strength on Stainless Steel (lbs/in) / (N/25mm) 24 hrs 0.07-0.20 / 0.3-0.9
- Peel Strength on Glass (lbs/in) / (N/25mm) 15 min 0.04-0.20 / 0.2-0.9
- Peel Strength on Glass (lbs/in) / (N/25mm) 24 hrs 0.04-0.30 / 0.2-1.3
LINER
- Liner Weight (#/gsm) 90 / 145
- Liner Type White 2-Sided PE-Coated Kraft
- Liner Thickness (mils/μm) 6.7 / 170
- Release Force @ 300” / min (g/2”) 90-130
PERFORMANCE GUIDANCE
- Application Temperature > +40 °F
- Service Temperature -40 °F to 180 °F
- Shelf Life 1 year
- Storage Temp / Rel. Humidity 70 °F / 50%
- Outdoor Durability Up to 3 years
- Removability Up to 1 year
