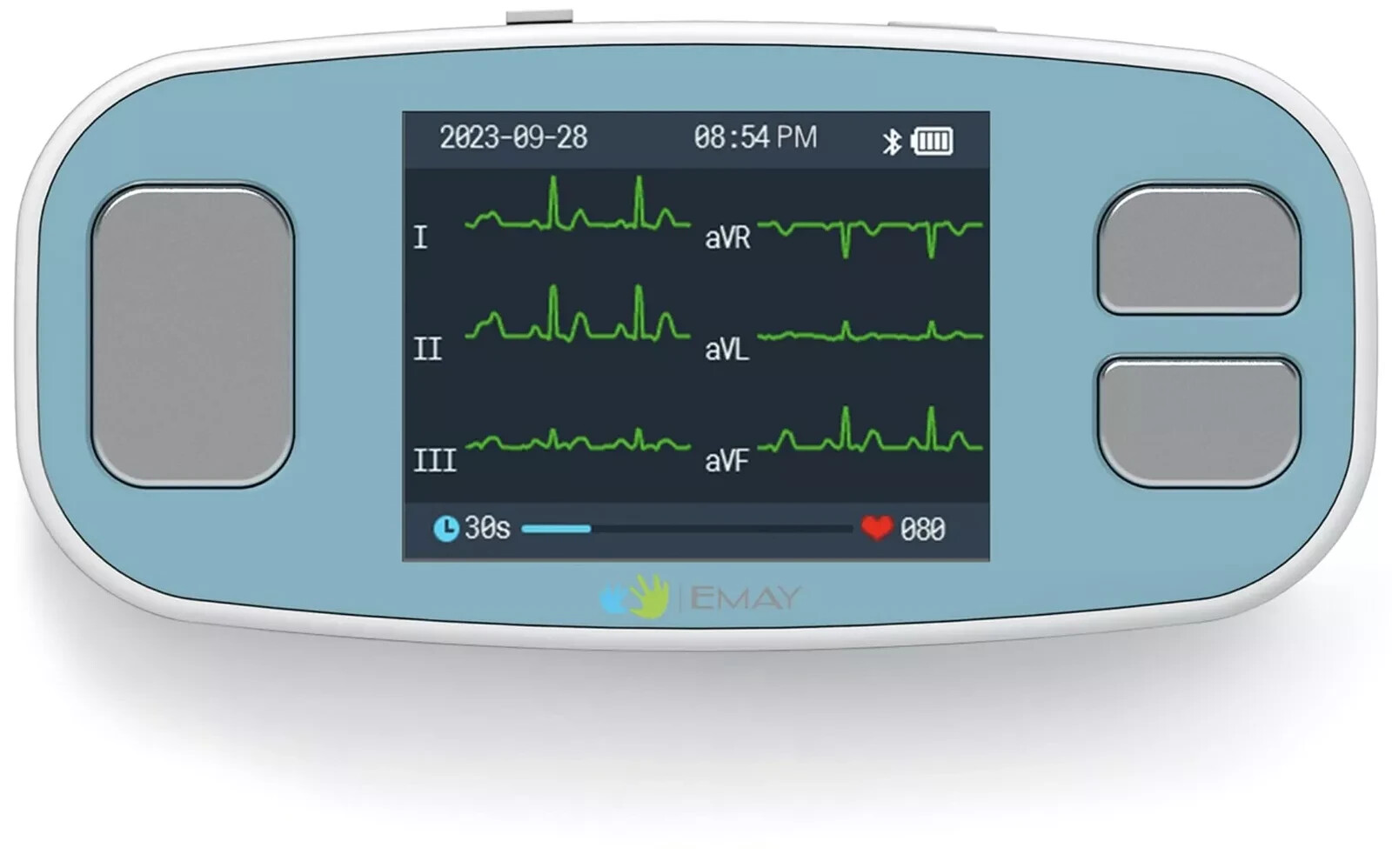

6 Leads Portable ECG Monitor Record ECG & Heart Rate in 6 Channels /OPEN BOX For Sale

• Record and store ECG signals, and display heart rate for home health care use. There is no subscription or hidden cost required to use the device & app.
• The device can be connected with PC via USB, with mobile phone via Bluetooth.
• The function of software PC and mobile phone includes sample mode and time setting, upload case, case review, measurement etc.
• Powered by Built-in large capability rechargeable lithium battery.
• The device is intended for OTC (over-the-counter) Use. Implanted pacemaker are not recommended to use with this device. This device is not intended to substitute for a hospital diagnostic ECG device.

Technical Specifications

• Lead: Standard 6 Leads, I/ II /III/aVR/aVL/aVF
• Calibration voltage: 1 mV±5%
• Standard sensitivity: 10 mm/mV±5%
• Amplitude frequency characteristic: standard: 10 Hz; 1 Hz～20 Hz; (+0.4 dB, -3 dB)
• Noise level: ≤30 μV
• Input impedance: ≥50 MΩ
• CMRR: ≥60 dB
• Scanning speed: 25 mm/s±5%
• Recording rate: 250 dots/s
• HR measurement range: 30 bpm～300 bpm, error: ±1 bpm or 1%
• Battery Voltage: DC 3.7 V
• Type of protection against electric shock: Internal power device
• Degree of protection against electric shock: Type BF applied part
• Degree of waterproof: IP22
• Display:2.4\" color TFT-LCD
• Size: 122 mm (L)*56 mm (W)*17 mm (H)

Introduction

EMAY 6L is a stand-alone ECG recordingdevice with screen and built-in memory. That’s right, you don’t need asmartphone to make it work ! It allows you to record and review your ECGrhythms on the device itself, and gives you instant analysis in just 30seconds.

We also provide free apps in case someusers want to share ECGs or review details on smartphone/tablet (via bluetooth)or computer (via usb cord).

What’s more, the device is capable ofrecording two ECG types:

• Record a Six-Lead ECG (by placing left & right thumbs against the electrodes on the top surface, and left leg against the electorde on the bottom surface.)
• Record a Single-Lead ECG (by placing left & right thumbs against the electrodes on the top surface only, without using the bottom electrode.)

Package Content

• 6L ECG Device
• USB Cord
• User Manual
