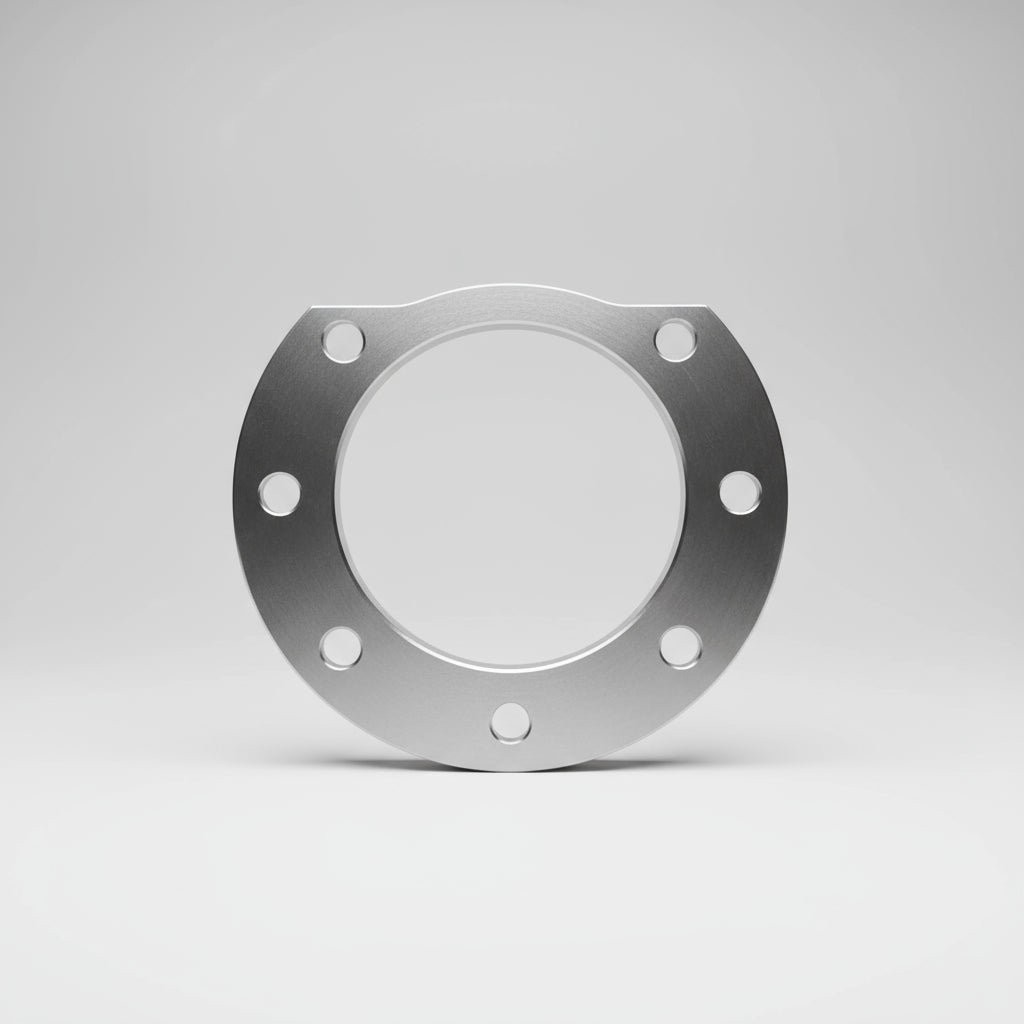

7-Bolt Weld-On Brake Flange for Dexter-Style Spindles
The TAD-FLANGE is a precision-machined, weld-on brake flange designed for Dexter-style trailer spindles commonly used on 10,000–15,000 lb axles. It provides proper brake backing-plate alignment during axle fabrication or spindle replacement, supporting consistent and stable braking performance.
Key Features
- 7-bolt brake flange configuration
- Designed for weld-on installation
- Machined for concentric accuracy
- Heavy-duty steel construction
- Commonly used with Dexter-style brake assemblies
Specifications (From Diagram) Location / Feature Dimension Center Bore Diameter 4.20 in Overall Outside Diameter 6.80 in Flange Thickness 0.475 in Bolt Pattern 7-bolt (bolt circle not specified in diagram)
Included: One (1) weld-on brake flange only.
Bearings, seals, and mounting hardware are not included.
Weight & Package Dimensions Specification Value Item Weight 3 lbs Package Dimensions 10 in × 8 in × 2.5 in Fitment & Installation Notes:
- Typically used on Dexter-style spindles for 10K–15K axles
- Compatible with Dexter 10K, 12K, and 15K brake flange applications
- Not confirmed for non-Dexter axle manufacturers
- Verify spindle shoulder location and backing-plate alignment before welding
- Professional welding recommended to prevent distortion
