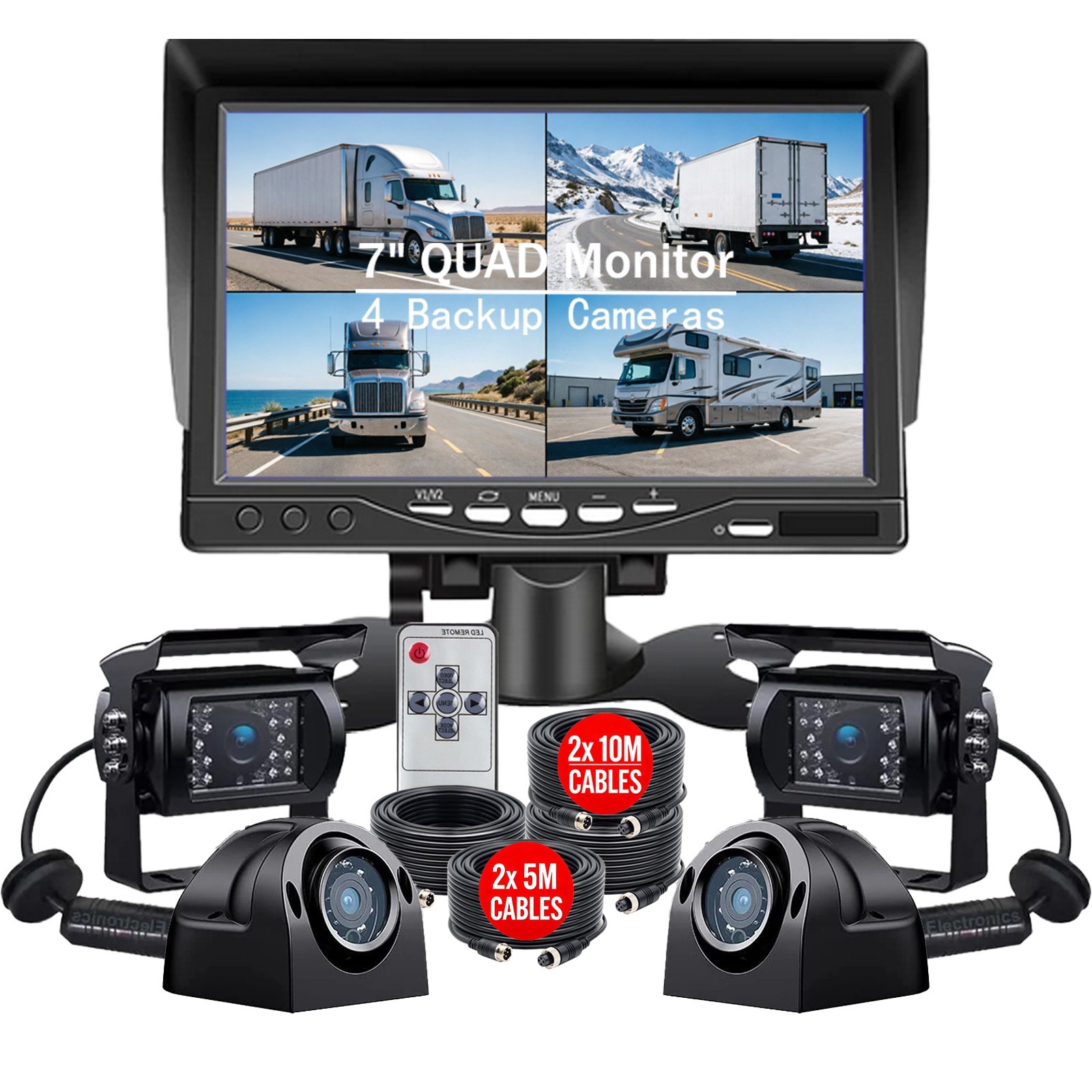

Get total visibility around your truck, bus, RV, trailer, or other large vehicle with this professional-grade iPoster IP-7040QUAD system.
It combines a crystal-clear 7-inch quad split-screen monitor with four heavy-duty waterproof CCD cameras, all connected through a smart single-cable 4-pin design that carries both video and power. No extra power wires to run, no complicated wiring – just one cable per camera does it all. Backed by a full 1-year warranty and a free return policy, you can upgrade your safety with complete confidence.
Brilliant 7-Inch Quad Monitor with Sunshade
At the heart of the kit is a high-quality 7-inch TFT LCD color monitor built to perform in demanding conditions. The 16:9 display delivers a sharp 800x600 resolution with 250 cd/m² brightness, ensuring a clear view even in bright daylight. The included sunshade cover reduces glare and keeps the screen readable. With 4-channel video inputs, the monitor can show you all four camera angles simultaneously or switch between 11 different display modes – full screen, dual split, triple, quad, and more – so you can tailor the view to your driving or parking situation. The OSD menu lets you independently adjust brightness, color, and contrast for each channel. You can also mirror any individual image and set a reverse delay for true reversing camera behavior. A built-in speaker handles audio when used with audio-capable sources. The system automatically detects PAL and NTSC signals, and the versatile bracket allows both dash-mount and hang-mount installation. Operating voltage is 12V to 24V, so it works with nearly any large vehicle’s electrical system right out of the box.
Key Camera Specifications:
• Image Sensor: 1/3” Sharp CCD
• Effective Pixels: 810(H) x 782(V) for PAL; 807(H) x 792(V) for NTSC
• Horizontal Resolution: 600 TV lines
• Lens: 2.8mm (120° wide angle)
• IR Illumination: 18 LEDs, effective in 0 Lux conditions
• Minimum Illumination: 0.8 Lux / F1.2
• Electronic Shutter: 1/50~1/100,000 sec (PAL) / 1/60~1/100,000 sec (NTSC)
• S/N Ratio: ≥48 dB (AGC off)
• Backlight Compensation: On
• White Balance: Auto
• Gain Control: Auto
• Video Output: 1.0 Vp-p, 75 Ω via 4-pin connector
• Power Supply: 12V-24V DC
• Operating Temperature: -20°C to +80°C
• Ingress Protection: 100% waterproof, mud-proof metal body
Monitor Specifications:
• Model: IP-7400W (Quad Monitor)
• Screen Size: 7-inch TFT LCD
• Aspect Ratio: 16:9
• Resolution: 800 x 600
• Brightness: 250 cd/m²
• Video Inputs: 4 channels
• System: PAL / NTSC automatic
• On-Screen Display: Multi-language (English, Russian, French, Simplified Chinese, Traditional Chinese, German and more), adjustable brightness, color, contrast
• Video Compression: H.264; Audio: AAC
• Built-in Speaker: Yes
• Display Modes: 11 selectable (full, 2-split, 3-split, 4-split and other combinations)
• Individual Image Mirroring and Reverse Delay: Yes
• Sunshade: Yes
• Mounting: Dash mount or hang mount with included stand bracket
• Power: 12V-24V DC
• Monitor Connection Cable Length: approx. 2.5 m (7.4 ft)
What’s Included in the Box：
• 1 x 7-inch Quad Split Monitor
• 1 x Remote Control (batteries not included due to shipping restrictions)
• 1 x Stand Bracket
• 1 x 4-Pin Female Power Cable
• 2 x 5 m (16 ft)
• 2 x 10 m (33 ft)
• 4 x Backup Cameras
• 1 x User Manual
On Sep 4, 2026 at 02:44:06 PDT, seller added the following information:
![7\](img-large/g/OmIAAeSwX4xqmokT/s-l1600/7-Quad-Monitor-4x-Side-Rear-View-Backup-Camera-Sys.jpg "7\")
