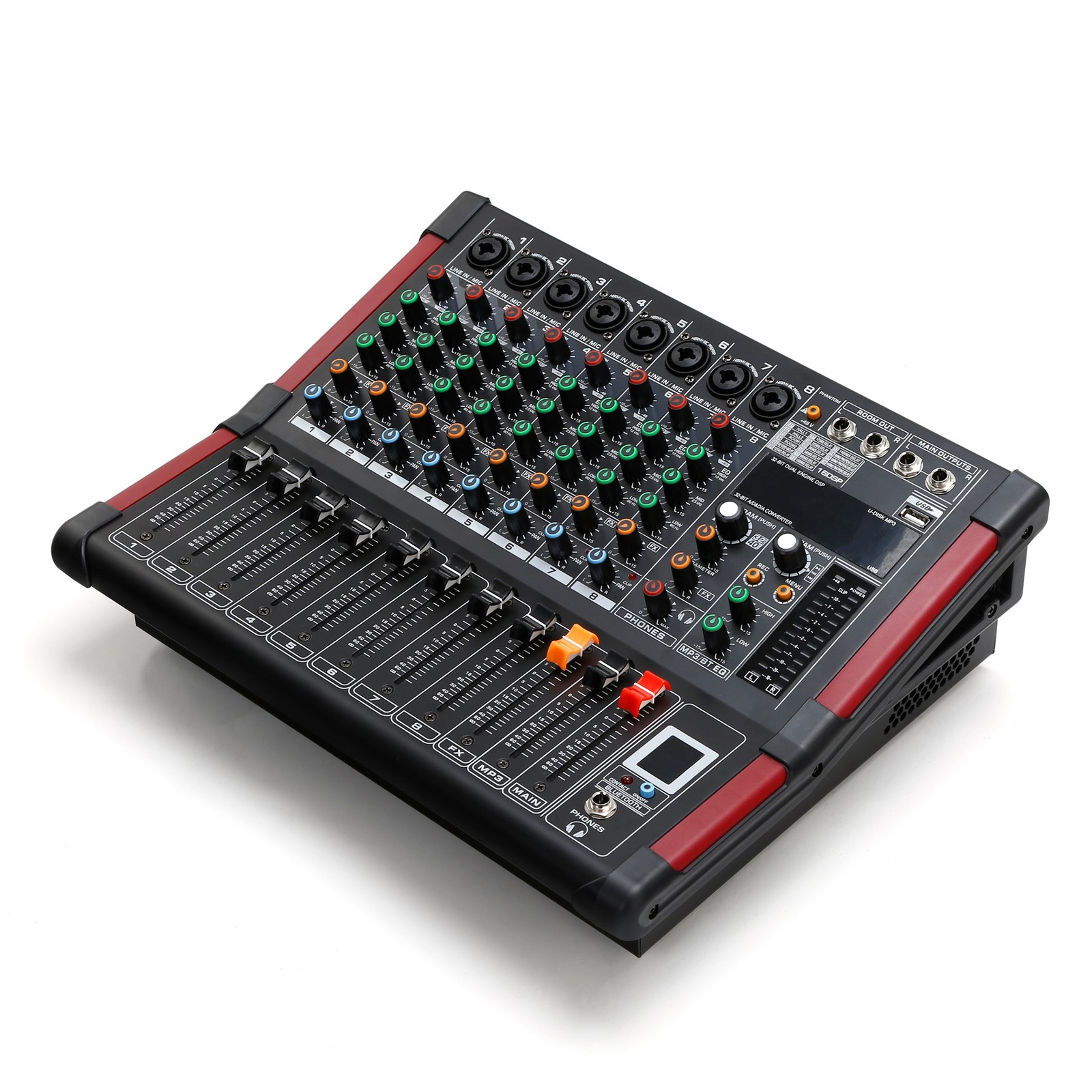

8 Channel Amplifier Power Mixer Bluetooth TRS Audio Mixing w/ USB Slot 16DSP New Specification:
Condition:100% Brand New
CE Certification
Net Weight(approx): 13.5 lbs
Voltage: 110V/50Hz
Dimensions: 15\"x 12\" x 5\"
RMS Power: 110W / 4Ω
Peak Power: 250W / 4Ω
8 Mono Input Channels with gold plated XLRs and balanced Line Inputs
Ultra-low noise discrete Mic Preamps with +48V Phantom Power
Balanced Inputs for highest signal integrity
Ultra-musical 3-band EQ on all channels
Peak LEDs all Mono Channels
Simulate effect (16DSP)
Master Mix Output and rec output
Highly accurate 5 segment Bargraph Meters
2 Speaker output socket, USB Slot
Separate Master Mix Outputs
High-gain head amplifier
Amplifier Outputs
Microphone Inputs: XLR , electonically balanced, discrete input circuit
Built-in MP3 player/recorder
Built-in cooling fan
With High,mid,low,echo,delay ,reverb effect
Bluetooth function enables users to wirelessly stream music in from iPad and smartphone to mix music
Equipped with JRC chip, the same supplier for YAMAHA. Help you enhance great sound quality and fine tune for a more cleaner sound. You can record the music to SD card through the recording function.
Frequency Response
Microphone input to main out
<10Hz -90kHz +1dB/ -1dB
<10Hz -160kHz +1dB/ -3dB
Stereo inputs
1/4\" TRS connector, electronically balanced
Impedance : approx. 20kΩ
Max. input level : +22dBu
EQ mono channels
Low : 80Hz / ±15dB
Mid : 100Hz -8kHz / ±15dB
High : 12kHz / ±15dB
EQ stereo channels
Low : 80Hz / ±15dB
Low mid : 500Hz / ±15dB
High mid : 3kHz / ±15dB
High : 12kHz / ±15dB
Aux sends
1/4\" TS connector, unbalanced
Impedance : approx. 120kΩ
Max. output level : +22dBu
Stereo aux retures
1/4\" TRS connector, electronically balanced
Impedance : approx. 20kΩ balanced /10kΩ unbalanced
Max. input level : +22dBu
Main outputs
XLR connector, electronically balanced and 1/4\" TRS balanced
1622FX only : 1/4\" TS connector, unbalanced
Impedance : approx. 240kΩ symm /120kΩ unbalanced
Max. input level : +28dBu
+22dBu
Headphone outputs
1/4\" TRS connector, unbalanced
Max. input level : +19dBu/ 150Ω (+25dBm)
DSP
Converter : 24-bit Sigma-Delta , 64/128-times oversampling
Sampling rate : 40kHz
Line input
1/4\" TS connector, electronically balanced
Impedance : approx. 20kΩ balanced /10kΩ unbalanced
Gain range : -10 to + 40 dB
Max. output level : 30dBu
Mic E.I.N(22Hz-22kHz)
-0 Ω source resistance : -134dB/ 135.7dB, A-weighted
-50 Ω source resistance : -131dB/ 133.3dB, A-weighted
-150 Ω source resistance : -129dB/ 130.5dB, A-weighted
-Frequency response : <10Hz-150kHz (-1dB)
<10Hz-200kHz (-3dB)
Gain range : +10 to +60 dB
Max. input level : +12dBu + 10dB Gain
Impedance : approx. 2.6kΩ balanced
Signal to noise ratio : 110dB/112dB A-weighted(0dBu in+22dB gain)
Distortion(THD+N) : 0.005%/0.004% A-weighted
Package Include:
1 x Professional Powered Mixer
1 x Power Cord
1 x Manual
