Electrical Specifications:
Operating Temperature: 5°C ~ 40°C
Power Supply: 220VAC, 50Hz
Maximum Output Power:
Working Humidity: 15% ~ 80%
Battery: 7.4V 2200mAh rechargeable lithium battery
Atmospheric Pressure: 86kPa - 106kPa
Product Size:
Product configuration description

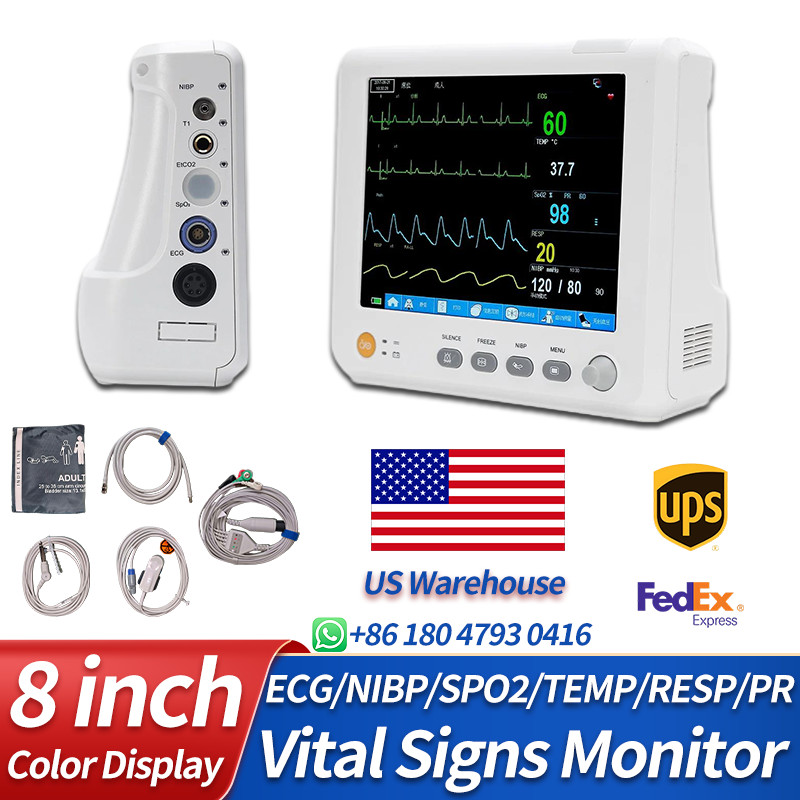

* 8 inch high-resolution color screen
* Exquisite design, suitable for moving operation.
* Various interfaces:standard screen, trend screen, oxyCRG screen, big front screen.
* Real-time S-T segment analysis, pace-maker detection
* Up to 400 groups NIBP list, 60 alarm event records recall,7-day trend chart in storage
* Indication of incorrect manipulation and malfunction analysis
* Capture 2-hour dynamic trend.
* Built-in rechargeable lithium battery, 2-hour working capability
Standard Configuration:
SpO2, PR, NIBP, ECG, RESP, TEMP
Parameter Description
NIBP:
Method: Oscillometry
Modes: Manual/Auto/Continuous
Auto measure time: Adjustable
Measurement rang: 10-270mmHg
ECG:
Lead mode: 3-lead or 5-lead
Lead selection: I, II, III, avR, avL, avF, V
Heart rate range: Adult: 15-300bpm, Pediatric/Neonatal: 15-300bpm
ECG waveform: 2 channels
Accuracy: 1 bpm or 1%
S-T segment detection Measurement range:-0.2mv~2.0mv
Alarm: Yes, audible and visual alarm, alarm events review
SPO2:
Measurement range: 0-100%
Accuracy: 70-100%, 2% 0-69%, unspecified
Pulse rate:
Range: 20-254bpm
Accuracy: 3bpm
Respiration:
Method: RA-LL impedance
Range: Adult:0-120rpm; pediatric/neonatal:0-150rpm
Apnea alarm: Yes
Temperature:
Range: 0-50
Apnea: 0.1
Channel: Dual-Channel
EtCO2 (option, not included, you should buy it if you need):
Measurement Mode: Side-stream or mainstream
Measurement range: EtCO2: 0-99mmHg
Accuracy: CO2 concentration
Apnea alarm: YES
IBP (option, not included, you should buy it if you need):
Channel: 2 channels
Pressure transducer: Sensitivity: 5( mV/V/mmHg)
Transducer sites: ART, PA, CVP, RAP, LAP, ICP
Alarm range: -10~300mmHg
Standard parameter & configuration:
3/5 lead ECG, RESP, SpO2, NIMP, TEMP, PR
