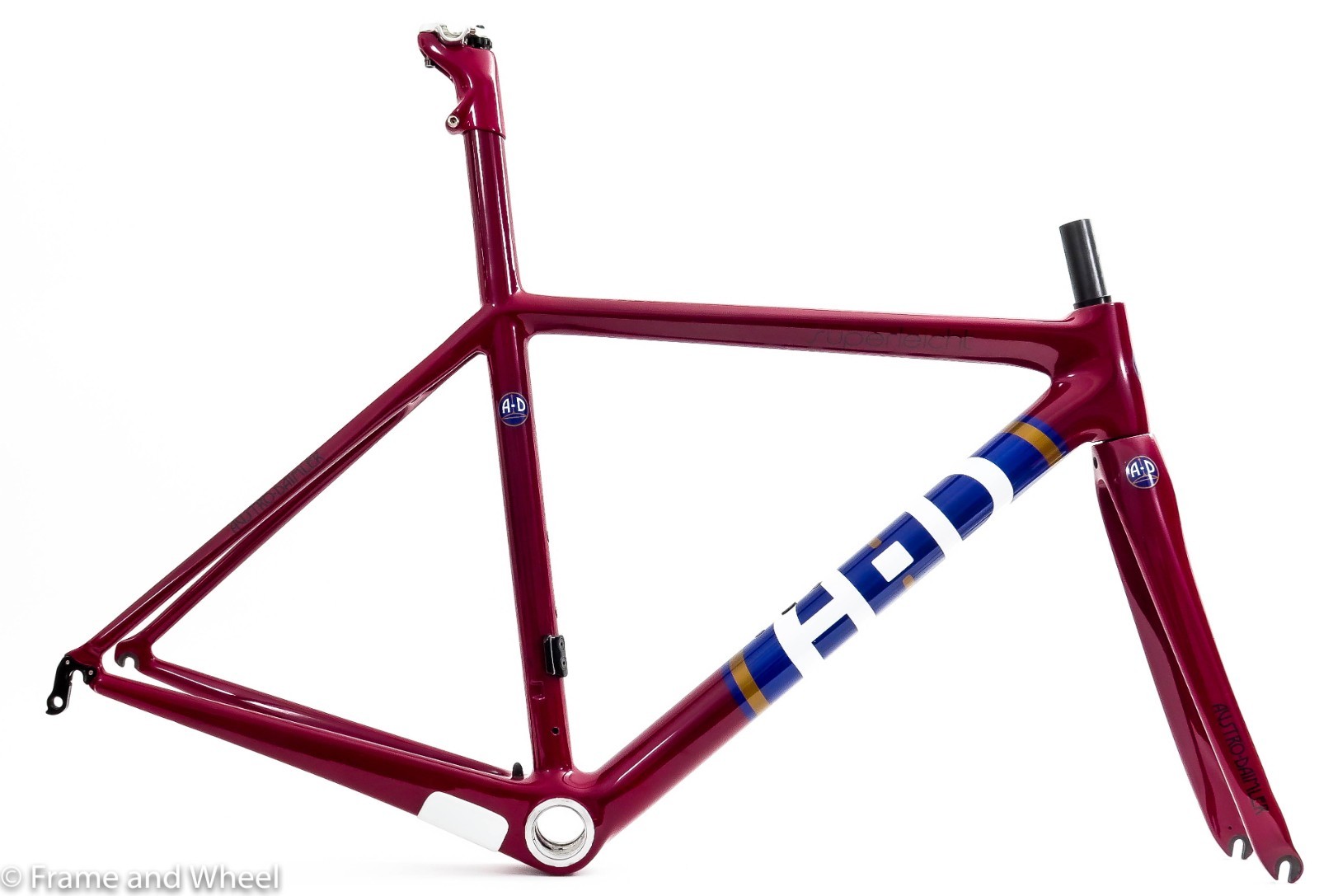

A-D Superleicht Carbon Limited ISP 50cm carbon frameset BB30 road QR rim AXS eTap Di2 only
Review of condition
Di2 compatible only! AXS eTap is easiest! If you want to run Di2, you will have to widen the hole in the chain stay bridge with a drill so that you can run a wire to the front derailleur. No cable stops for mechanical routing. New and unused. In storage. Features full carbon construction, Di2 / eTap AXS compatibility, tapered head tube, BB30 bottom bracket, integrated seat post, seat post topper, light weight, distinctive Burgundy finish and iconic down tube A-D logo. Max tire width 25mm. No head set, bottom bracket bearings or compression plug included.
Specifications:
Brand: A-D
Model: Superleicht Carbon ISP
Size: 50 cm
Color: Burgundy
Frame material: carbon
Fork material: carbon
Steer tube length: 30 cm
Steer tube diameter: 1 1/8 inch to 1 1/4 inch
Steer tube material: carbon
Series: road
Wheel size: 700c
Cable routing: Di2 / SRAM AXS eTap only! No cable stops for mechanical
Max tire width: 25 mm
Brake type: rim brake
Axle type: quick release
Frame and Wheel rating: Very good condition
Following measurements are by Frame and Wheel
Total weight: 1.5 kg / 3 pounds 5 ounces
Effective top tube: 51 cm (c-c)
Center of BB to top of seat post: 71 cm (c-t)
Center of BB to center rails with seat post topper fully inserted on seat tube: 76 cm
Head tube length: 11.5 cm
Following measurements are by A-D Bikes
Size: 50 cm
Seat tube: 50 cm
Effective top tube: 53.0 cm
Head tube length: 11.5 cm
Chain stay length: 41.0 cm
Front center: 58.4 cm
Wheelbase: 98.4 cm
Head tube angle: 71.5 degrees
Seat tube angle: 74.0 degrees
Bottom bracket drop: 6.8 cm
Stack: 51.6 cm
Reach: 37.0 cm
Fork rake: 4.5
Other specifications
Bottom bracket: BB30
Seat post diameter: 35.0 mm
Headset: requires IS42/28.6 IS47/33 headset (not included but available from A-D Bikes).
Drop outs: rear: standard front: na
Rear derailleur hanger: replaceable
Front derailleur hanger: braze-on
Front derailleur hanger clamp diameter: 35 mm
Rear fork spacing: 130 mm
Front fork spacing: 100 mm
