Description

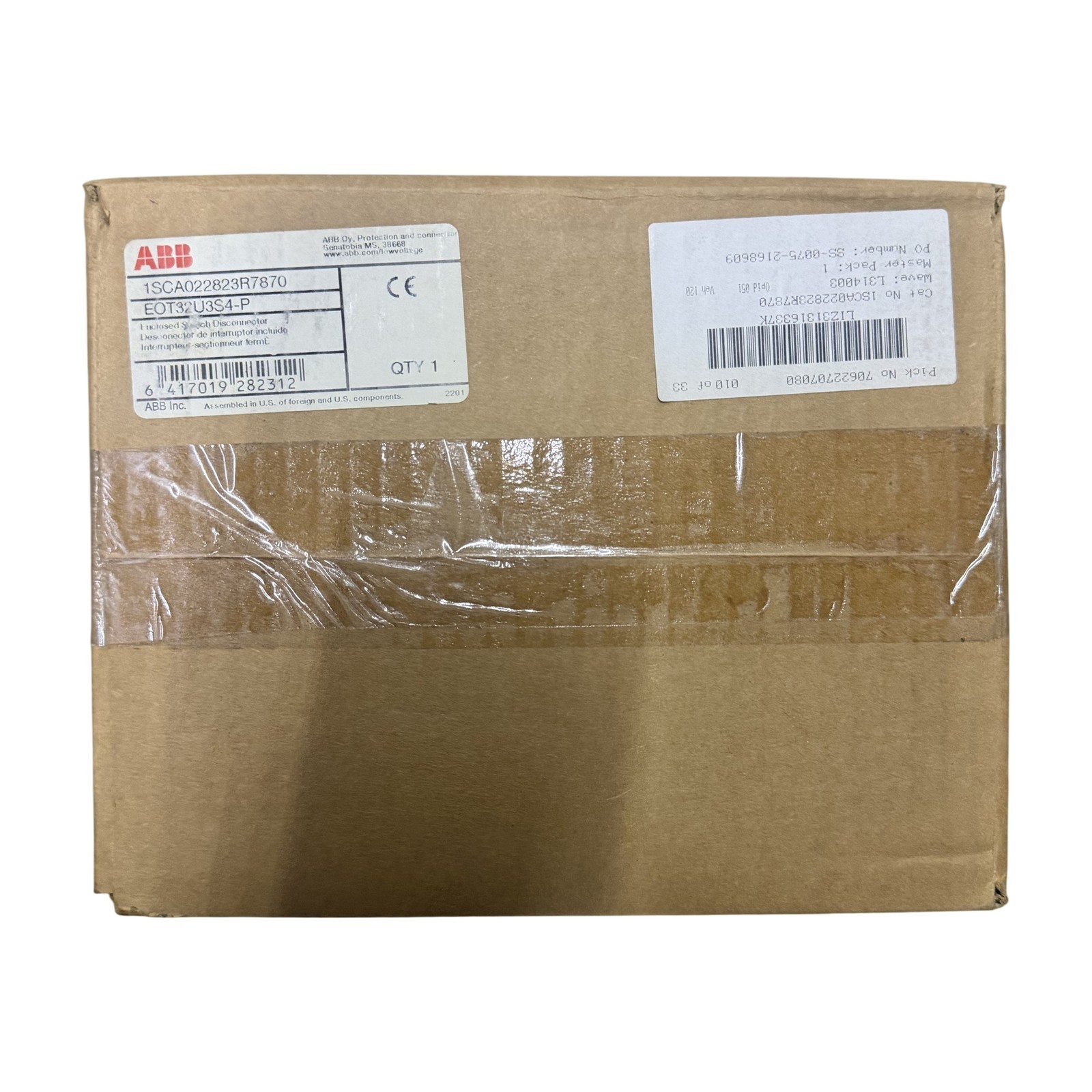

The ABB EOT32U3S4-P is a 40-amp, 600V AC, 3-pole WashDown Enclosed Switch Disconnector rated for NEMA Type 4 and 4X (IP65) environments. It features a stainless steel enclosure suitable for washdown and corrosive locations and is UL 508 listed for industrial control equipment. This unit is new in its original ABB box and includes the OT40F3 rotary disconnect switch mechanism mounted on a DIN rail bracket with ground bar.
Features & NumberEOT32U3S4-PMPN / Cat No.1SCA022823R7870Product TypeEnclosed Switch Disconnector (Disconnect Switch)Amperage40A max.Voltage600V AC max.Poles3-PoleEnclosure TypeNEMA Type 4, 4X (Stainless Steel, WashDown)IP RatingIP65 (IEC 60529)Interrupting CapacityIp 50kAStandardUL 508B, IEC 60947-3, CEUL File3E73Internal Switch MechanismABB OT40F3Conductor Range18-8 AWG, Cu only, 60-75 degrees CTerminal Torque7 lb.in / 0.8 NmMotor DisconnectSuitable as motor disconnectHP Ratings (3PH)10 HP @ 200-240V, 20 HP @ 415V, 25 HP @ 480-600VAssembledU.S. of foreign and U.S. componentsColorStainless Steel / Black & Red handleWhat's Included
- ABB EOT32U3S4-P Enclosed Switch Disconnector (Qty 1)
- OT40F3 3-pole rotary switch mechanism on DIN rail mount
- Ground bar / earth terminal
- Original ABB cardboard box
Compatibility
Compatible with 3-phase industrial motor disconnect applications up to 40A / 600V AC. Suitable for washdown and corrosive environments requiring NEMA Type 4 or 4X enclosures. Works with 18-8 AWG copper conductors and is compatible with Class RK5 or Class J/T fuse protection per UL requirements.
